2007 Suzuki GSX-R750 Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 2007 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

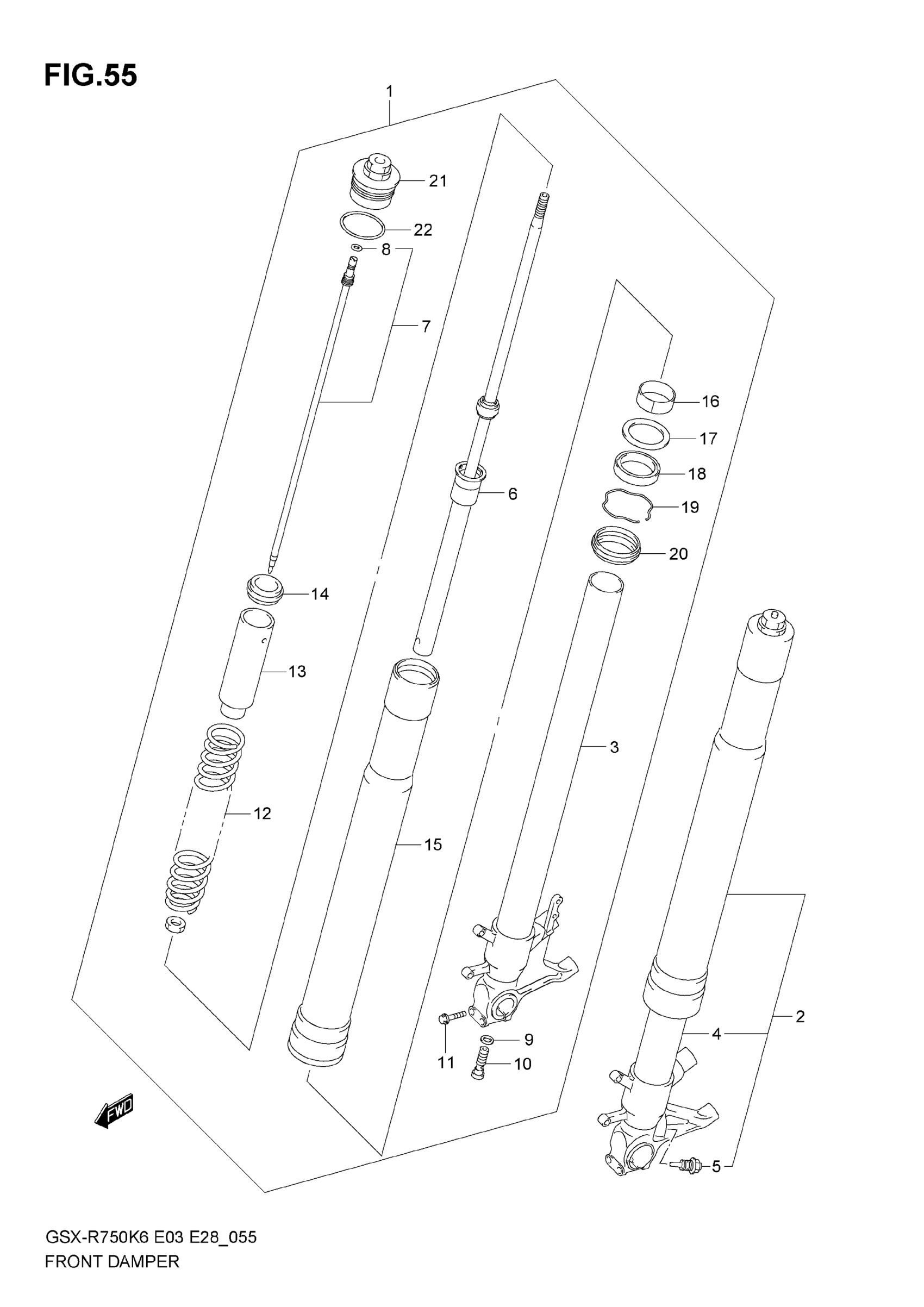

2007 Suzuki GSX-R750 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-02H00

1
Out of stock

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 22

51104-02H00

1
Out of stock

3

TUBE, INNER RH

51110-02H00

1
Out of stock

4

TUBE, INNER LH

51120-02H00

1
Out of stock

5

PIECE, ADJUSTER LOWER

51830-01H00

2
Out of stock

6

ROD, DAMPER

52110-01H00

2
Out of stock

7

PUSH ROD

51821-01H00

2
Out of stock

8

O RING

09280-03002

2
Out of stock

9

WASHER (10X15X1.5)

09161-10009

2
Out of stock

10

BOLT

51147-17C00

2
Out of stock

11

BOLT, AXLE HOLDER

51166-35F00

4

$7.47

In stock

12

SPRING

51171-02H00

2
Out of stock

13

SPACER, SPRING

51176-29G00

2
Out of stock

14

.GUIDE,SPRING UPR

51175-22D00

2
Out of stock

15

TUBE, OUTER

51131-02H00

2
Out of stock

16

BUSH, GUIDE

51152-17G00

2
Out of stock

17

SPACER, SEAL

51168-01H00

2
Out of stock

18

SEAL, OIL

51153-01H00

2
Out of stock

19

RING, STOPPER

51556-38B00

2
Out of stock

20

SEAL, DUST

51173-01H00

2
Out of stock

21

BOLT, FORK

51189-01H00

2
Out of stock

22

..O-RING,FORK BOLT

51187-01H00

2
Out of stock
