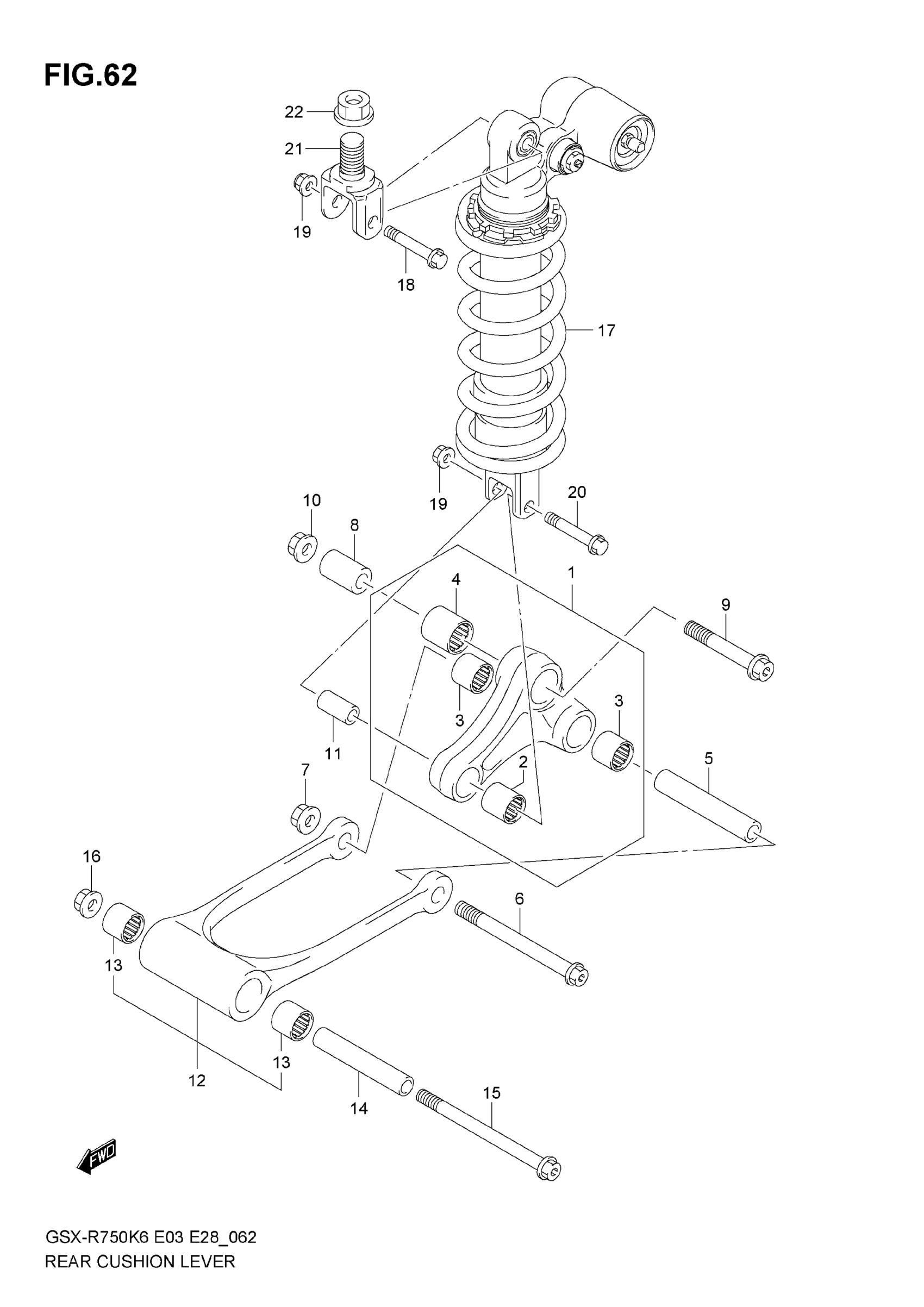

Suzuki GSX-R750 (2007) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET,RR CU | Includes Item(s) 2 - 4 This part replaces 62601-01850.

62601-01853

$442.17

2

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$19.09

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$19.55

4

.BEARING This part replaces 09263-20074.

09263-20116

$28.11

5

SPACER, LOWER

62646-08G00

$41.50

6

BOLT, LOWER

62621-42E10

$30.12

7

NUT This part replaces 09159-12056-A05.

09159-12056

$6.65

8

SPACER, UPPER

62317-27C10

$15.78

9

BOLT, FRONT This part replaces 62658-35F00-A05.

62658-35F00

$45.70

10

NUT This part replaces 09159-12056-A05.

09159-12056

$6.65

11

SPACER, FRONT

62684-40A10

$11.44

12

ROD SET,RR CUSH | Includes Item(s) 13 This part replaces 62601-01860.

62601-01861

Unavailable

13

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$19.55

14

SPACER, ROD

62626-33D00

$19.40

15

BOLT, ROD

62621-01H00

Unavailable

16

NUT This part replaces 09159-12056-A05.

09159-12056

$6.65

17

ABSORBER ASSY, REAR SHOCK | E3,E33

62100-02H10-163

Unavailable

17

ABSORBER ASSY, REAR SHOCK | E28

62100-02H00-163

Unavailable

18

BOLT (10X55) This part replaces 09103-10143-A05.

09103-10143

$4.92

19

NUT, REAR SWGARM BRACKET This part replaces 09159-10058-A05.

09159-10115

$3.21

20

BOLT (10X55) This part replaces 09103-10143-A05.

09103-10143

$4.92

21

BRACKET, ABSORBER

62993-35F00

Unavailable

22

NUT This part replaces 09159-20006-A05.

09159-20006

$34.67
