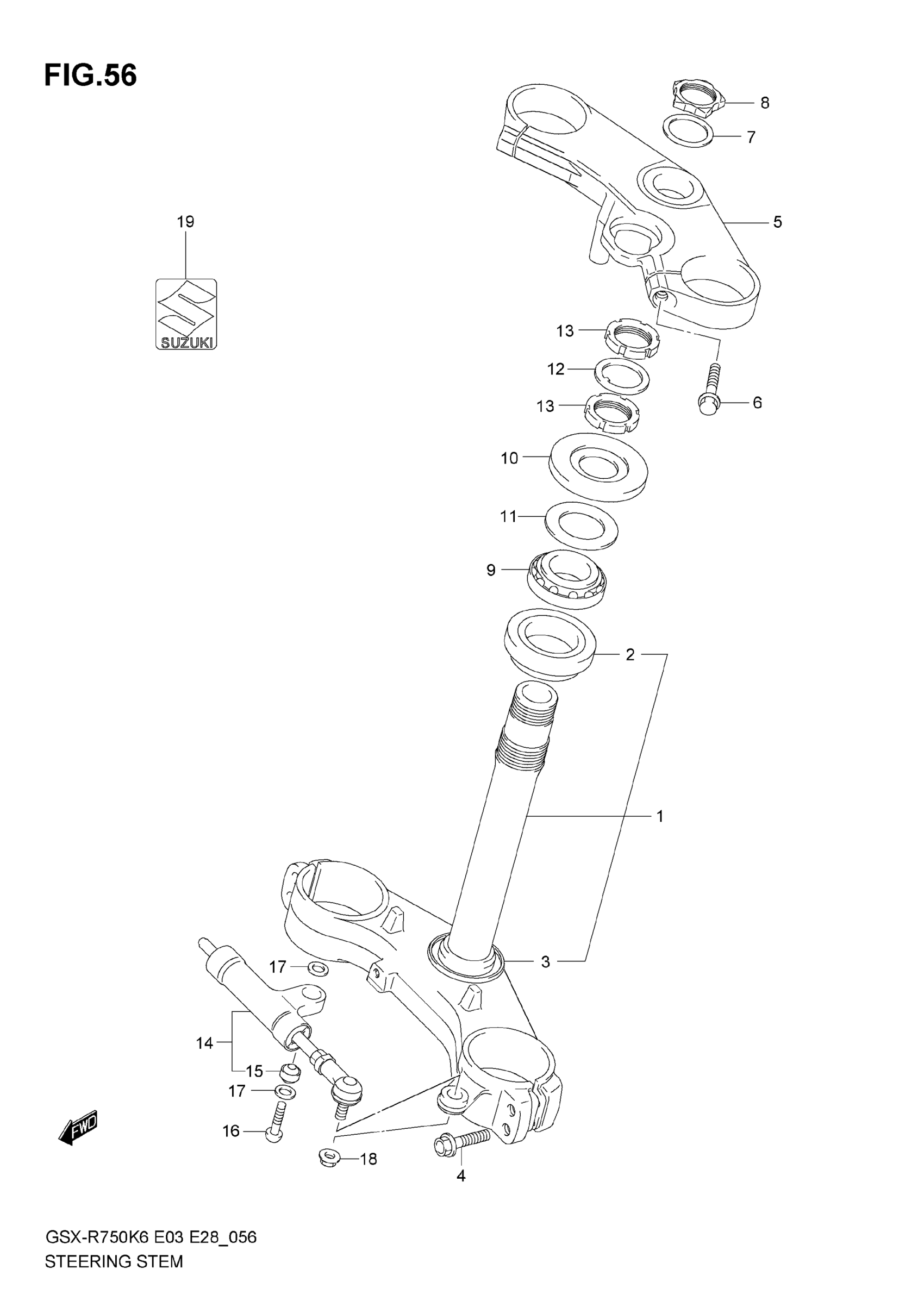

Suzuki GSX-R750 (2007) STEERING STEM Diagram

#

Description
Price

1

STEM,STEERING | Includes Item(s) 2 - 3 This part replaces 51410-01H00.

51410-01H10

$777.82

2

BEARING (30X55X17)

09267-30010

$43.41

3

SEAL, STEM LOWER

51644-12C00

$8.65

4

BOLT,HOLDER AXLE (8X40)

51328-27E30

$4.11

5

HEAD,STEERING STEM

51311-01H00

$468.83

6

BOLT

51147-01H00

$43.05

7

WASHER,STEM HEAD

51354-01H00

$7.06

8

NUT

51353-01H00

$32.73

9

BEARING (30X55X17)

09267-30010

$43.41

10

SEAL, STEM UPPER DUST This part replaces 51643-41G00-A08.

51643-41G10

$12.17

11

SEAL, UPPER DUST

51644-12C00

$8.65

12

WASHER, STEM This part replaces 51641-33E00-A05.

51641-33E00

$5.67

13

NUT, STEM

51631-33E00

$21.64

14

DAMPER ASSY, STEERING | Includes Item(s) 15

51750-01H10

Unavailable

15

BEARING (8X17.5X11)

09269-08003

$46.80

16

BOLT (8X35) This part replaces 09106-08130-A08.

09106-08130

$4.07

17

SEAL, DUST

64339-14101

$7.49

18

NUT

08319-3108A

$2.31

19

EMBLEM, "S"

68281-35F00

$15.48
