2005 Suzuki GSX-R750 Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2005 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

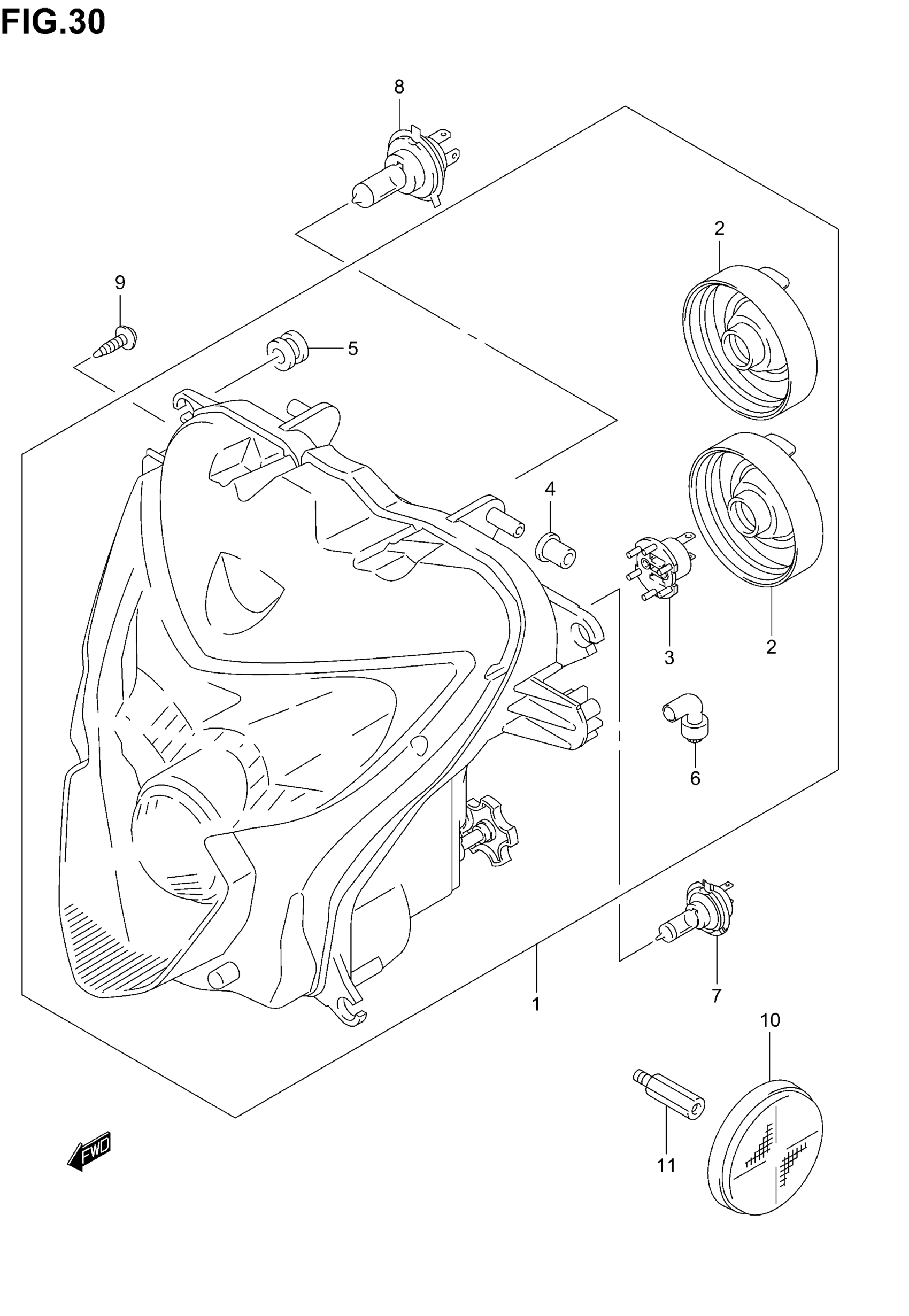

2005 Suzuki GSX-R750 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 6

35100-29G30-999

1
Out of stock

2

COVER, SOCKET

35179-64G00

2
Out of stock

3

ADAPTER ASSY

34175-33E50

1
Out of stock

4

CUSHION This part replaces 09320-07010.

09320-07019

2
Out of stock

5

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

4
Out of stock

6

TUBE ASSY

35165-33E00

2
Out of stock

7

BULB (12V55W H7) | PURCHASE LOCALLY

09471-12188

1
Out of stock

8

BULB (12V60/55W)

09471-12182

1
Out of stock

9

SCREW, HEADLAMP

09136-05062

6
Out of stock

10

REFLEX REFLECTOR ASSY, FR

35950-14A00

2
Out of stock

11

BOLT

09119-06104

2
Out of stock
