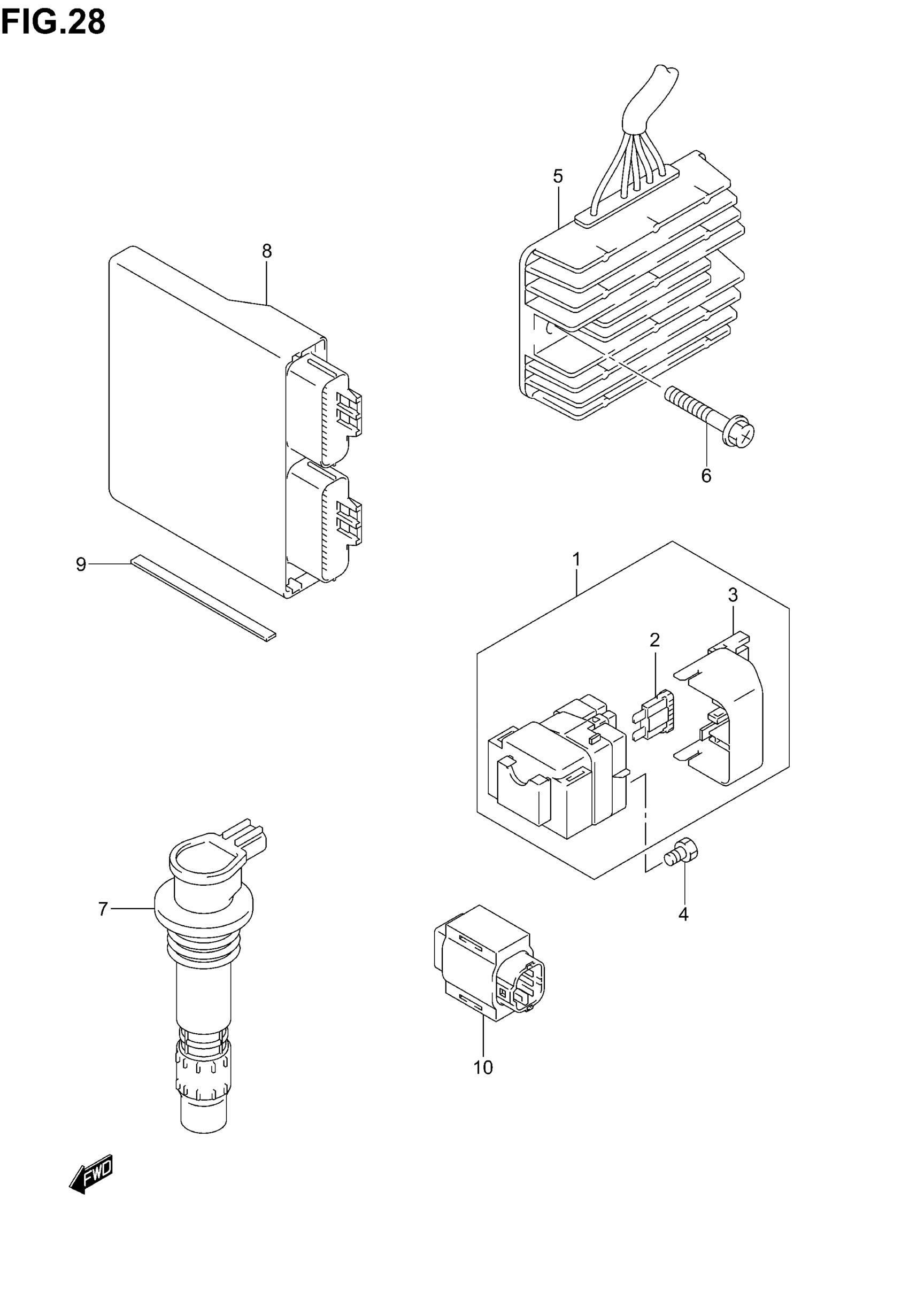

Suzuki GSX-R750 (2005) ELECTRICAL Diagram

#

Description

Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 2 - 3

31800-35F00

$95.29

2

FUSE (30A)

09481-30101

$2.35

3

COVER, STARTER

31861-26E00

$4.09

4

BOLT (6X8)

09128-06013

$1.28

5

RECTIFIER ASSY This part replaces 32800-33E20.

32800-33E21

$250.53

6

SCREW This part replaces 02162-06253.

02162-0625A

$1.68

7

COIL ASSY,IGNITION This part replaces 33410-35F10.

33410-35F11

$135.79

8

CONTROL UNIT, FI

32920-30G20

Unavailable

9

CUSHION, FI CONTROL | 10X130X2

33652-42F00

Unavailable

10

SENSOR ASSY, FUEL CUT

33960-06G00

$90.16
