2005 Suzuki GSX-R750 Handle Switch Diagram

← All diagrams

Find the part on the Handle Switch diagram for your 2005 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

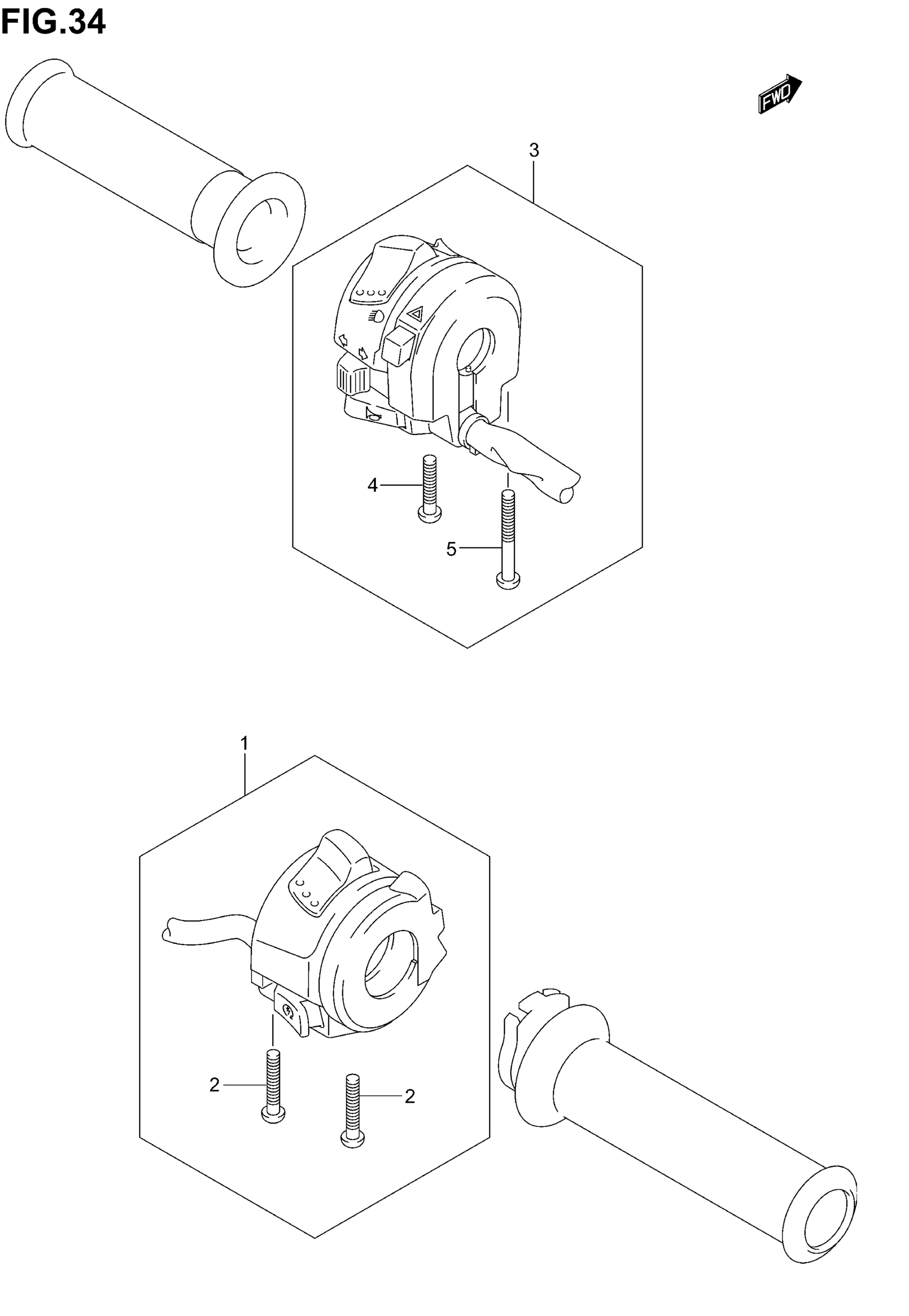

2005 Suzuki GSX-R750 Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH ASSY, HANDLE RH | MODEL K4

37200-29G30

1
Out of stock

1

SWITCH ASSY, HANDLE RH | MODEL K5; Includes Item(s) 2

37200-29G80

1
Out of stock

2

2

$2.23

In stock

3

SWITCH ASSY,HAN | Includes Item(s) 4 - 5 This part replaces 37400-29G10.

37400-29G12

1
Out of stock

4

SCREW, PIVOT This part replaces 02112-05253.

02112-0525A

1
Out of stock

5

SCREW This part replaces 02112-05403.

02112-0540B

1
Out of stock
