Description

Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:78 This part replaces 21200-35820.

21200-35830

$567.03

2

WASHER (25X54X2.4)

09160-25073

$15.75

3

BEARING (35X40X29.8)

09263-35036

$30.06

4

HUB, CLUTCH SLEEVE

21410-35F00

$118.68

5

BOLT, CLUTCH SPRING

21412-35F00

$3.35

6

SPRING, CLUTCH

21413-35F10

$6.80

7

PLATE, CLUTCH DRIVE NO.1 | T:2.8

21441-31E50

$22.53

8

PLATE, CLUTCH DRIVE NO.2 | T:2.8

21441-31E60

$22.44

9

PLATE, CLUTCH DRIVE NO.3 | T:2.9

21442-31E21

$42.82

10

PLATE, CLUTCH DRIVEN,NO.1 | T:1.6

21451-31E00

$10.08

11

PLATE, CLUTCH DRIVEN NO.2 | T:2.0

21451-31E10

$10.79

12

DISC, CLUTCH PRESSURE

21462-35F00

$69.27

13

SEAT, WAVE WASHER

21471-31E20

$13.97

14

WASHER, CLUTCH PLATE WAVE

21472-02F00

$21.28

15

NUT, CLUTCH SLEEVE HUB

09159-24010

$12.27

16

.WASHER (25X50X2.5) | 25X50X2.5

09160-25056

$10.94

17

WASHER, CLUTCH WAVE | 24.2X35X2

09164-24006

$3.52

18

WASHER, SLEEVE HUB NUT | 25X38X1.0

09181-25223

$3.00

19

ROD, CLUTCH PUSH RH

23110-27A00

$20.75

20

ROD, CLUTCH PUSH LH

23111-35F00

$12.73

21

PIECE, CLUTCH PUSH

23121-31E00

$23.54

22

SCREW ASSY, CLUTCH RELEASE | Includes Item(s) 23 - 24

23200-35F01

$65.07

23

SCREW (6X25)

09134-06010

$2.90

24

.NUT

08310-00067

$1.91

25

WASHER, CLUTCH PUSH | 15.5X28X1

09160-15045

$3.62

26

BEARING, CLUTCH PUSH | 15X28X2

09263-15003

$7.70

27

SEAL, CLUTCH PUSH ROD | 6X34X1.0

09285-06011

$7.67

28

SPRING, CLUTCH RELEASE

09443-09051

$3.50

29

BOLT This part replaces 01550-06163.

01550-0616A

$2.01

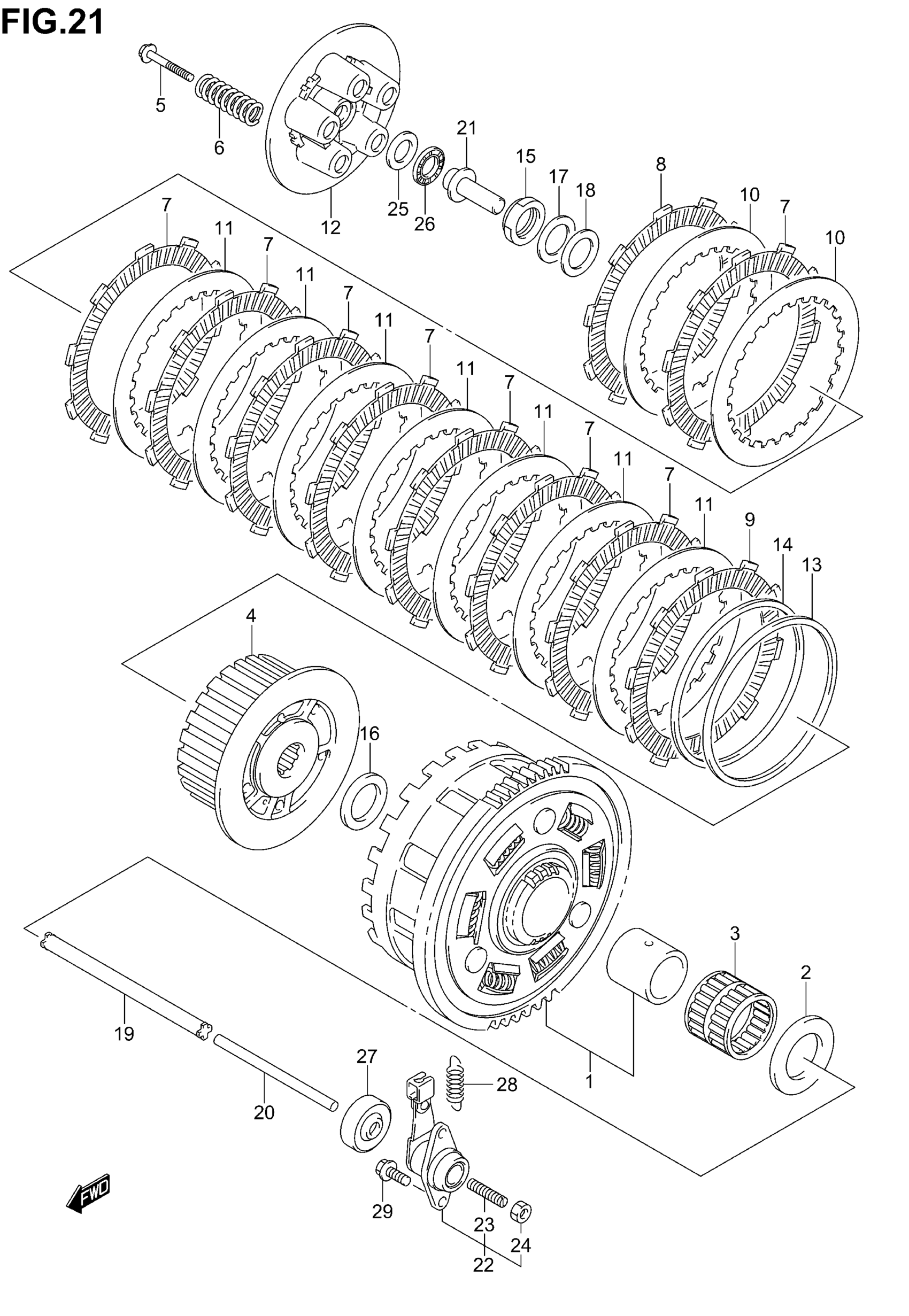

Suzuki GSX-R750 (2005) CLUTCH Diagram
