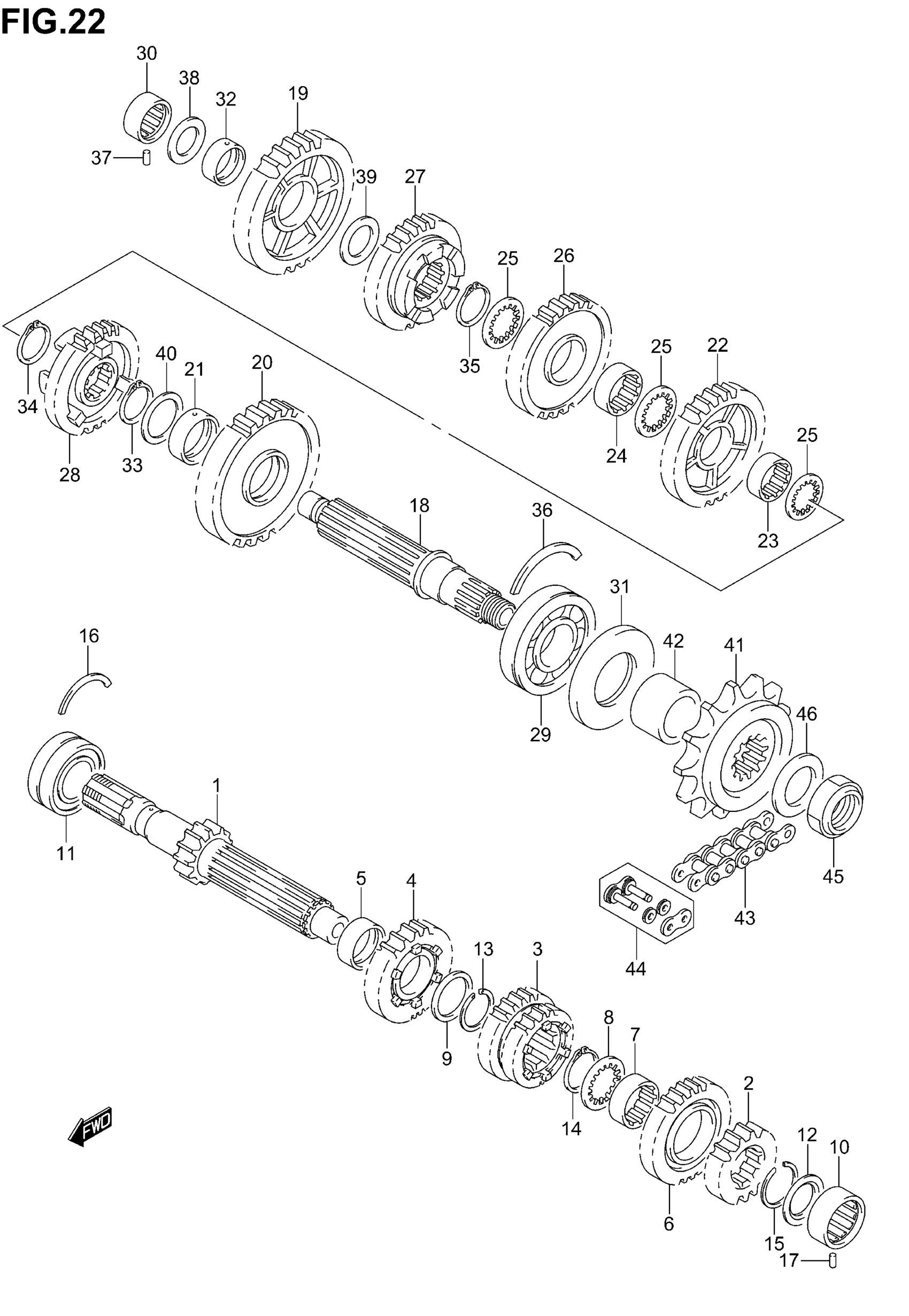

Suzuki GSX-R750 (2005) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,CNTR,NT:1 This part replaces 24120-35F00.

24120-35F10

$338.35

2

GEAR,2ND DRIVE (NT:19)

24221-35F00

$131.95

3

GEAR,3RD & 4TH DRIVE This part replaces 24231-35F00.

24231-35F20

$158.10

4

GEAR, 5TH DRIVE (NT:23) This part replaces 24251-35F20.

24251-35F21

$179.55

5

BUSH 5TH DRIVE GEAR

24252-35F00

$27.88

6

GEAR, 6TH DRIVE (NT:22) This part replaces 24261-35F01.

24261-35F02

$176.20

7

BUSH, 6TH DRIVE GEAR

24262-35F00

$32.30

8

WASHER, 6TH DRIVE

09167-27003

$7.38

9

WASHER, 5TH DRIVE | 27X36X2.5

09181-27014

$6.87

10

BEARING, CNTR LH | 20X34X13.5

09263-20087

$54.53

11

BEARING, CNTR RH | 25X52X20.6

09267-25013

$115.55

12

SEAL, OIL (20X31.2X2.7)

09285-20006

$5.88

13

CIRCLIP, 5TH DRIVE

09380-27006

$2.73

14

CIRCLIP, 6TH DRIVE

09380-27006

$2.73

15

CIRCLIP, 2ND DRIVE

09380-27004

$3.33

16

C RING, CNTR RH

09390-58001

$3.72

17

PIN, COUNTER SHAFT, LH

09261-06003

$1.49

18

SHAFT, DRIVE This part replaces 24131-35F00.

24131-35F01

$352.00

19

GEAR,1ST DRIVEN (NT:39) This part replaces 24311-35F10.

24311-35F20

$180.58

20

GEAR,2ND DRIVEN (NT:39) This part replaces 24321-35F10.

24321-35F11

$152.71

21

BUSH, 2ND DRIVEN

24322-35F00

$23.28

22

GEAR,3RD DRIVEN (NT:37)

24331-35F10

$187.45

23

BUSH, 3RD DRIVEN

24332-35F00

$32.30

24

BUSH, 4TH DRIVEN GEAR

24332-35F00

$32.30

25

WASHER, 3RD & 4TH DRIVEN

24333-02F00

$6.62

26

GEAR,4TH DRIVEN (NT:29)

24341-35F10

$192.08

27

GEAR,5TH DRIVEN (NT:30)

24351-35F10

$187.45

28

GEAR, 6TH DRIVEN (NT:26)

24361-35F10

$190.30

29

BEARING, DRIVE SHAFT, LH | 28X70X18

09262-28025

$163.68

30

BEARING, DRIVE SHAFT, RH | 20X34X13.5

09263-20087

$54.53

31

SEAL, DRIVE SHAFT ,OIL | 36X70X6

09283-36008

$19.21

32

BUSH, 1ST DRIVEN GEAR | 22X26X9

09300-22008

$16.03

33

CIRCLIP, 2ND DRIVEN GEAR

09380-27006

$2.73

34

CIRCLIP, 3RD DRIVEN GEAR

09380-27006

$2.73

35

CIRCLIP, 4TH DRIVEN GEAR

09380-27006

$2.73

36

C RING, DRIVE SHAFT, LH

09390-70001

$10.62

37

PIN, DRIVE SHAFT, RH

09261-06003

$1.49

38

WASHER, 1ST DRIVEN RH | 20X34X1.0

09181-20251

$2.77

39

WASHER, 1ST DRIVEN LH | 22X34X1.0

09181-22223

$2.85

40

WASHER, 2ND DRIVEN | 27X36X1.0

09160-27008

$4.00

41

SPROCKET,ENGINE This part replaces 27510-20A20.

27510-20A22

$89.07

42

SPACER,ENGINE SPROCKET This part replaces 27531-35F00.

27531-35F01

$34.83

43

CHAIN ASSY (RK525R0Z5,110L)

27600-33E20-110

$293.27

44

JOINT SET | OPT

27620-33E20

Unavailable

45

NUT, ENGINE SPROCKET

09159-20004

$14.15

46

WASHER (25X41X3)

09160-25009

$4.84
