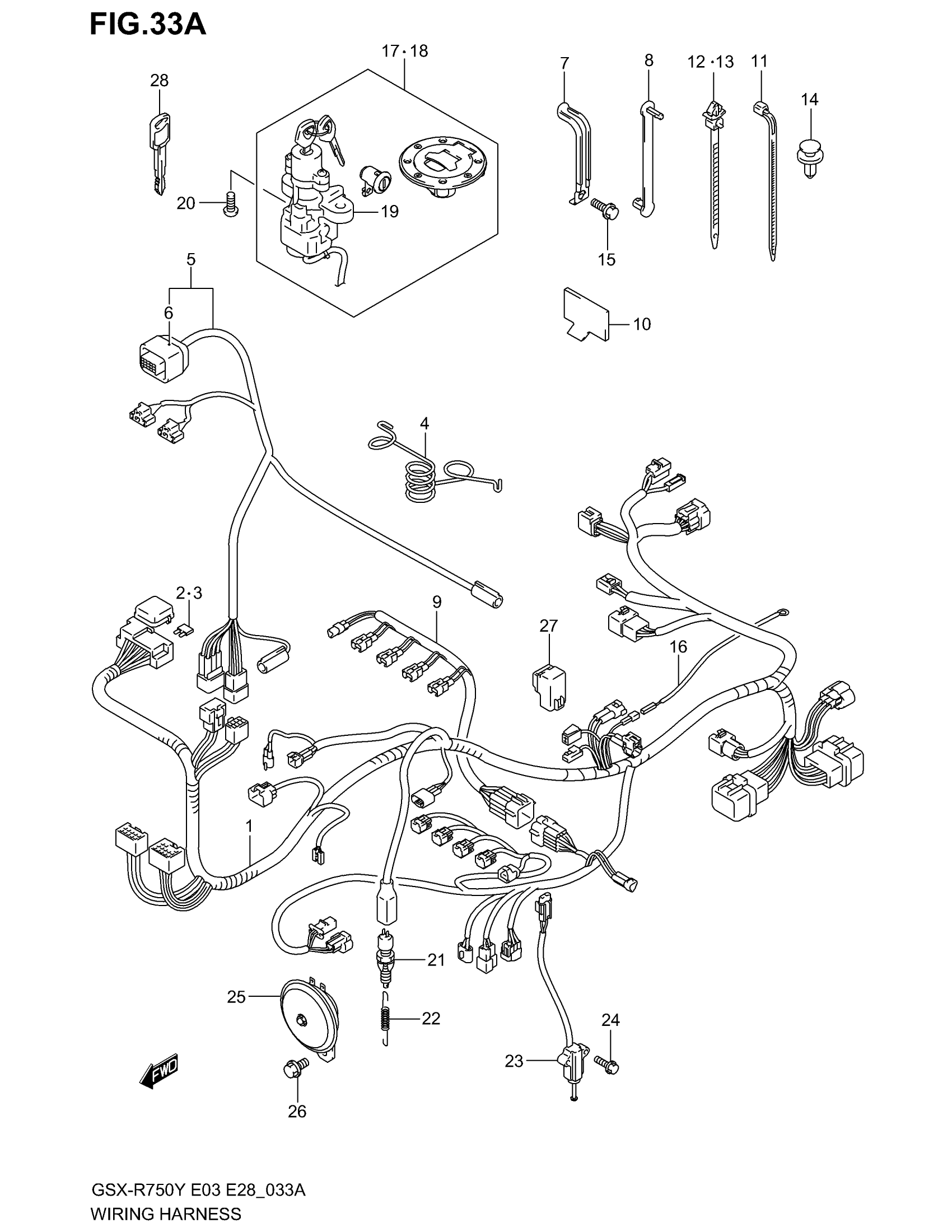

Suzuki GSX-R750 (2003) WIRING HARNESS (MODEL K2) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1 | Includes Item(s) 2 - 3

36610-35F40

$1,124.22

2

FUSE (10A)

09481-10501

$2.07

3

FUSE (15A)

09481-15501

$2.07

4

GUIDE, WIRING HARNESS

36619-40F00

Unavailable

5

HARNESS, WIRING NO.2 | Includes Item(s) 6

36620-40F40

Unavailable

6

COVER, SPEEDOMETER

36618-35F00

$11.37

7

CLAMP This part replaces 36651-35F00.

36651-35F02

Unavailable

8

CLAMP, WIRING HARNESS

36651-48E00

$3.67

9

WIRE, INJECTOR LEAD

36859-40F00

Unavailable

10

PROTECTOR, WIRING HARNESS

36920-35F00

Unavailable

11

CLAMP This part replaces 09404-06431.

09404-06039

$1.73

12

CLAMP (L:235)

09407-25401

$4.21

13

CLAMP (L:90)

09407-11402

$1.81

14

CLAMP This part replaces 09407-14408.

09407-17402

$4.28

15

BOLT This part replaces 01550-05123.

01550-0512B

$3.12

16

WIRE, OIL PRESSURE LEAD

36851-35F00

Unavailable

17

LOCK SET This part replaces 37000-35840.

37000-35842

$497.88

18

LOCK SET | E33; Includes Item(s) 19

37000-35850

Unavailable

19

LOCK ASSY,STEER This part replaces 37100-35F20.

37100-35F21

$216.08

20

SCREW

09139-08016

$3.04

21

SWITCH ASSY, STOP LAMP

37740-24A00

$16.66

22

SPRING

09443-06042

$4.10

23

SWITCH ASSY,SIDE STAND This part replaces 37840-35F00.

37840-35F02

$45.34

24

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

25

HORN ASSY

38500-08F10

Unavailable

26

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.31

27

RELAY ASSY, FUEL PUMP

38740-24X50

$41.38

28

KEY, BLANK | OPT

37146-33E00

$19.42
