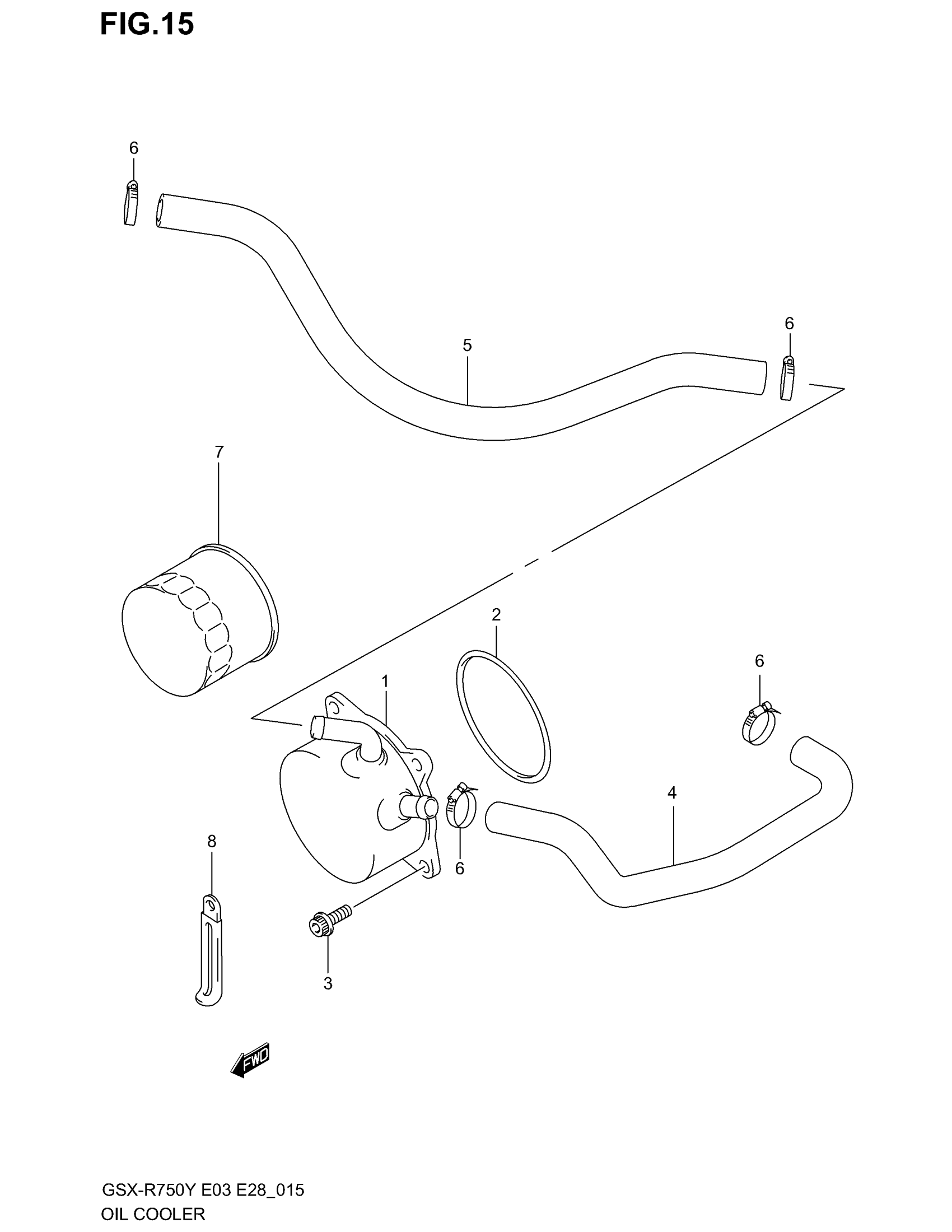

Suzuki GSX-R750 (2003) OIL COOLER Diagram

#

Description

Price

1

COOLER ASSY, OIL | MODEL Y/K1/K2 This part replaces 16600-35F00.

16600-35F10

Unavailable

1

COOLER ASSY, OIL | MODEL K3

16600-35F10

Unavailable

2

O RING (D:3.1,ID:63.9)

09280-64003

$5.24

3

BOLT

09106-06099

$2.80

4

HOSE, OIL COOLER, WATER IN

16461-35F00

$26.92

5

HOSE, OIL COOLER, WATER OUT

16471-35F00

Unavailable

6

CLAMP

09402-22511

$6.58

7

FILTER, ENGINE OIL This part replaces 16510-34E00.

16510-07J00

$12.35

8

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.81
