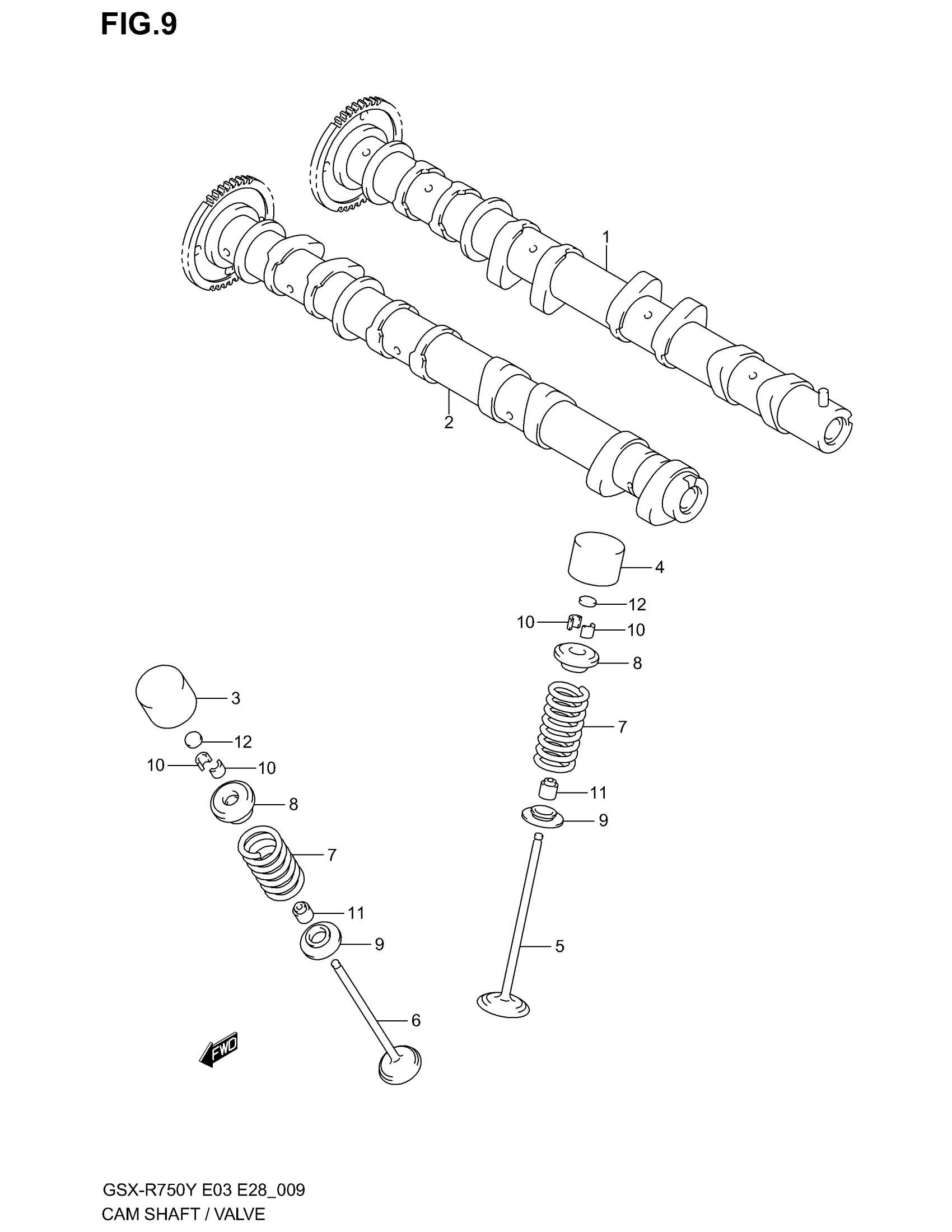

Suzuki GSX-R750 (2003) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE

12710-35F00

Unavailable

2

CAM SHAFT, EXHAUST

12720-35F00

Unavailable

3

TAPPET, EXHAUST

12891-35F00

$58.09

4

TAPPET This part replaces 12891-17E00.

12891-47H00

$62.64

5

VALVE, INTAKE

12911-35F00

$66.05

6

VALVE, EXHAUST

12912-35F00

$89.33

7

SPRING, VALVE

12921-35F00

$18.42

8

RETAINER,VALVE SPRING | MODEL Y/K1 This part replaces 12931-35F00.

12931-35F10

$21.32

8

RETAINER,VALVE SPRING | MODEL K2/K3

12931-35F10

$21.32

9

SEAT, VALVE SPRING | MODEL Y/K1/K2

12933-35F00

Unavailable

9

SEAT,VALVE SPRING | MODEL K3

12933-35F10

$5.56

10

COTTER,VALVE

12932-05C00

$2.12

11

OIL SEAL

09289-04003

$6.58

12

SHIM, TAPPET (T:1.20)

12892-05C00-120

$13.10

12

SHIM, TAPPET (T:1.25)

12892-05C00-125

$13.35

12

SHIM, TAPPET (T:1.30)

12892-05C00-130

$7.35

12

SHIM, TAPPET (T:1.35)

12892-05C00-135

$9.48

12

SHIM, TAPPET (T:1.40)

12892-05C00-140

$9.48

12

SHIM, TAPPET (T:1.45)

12892-05C00-145

$9.29

12

SHIM, TAPPET (T:1.50)

12892-05C00-150

$13.35

12

SHIM, TAPPET (T:1.55)

12892-05C00-155

$9.12

12

SHIM, TAPPET (T:1.60)

12892-05C00-160

$9.12

12

SHIM, TAPPET (T:1.65)

12892-05C00-165

$9.12

12

SHIM, TAPPET (T:1.70)

12892-05C00-170

$13.10

12

SHIM, TAPPET (T:1.75)

12892-05C00-175

$9.29

12

SHIM, TAPPET (T:1.80)

12892-05C00-180

$12.85

12

SHIM, TAPPET (T:1.85)

12892-05C00-185

$13.35

12

SHIM, TAPPET (T:1.90)

12892-05C00-190

$13.35

12

SHIM, TAPPET (T:1.95)

12892-05C00-195

$13.35

12

SHIM, TAPPET (T:2.00)

12892-05C00-200

$13.10

12

SHIM, TAPPET (T:2.05)

12892-05C00-205

$13.35

12

SHIM, TAPPET (T:2.10)

12892-05C00-210

$13.35

12

SHIM, TAPPET (T:2.15)

12892-05C00-215

$13.35

12

SHIM, TAPPET (T:2.20)

12892-05C00-220

$13.35

13

SHIM SET, TAPPET | OPT NOT SHOWN; Includes Item(s) 14 This part replaces 12800-05820.

12800-05830

$1,322.82

14

CASE, TAPPET SHIM | OPT NOT SHOWN

99000-69491

Unavailable
