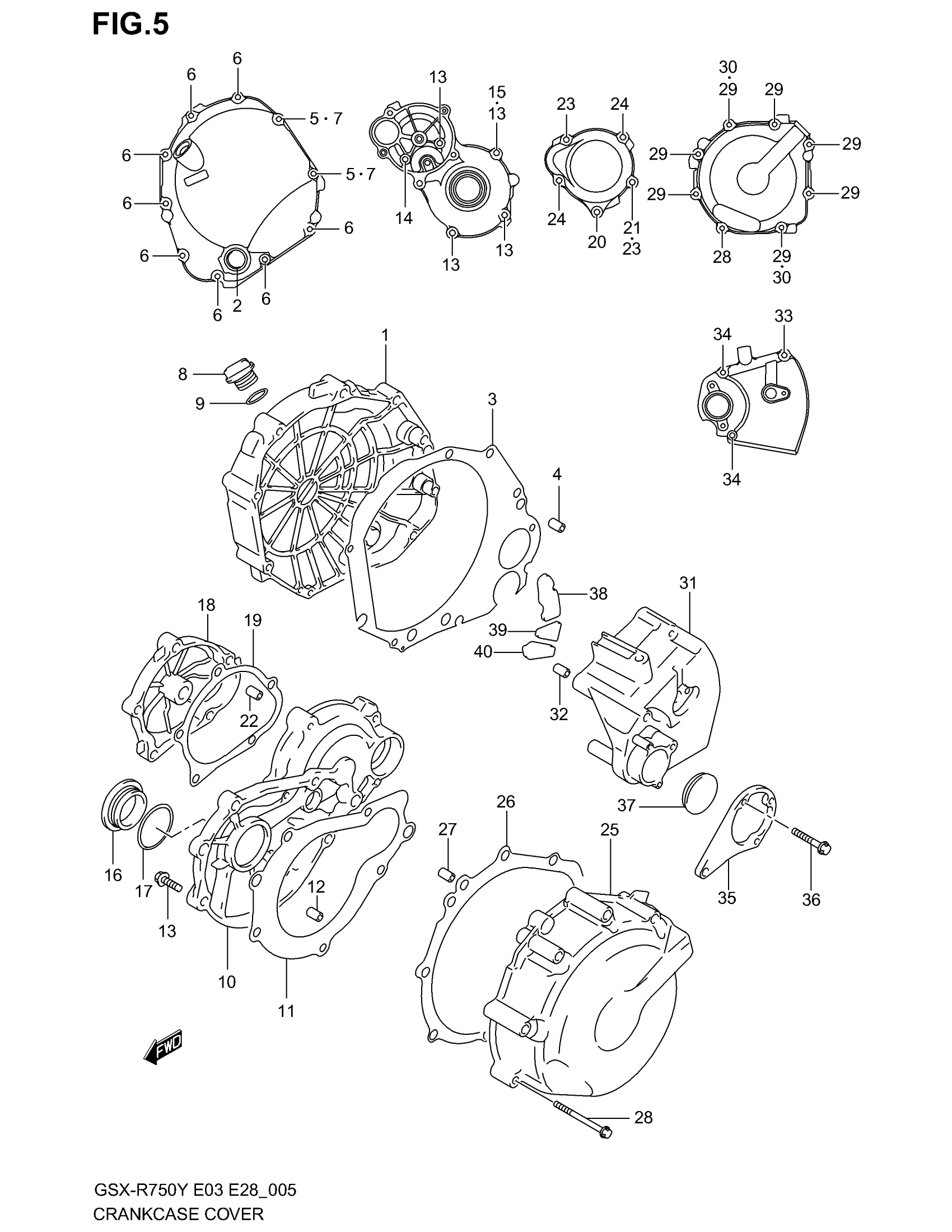

Suzuki GSX-R750 (2003) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-35F00

Unavailable

2

LENS, OIL LEVEL

11971-33210

$16.66

3

.GASKET, CLUTCH COVER | MODEL Y/K1 This part replaces 11482-35F00.

11482-40F10

$14.36

3

.GASKET, CLUTCH COVER | MODEL K2/K3 This part replaces 11482-40F00.

11482-40F10

$14.36

4

PIN

04211-09189

$1.64

5

GASKET (5.8X13X1.2)

09168-06023

$2.01

6

BOLT This part replaces 07120-06303.

07120-0630B

$3.19

7

BOLT This part replaces 07120-06403.

07120-0640B

$3.04

8

.PLUG | MODEL Y This part replaces 09259-20008.

09259-20008-XC0

$6.76

8

PLUG, ENGINE OIL FILTER | MODEL K1/K2/K3

11971-12C51

$6.08

9

O RING (D:3.1,ID:16.8)

09280-17003

$1.64

10

COVER, STARTER CLUTCH This part replaces 11381-35F00.

11381-35F01

$197.15

11

GASKET

11491-33E02

$7.99

12

PIN

04211-09149

$1.64

13

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

$2.50

14

BOLT This part replaces 07120-06353.

07120-0635B

$3.10

15

GASKET (5.8X13X1.2)

09168-06023

$2.01

16

PLUG, SHAFT HOLE | MODEL Y/K1

09259-36016-20H

$12.45

16

PLUG, SHAFT HOLE | MODEL K2/K3

09259-36021

$12.45

17

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

18

CAP, STARTER IDLE GEAR

11382-33E00

$100.72

19

GASKET

11492-33E00

$6.61

20

BOLT This part replaces 07120-06553.

07120-0655B

$4.45

21

GASKET, BOLT (5.8X13X1.2)

09168-06023

$2.01

22

PIN

04211-09149

$1.64

23

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

$2.50

24

BOLT This part replaces 07120-06353.

07120-0635B

$3.10

25

COVER, MAGNETO | MODEL Y/K1 This part replaces 11351-35F00.

11351-35F02

$238.13

25

COVER, MAGNETO | MODLE K2/K3

11351-35F02

$238.13

26

GASKET

11483-35F00

$10.13

27

PIN

04211-09149

$1.64

28

BOLT This part replaces 07120-06303.

07120-0630B

$3.19

29

BOLT This part replaces 07120-06453.

07120-0645B

$3.08

30

GASKET (5.8X13X1.2)

09168-06023

$2.01

31

COVER, ENGINE SPROCKET | MODEL Y/K1

11361-35F00

Unavailable

31

COVER, ENGINE SPROCKET | MODEL K2/K3

11361-35F10

$328.28

32

PIN

04211-09129

$1.64

33

BOLT This part replaces 07120-06653.

07120-0665B

$4.92

34

BOLT, JOINT This part replaces 07120-06953.

07120-0695B

$3.95

35

BRACKET, SPROCKET COVER | MODEL Y/K1

11362-35F00

Unavailable

36

BOLT | MODEL Y/K1 This part replaces 07130-06163.

07130-0616B

$2.38

37

CAP, CLUTCH RELEASE ADJUST

09250-30003

$3.52

38

DAMPER, SPROCKET COVER NO.1 | MODEL Y/K1

11363-35F00

Unavailable

39

DAMPER, SPROCKET COVER NO.2 | MODEL Y/K1

11364-35F00

Unavailable

40

DAMPER, SPROCKET COVER NO.3 | MODEL Y/K1

11365-35F00

Unavailable
