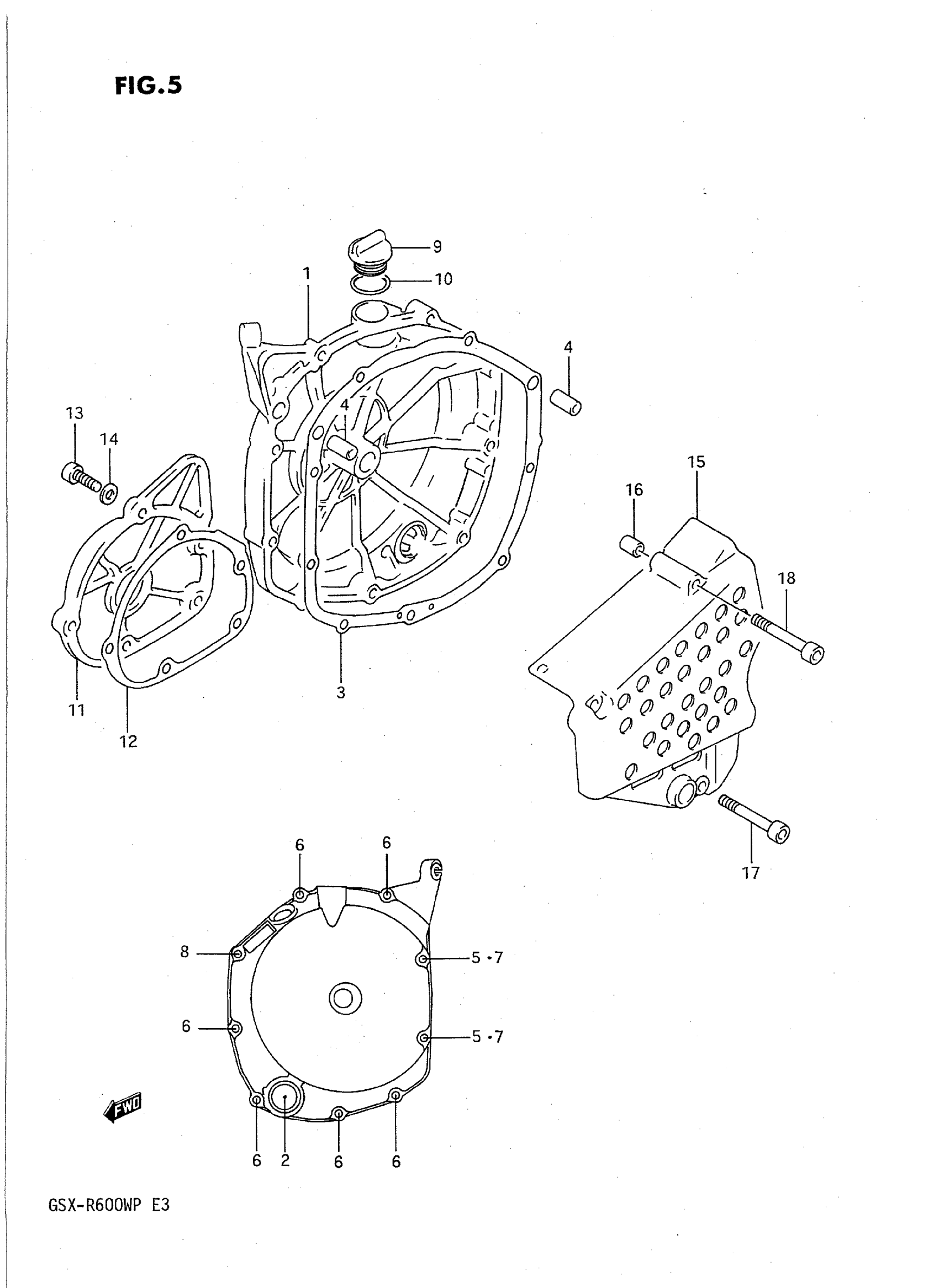

Suzuki GSX-R600WP (1993) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2 This part replaces 11340-17E01.

11340-21E00

Unavailable

2

LENS, OIL LEVEL

11971-33210

$16.66

3

GASKET, CLUTCH COVER (NA)

11482-17E00

Unavailable

4

PIN

04211-09189

$1.64

5

GASKET

09168-06024

$2.19

6

BOLT This part replaces 07110-06255.

07130-0625B

$2.80

7

BOLT This part replaces 07110-06305.

07130-0630B

$3.04

8

BOLT This part replaces 07110-06355.

07130-0635B

$3.04

9

.PLUG This part replaces 09259-20012.

09259-20008-XC0

$6.76

10

O RING

09280-17003

$1.64

11

COVER, SIGNAL GENERATOR This part replaces 11381-17E00.

11381-31E00

Unavailable

12

GASKET. SIGNAL GENERATOR COVER This part replaces 11491-17E00.

11491-17E01

Unavailable

13

BOLT,6X23 This part replaces 09106-06059.

09106-06059-XC0

Unavailable

14

GASKET

09168-06024

$2.19

15

COVER, ENGINE SPROCKET This part replaces 11361-17E00.

11361-17E10

Unavailable

16

PIN

04211-09129

$1.64

17

BOLT This part replaces 07110-06505.

07130-0650B

$4.45

18

BOLT This part replaces 07110-06555.

07130-0655B

$4.45
