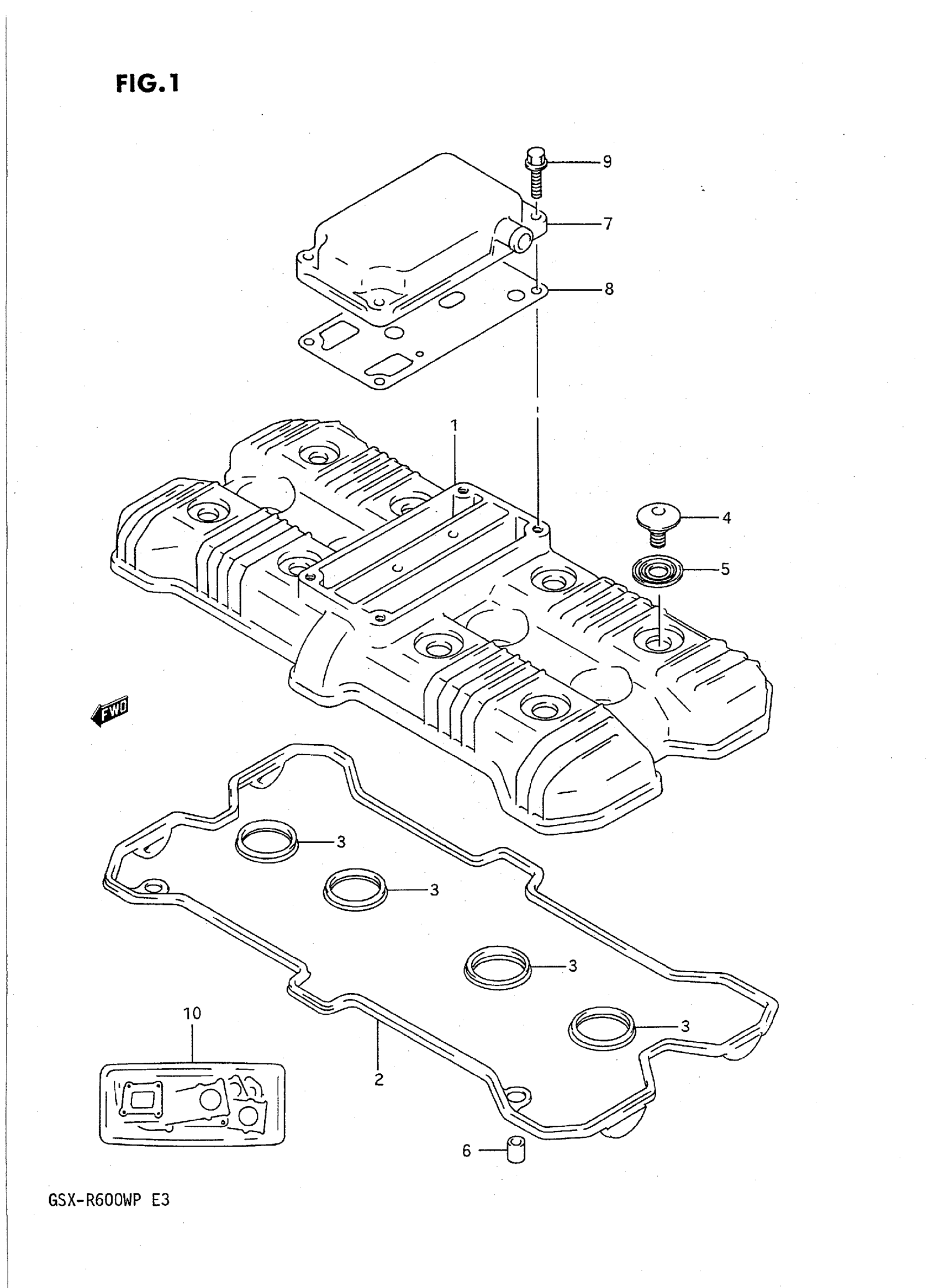

Suzuki GSX-R600WP (1993) CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER, CYLINDER HEAD This part replaces 11171-17E00.

11171-17E11

Unavailable

2

GASKET, HEAD COVER NO.1

11173-17E00

Unavailable

3

GASKET, HEAD COVER NO.2

11178-17E00

$6.35

4

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.19

5

WASHER

09161-11008

$4.17

6

PIN

09206-08001

$1.82

7

COVER, BREATHER

11176-26D00

Unavailable

8

GASKET, BREATHER COVER (NA)

11177-17E00

$10.09

9

BOLT This part replaces 01517-06257.

01550-06257

$2.38

10

NO DESCRIPTION AVAILABLE This part replaces 11400-17880.

11400-17884

Unavailable
