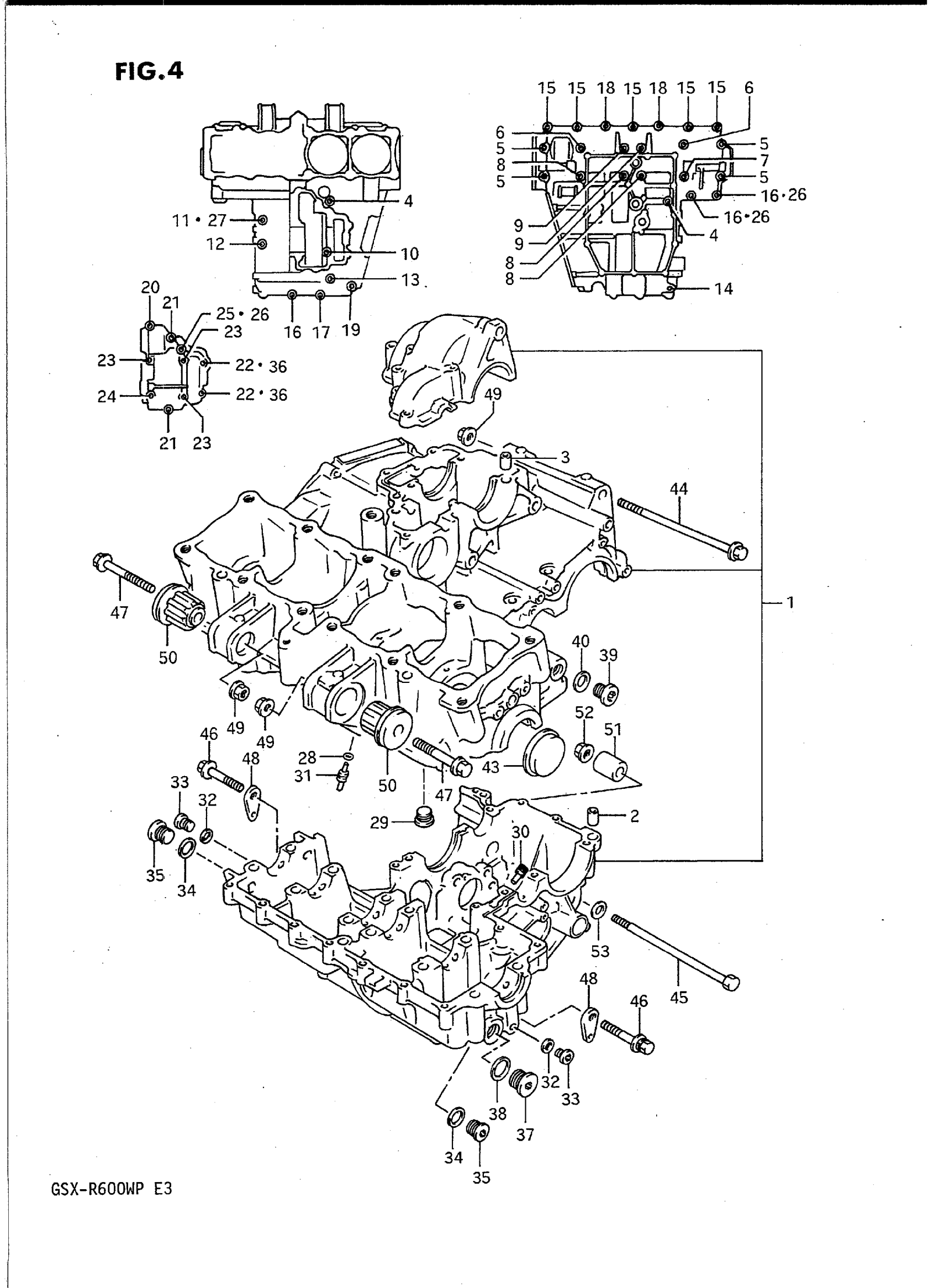

Suzuki GSX-R600WP (1993) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL N This part replaces 11300-17843.

11302-46876

Unavailable

1

CRANKCASE SET | MODEL P; Includes Item(s) 2 - 42 This part replaces 11300-17846.

11302-46876

Unavailable

2

PIN

09206-13004

$2.44

3

PIN

04211-09129

$1.64

4

BOLT (6X105)

09103-06163

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 09103-09007.

09103-09007-XC0

Unavailable

6

BOLT (9X95)

09103-09008

$6.95

7

BOLT (9X105)

09103-09009

Unavailable

8

BOLT (9X115)

09103-09010

$10.77

9

BOLT (9X60)

09106-09001

Unavailable

10

BOLT This part replaces 07110-06758.

07130-0675B

$5.00

11

BOLT This part replaces 07110-08508.

07130-0850A

$4.53

12

BOLT This part replaces 07110-08608.

07130-0860B

Unavailable

13

BOLT This part replaces 07130-08808.

07130-0880B

Unavailable

14

BOLT This part replaces 01517-08605.

01550-0860A

$1.37

15

BOLT This part replaces 01517-06354.

01550-0635A

$2.31

16

BOLT This part replaces 01517-06404.

01550-0640A

$2.43

17

BOLT This part replaces 01517-06408.

01550-06407

$2.73

18

BOLT This part replaces 01517-06505.

01550-0650A

$3.10

19

BOLT

01517-06655

Unavailable

20

BOLT This part replaces 07110-06257.

07130-06257

$2.90

21

NO DESCRIPTION AVAILABLE This part replaces 07110-06357.

07130-06357

Unavailable

22

BOLT This part replaces 07110-06408.

07130-06407

Unavailable

23

BOLT This part replaces 07110-06508.

07130-0650B

$4.45

24

BOLT This part replaces 07110-06608.

07130-0660B

$5.10

25

BOLT (6X145)

09103-06062

Unavailable

26

GASKET

09168-06018

$1.70

27

GASKET (8.2X14X1)

09168-08016

$1.64

28

O RING

09280-04004

$1.76

29

PLUG (18X8) This part replaces 09248-18002.

09248-18011

$7.98

30

JET, OIL GALLERY MISSION

09493-24010

$18.33

31

JET, OIL GALLERY PISTON

09493-80008

Unavailable

32

GASKET

09168-10002

$1.96

33

PLUG, OIL GALLERY

09248-10007

$7.07

34

GASKET

09168-16002

$1.89

35

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.19

36

GASKET

09168-06024

$2.19

37

PLUG, LH

09248-22002

Unavailable

38

GASKET

09168-22002

$6.27

39

PLUG, OIL GALLERY

09248-14010

$7.03

40

GASKET

09168-14004

$1.69

41

BEARING, THRUST RH (GREEN) | SEE ILLUSTRATION ON FIG.7 (B-9)

12228-17E00-0D0

$8.95

42

BEARING, THRUST LH (RED) | SEE ILLUSTRATION ON FIG.7 (B-9)

12228-17E00-0A0

$12.85

42

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.12

42

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.12

42

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$8.95

42

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$12.85

42

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$13.10

43

PLUG, CRANKCASE LH

09241-37002

$19.97

44

BOLT (10X150) This part replaces 09103-10139.

09103-10078

$9.33

45

BOLT (12X185) | MODEL N

09100-12028

Unavailable

45

BOLT (12X165) | MODEL P

09100-12043

Unavailable

46

BOLT This part replaces 01987-10558.

01580-1055B

$5.83

47

BOLT This part replaces 01517-10558.

01550-10557

$3.58

48

NUT This part replaces 11613-33C00.

09159-10020

$5.63

49

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.21

50

BUSH

11681-27A00

Unavailable

51

SPACER (L:27) | MODEL N

11611-40C01

Unavailable

51

SPACER | MODEL P This part replaces 11611-19B11.

11611-19B13

$7.45

52

NUT This part replaces 08319-31128.

08319-3112A

$3.38

53

WASHER This part replaces 08322-11128.

08322-01127

$1.86
