2022 Suzuki GSX-R600M2 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2022 Suzuki GSX-R600M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

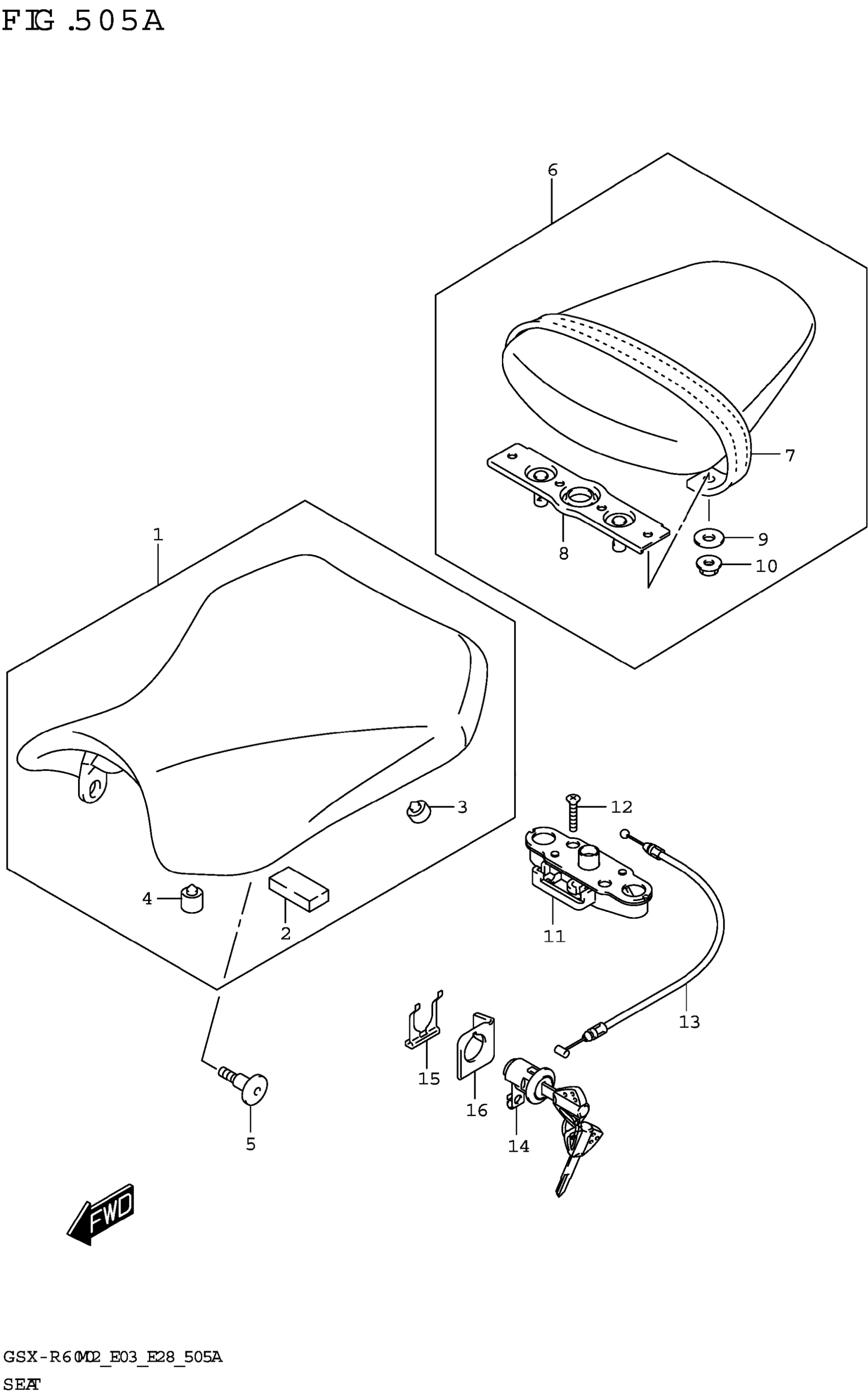

2022 Suzuki GSX-R600M2 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY (BLACK)

45100-14J11-DW2

1

$256.07

In stock

2

.CUSHION

45149-37H00

1

$7.77

In stock

3

.CUSHION

09321-10011

4

$2.92

In stock

4

.CUSHION

09321-10034

2

$8.17

In stock

5

SCREW (6X20)

09139-06193

2
Out of stock

6

SEAT ASSY,PILLION (BLACK)

45300-14J11-P3H

1

$214.48

In stock

7

.BAND ASSY,SEAT (BLACK)

45180-14J10-P3H

1
Out of stock

8

.STRIKER

45290-47H01

1

$44.02

In stock

9

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

10

NUT (6X12)

08316-1006A

2
Out of stock

11

BRACKET,SEAT SUPPORT

45220-47H00

1
Out of stock

12

SCREW

02122-0630A

2

$1.89

In stock

13

CABLE,SEAT LOCK

45280-14J00

1

$27.55

In stock

14

LOCK SET,SEAT

95700-14810

1
Out of stock

15

PLATE,SEAT LOCK ASSY

45289-11F00

1
Out of stock

16

GUIDE,SEAT LOCK CABLE

45288-14F00

1
Out of stock
