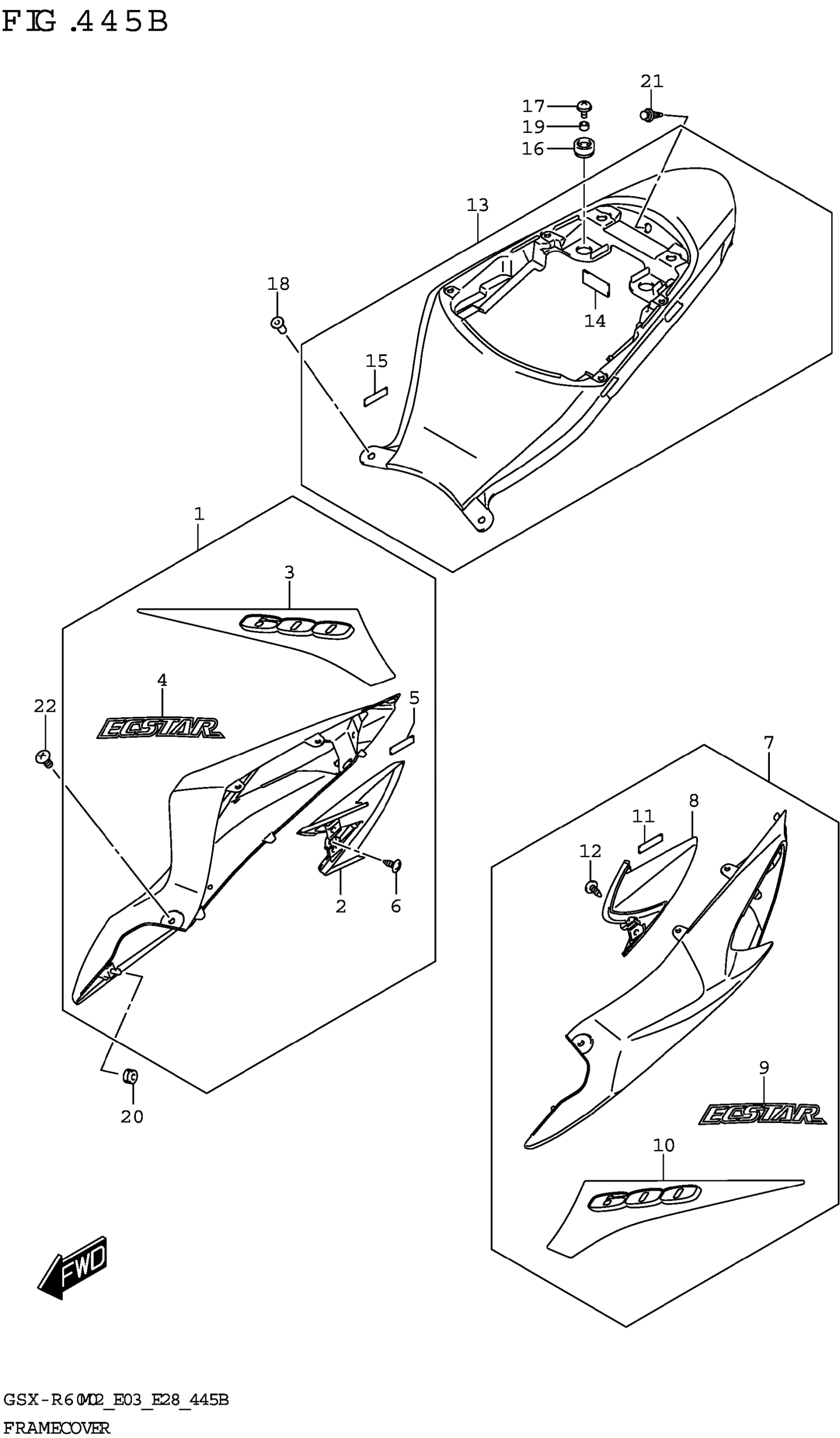

Suzuki GSX-R600M2 (2022) FRAME COVER (GSX-R600Z) Diagram

#

Description
Price

1

COVER ASSY,FRAME,R (SILVER)

47100-14J90-YMD

$125.27

2

COVER,FRAME RR,R

47611-14J00

$17.89

3

.TAPE,FRAME COVER,R (ORANGE,S | LVER,BLACK,BLUE)

68135-14J70-BW8

Unavailable

4

.EMBLEM,FRAME COVER,R (BLUE,W | ITE,SILVER)

68131-14J10-B54

$13.27

5

TAPE (6X25X0.13)

94443-06G00

$3.11

6

SCREW

03541-0512A

$1.41

7

COVER ASSY,FRAME,L (SILVER)

47200-14J90-YMD

$125.27

8

COVER,FRAME RR,L

47621-14J00

$17.97

9

.EMBLEM,FRAME COVER,L (BLUE,W | ITE,SILVER)

68141-14J10-B54

$13.27

10

.TAPE,FRAME COVER,L (ORANGE,S | LVER,BLACK,BLUE)

68145-14J70-BW8

Unavailable

11

TAPE (6X25X0.13)

94443-06G00

$3.11

12

SCREW

03541-0512A

$1.41

13

COVER ASSY,FRAME CTR This part replaces 47300-14J01.

47300-14J10

$92.21

14

CUSHION (10X24X1)

48128-14FA0

$7.30

15

TAPE (6X25X0.13)

94443-06G00

$3.11

16

CUSHION (10X24X13)

47312-37H10

$2.80

17

SCREW (6X16)

09136-06056

$2.17

18

NUT (M5)

09159-05019

$6.63

19

SPACER (6.5X10X7)

09180-06283

$1.97

20

CUSHION (6X18X6)

09320-06504

$4.61

21

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

22

SCREW

02142-1520B

$2.34
