2022 Suzuki GSX-R600M2 Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 2022 Suzuki GSX-R600M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

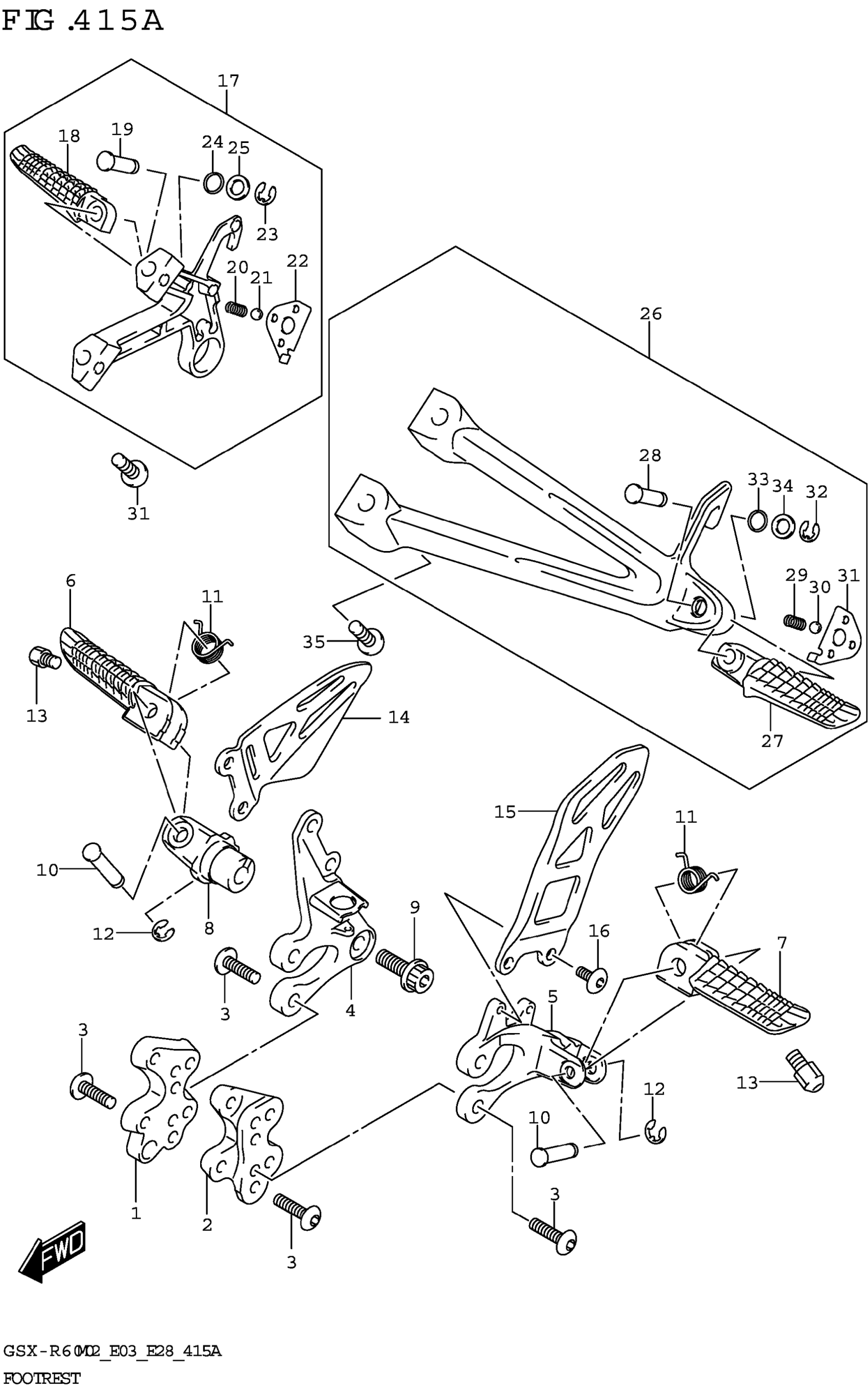

2022 Suzuki GSX-R600M2 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,FR FOOTREST NO.1,R

43541-14J10

1
Out of stock

2

BRACKET,FR FOOTREST NO.1,L

43551-14J10

1
Out of stock

3

BOLT (8X23)

09106-08186

8
Out of stock

4

BRACKET,FR FOOTREST NO.2,R

43511-14J10

1
Out of stock

5

BRACKET,FR FOOTREST NO.2,L

43521-47H20

1
Out of stock

6

BAR,FRONT FOOTREST,R

43516-37H10

1
Out of stock

7

BAR,FRONT FOOTREST,L

43526-37H10

1
Out of stock

8

HOLDER,FOOTREST

43531-41G20

1
Out of stock

9

BOLT (10X28)

09106-10064

1
Out of stock

10

PIN

09208-08018

2
Out of stock

11

SPRING,FRONT FOOTREST

43581-47H00

2
Out of stock

12

E-RING

08332-1106A

2
Out of stock

13

BOLT,BANK SENSOR

43576-07D10

2
Out of stock

14

GUARD,FR FOOTREST,L

43576-47H40

1
Out of stock

15

GUARD,FR FOOTREST,R

43571-47H30

1
Out of stock

16

SCREW,FOOTREST GUARD,L

43577-35F10

2
Out of stock

17

FOOTREST ASSY,PILLION,R

43600-14J30

1
Out of stock

18

BAR,PILLION FOOTREST,R

43611-37H30

1
Out of stock

19

.PIN

09208-08020

1
Out of stock

20

SPRING

09440-05003

1
Out of stock

21

BALL

06111-07004

1
Out of stock

22

.PLATE,PILLION FOOTREST,R

43816-47H00

1
Out of stock

23

E-RING

08332-1106A

1
Out of stock

24

.O-RING (D:2.4,ID:6.9)

09280-08013

1
Out of stock

25

WASHER This part replaces 09160-08091.

09160-08082

1
Out of stock

26

FOOTREST ASSY,PILLION,L

43700-14J30

1
Out of stock

27

BAR,PILLION FOOTREST,L

43621-37H30

1
Out of stock

28

.PIN

09208-08020

1
Out of stock

29

SPRING

09440-05003

1
Out of stock

30

BALL

06111-07004

1
Out of stock

31

.PLATE,PILLION FOOTREST,L

43826-47H00

1
Out of stock

32

E-RING

08332-1106A

1
Out of stock

33

.O-RING (D:2.4,ID:6.9)

09280-08013

1
Out of stock

34

WASHER This part replaces 09160-08091.

09160-08082

1
Out of stock

35

BOLT (8X23)

09106-08186

4
Out of stock
