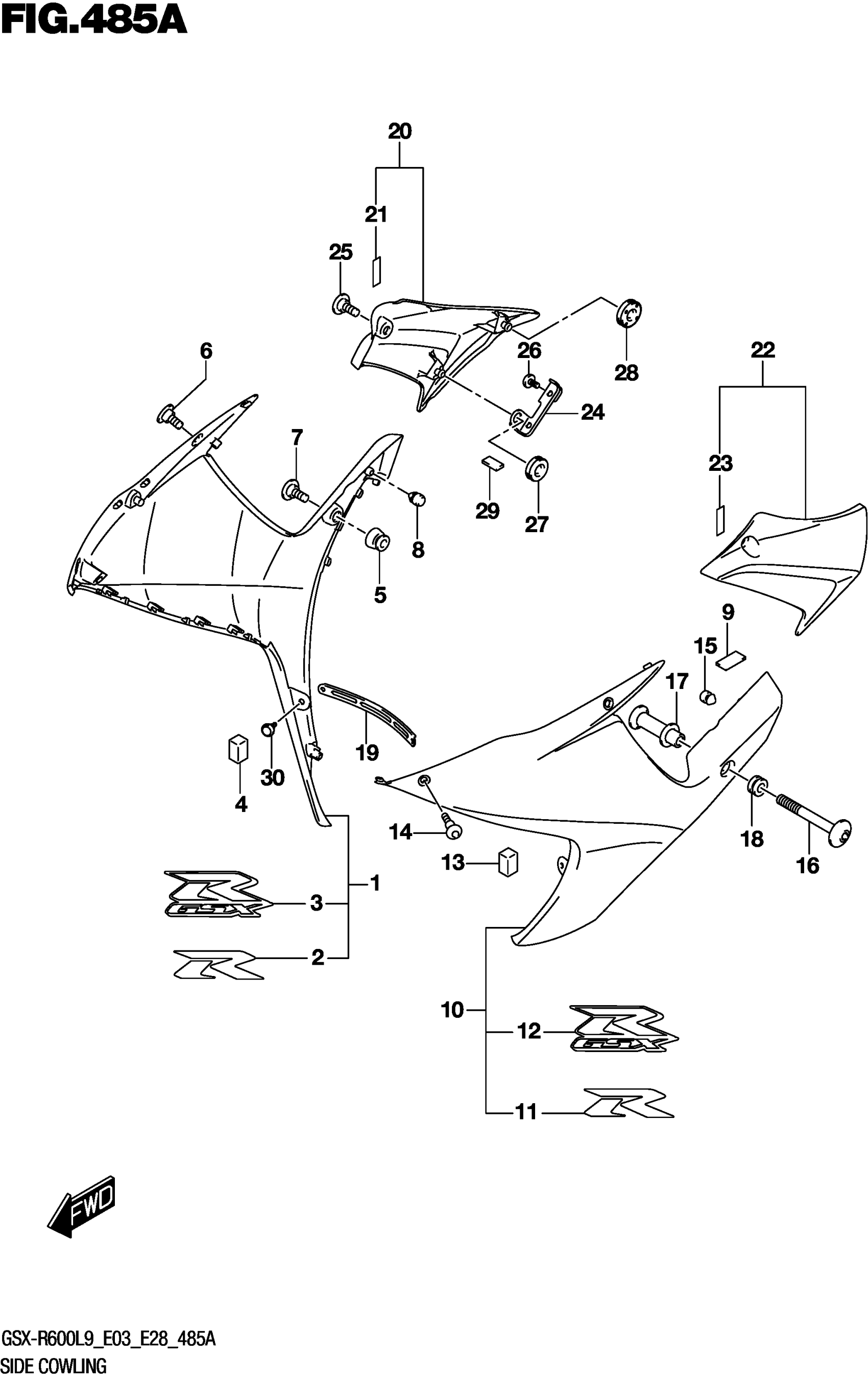

Suzuki GSX-R600L9 (2019) SIDE COWLING Diagram

#

Description
Price

1-1

COWLING, SIDE RH (BLACK)

94450-15J60-YVB

$521.62

1-2

COWLING, SIDE RH (WHITE)

94450-15J60-YWW

$531.63

2-1

.EMBLEM, "R" (BLACK)

68681-15JA0-YVB

$211.62

2-2

.EMBLEM, "R" (WHITE)

68681-15JA0-YWW

$211.62

3-1

.EMBLEM, "GSXR" RH | FOR YVB

68681-15J20-AGT

$32.23

3-1

.EMBLEM, "GSXR" RH

68681-15J20-AGT

$32.23

3-2

.EMBLEM, "GSXR" RH (WHITE) | FOR YWW

68681-15J20-BV9

$32.23

4

CUSHION,SIDE COWL FR

94477-14J01

$12.35

5

CUSHION,UNDER COWLING,L

94479-15H00

$4.41

6

SCREW (5X13)

09139-05064

$2.64

7

SCREW (6X20)

09139-06190

$3.89

8

CUSHION This part replaces 09321-06013.

09321-06036

$1.56

9

CUSHION, FUEL TANK NO.2 | CUT AS REQUIRED

44543-10G00

$5.47

10-1

COWLING, SIDE LH (BLACK)

94460-15J60-YVB

$531.63

10-2

COWLING, SIDE LH (WHITE)

94460-15J60-YWW

$531.63

11-1

.EMBLEM, "R" (BLACK)

68681-15JA0-YVB

$211.62

11-2

.EMBLEM, "R" (WHITE)

68681-15JA0-YWW

$211.62

12-1

.EMBLEM, "GSXR" LH | FOR YVB

68691-15J20-AGT

$31.03

12-1

.EMBLEM, "GSXR" LH

68691-15J20-AGT

$31.03

12-2

.EMBLEM, "GSXR" LH (WHITE) | FOR YWW

68691-15J20-BV9

$32.23

13

CUSHION,SIDE COWL FR

94477-14J01

$12.35

14

SCREW (5X13)

09139-05064

$2.64

15

CUSHION This part replaces 09321-06013.

09321-06036

$1.56

16

SCREW,SIDE COWL,L

94488-14J00

$3.53

17

SPACER,SIDE COWL,L

94489-14J00

$10.72

18

CUSHION (9X18X9.5)

09320-09016

$2.01

19

PLATE,UNDER COWL CTR

94498-14J00

$16.79

20

COVER,SIDE COWLING,R

94570-14J00

$18.06

21

TAPE (6X25X0.13)

94443-06G00

$3.11

22

COVER,SIDE COWLING,L

94580-14J00

$18.06

23

TAPE (6X25X0.13)

94443-06G00

$3.11

24

BRACKET,COVER SIDE,R

94491-14J00

$11.28

25

SCREW (5X13)

09139-05064

$2.64

26

SCREW (6X12)

09139-06062

$3.30

27

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.98

28

CUSHION (8X26X7)

09320-08028

$2.82

29

CUSHION (5X10X1.5)

94612-31F00

$5.62

30

CLIP

94479-35F00

$5.38
