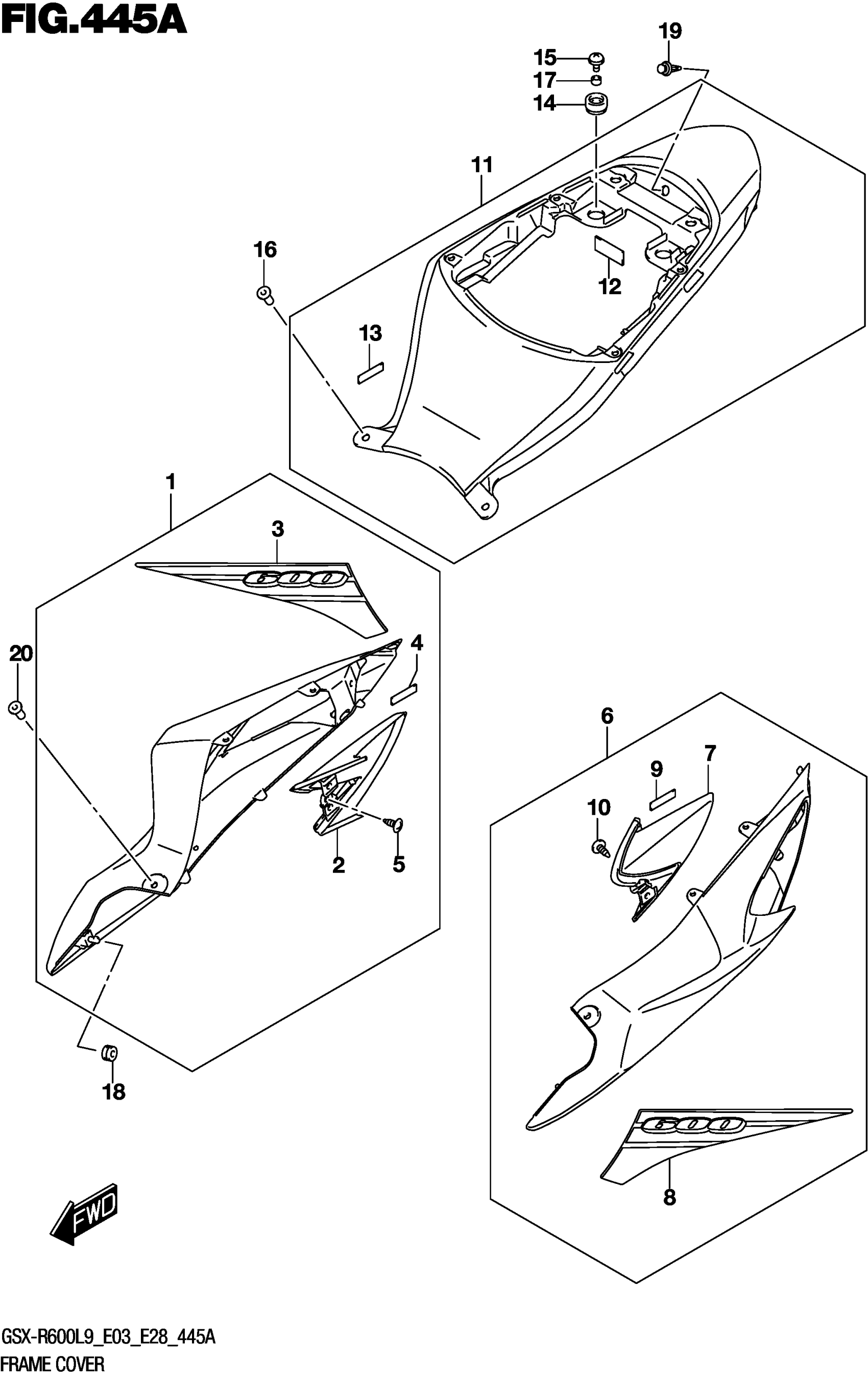

Suzuki GSX-R600L9 (2019) FRAME COVER Diagram

#

Description
Price

1-1

COVER, FRAME RH (BLACK) | FOR YVB

47100-14J10-6UX

$135.03

1-2

COVER, FRAME RH (WHITE) | FOR YWW

47100-14J10-AHX

$152.42

2

COVER,FRAME RR,R

47611-14J00

$17.12

3-1

.EMBLEM, "600" (BLACK/WHITE) | FOR 6UX

68131-14J00-AGT

$13.23

3-2

.EMBLEM, "600" (WHITE) | FOR AHX

68131-14J00-BV9

$13.23

4

TAPE (6X25X0.13)

94443-06G00

$2.97

5

SCREW

03541-0512A

$1.37

6-1

COVER, FRAME LH (BLACK) | FOR YVB

47200-14J10-6UX

$135.03

6-2

COVER, FRAME LH (WHITE) | FOR YWW

47200-14J10-AHX

$152.42

7

COVER,FRAME RR,L

47621-14J00

$17.20

8-1

.EMBLEM, "600" (BLACK/WHITE) | FOR 6UX

68131-14J00-AGT

$13.23

8-2

.EMBLEM, "600" (WHITE) | FOR AHX

68131-14J00-BV9

$13.23

9

TAPE (6X25X0.13)

94443-06G00

$2.97

10

SCREW

03541-0512A

$1.37

11

COVER ASSY,FRAME CTR This part replaces 47300-14J00.

47300-14J10

$88.23

12

CUSHION (10X24X1)

48128-14FA0

$7.30

13

TAPE (6X25X0.13)

94443-06G00

$2.97

14

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

15

SCREW (6X16)

09136-06056

$2.17

16

NUT (M5)

09159-05019

$6.44

17

SPACER (6.5X10X7)

09180-06283

$1.89

18

CUSHION (6X18X6)

09320-06504

$4.47

19

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.80

20

SCREW

02142-1520B

$2.34
