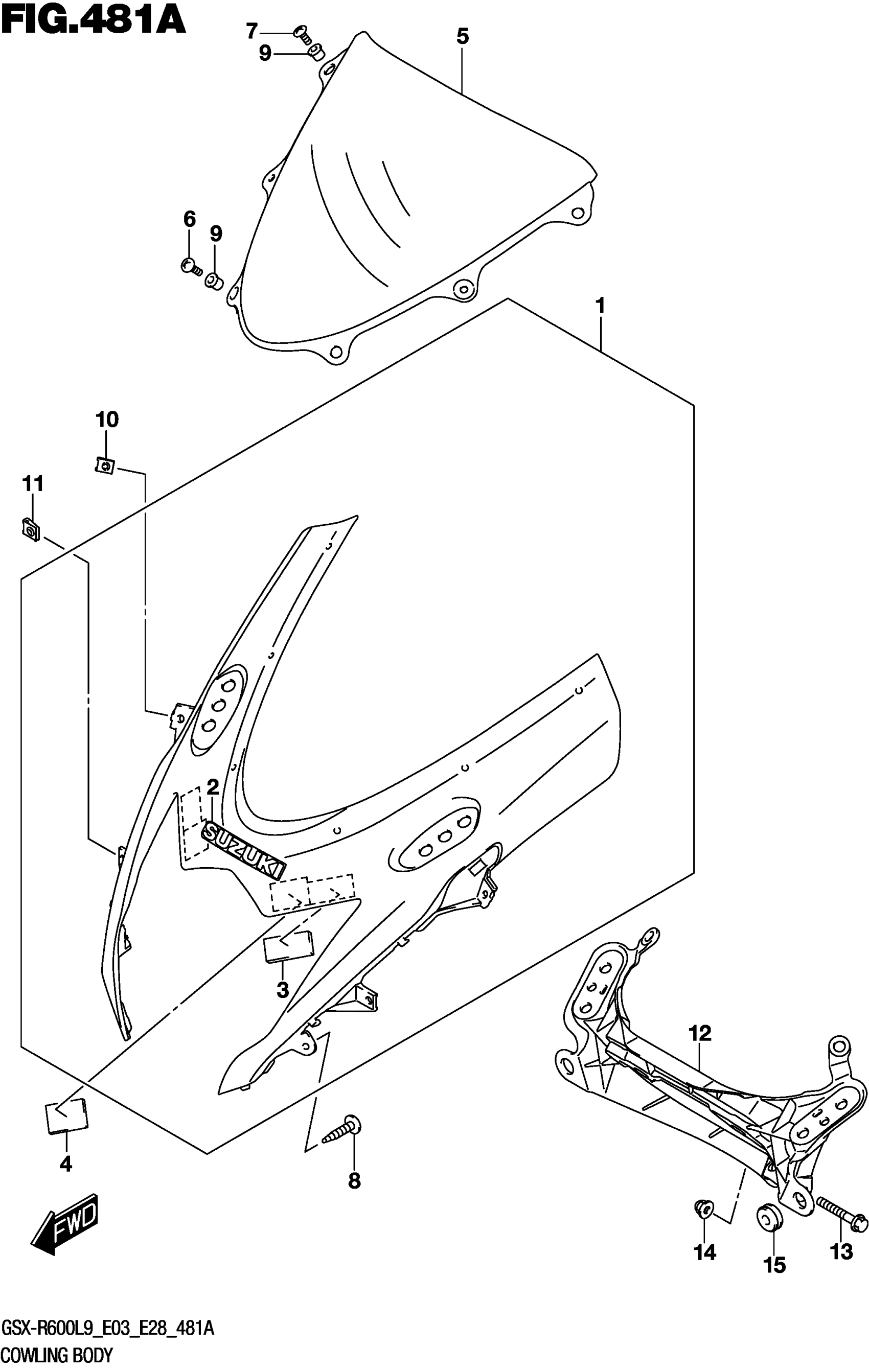

Suzuki GSX-R600L9 (2019) COWLING BODY Diagram

#

Description
Price

1-1

COWLING,BODY (BLACK) | FOR YVB This part replaces 94410-14J10-44X.

94410-14J12-44X

$192.53

1-2

COWLING,BODY | FOR YWW This part replaces 94410-14J10-AHX.

94410-14J12-AHX

$253.40

2-1

.EMBLEM,"SUZUKI" (WHITE) | FOR 44X This part replaces 68641-19F00-YWW.

68641-19F01-YWW

$13.25

2-2

.EMBLEM (WHITE) | FOR AHX

68641-19F00-30H

$12.13

3

.CUSHION,BODY COWL (20X40X7)

92146-14J00

$4.80

4

FASTENER (25X33X2.6)

44572-02F01

$10.59

5

WINDSCREEN

94611-14J00

$101.33

6

SCREW (5X18)

09125-05133

$2.27

7

SCREW (5X15)

09125-05134

$2.27

8

SCREW

03541-0516A

$1.41

9

NUT (M5)

09159-05019

$6.63

10

NUT (M5)

09148-05052

$3.13

11

NUT (M5)

09148-05047

$2.10

12

BRACE,COWLING

94511-14J00

$265.48

13

BOLT (8X45)

09103-08207

$2.59

14

NUT

08313-2008A

$2.58

15

CUSHION (8.5X23X9.5) This part replaces 09320-08047.

09320-08518

$2.71
