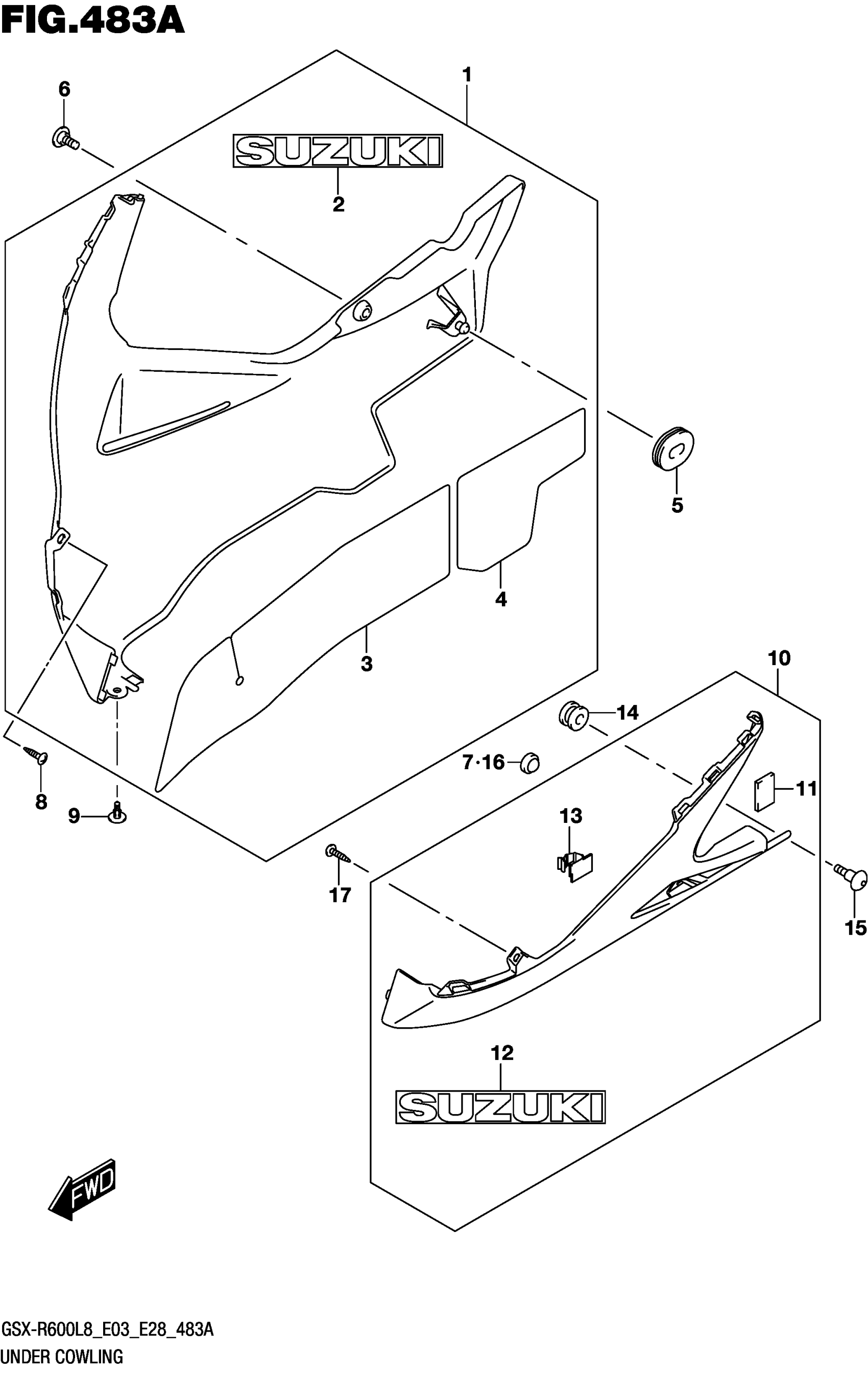

Suzuki GSX-R600L8 (2018) UNDER COWLING Diagram

#

Description
Price

1-1

COWLING, UNDER RH (BLACK) | FOR YSF

94470-14J00-4UX

$349.30

1-2

COWLING,UNDER RH (GRAY) | FOR QEB

94470-14J00-QEB

$324.13

1-3

COWLING, UNDER RH (WHITE) | FOR BNE

94470-14J00-YWW

$756.36

2-1

.EMBLEM (WHITE) | FOR 4UX

68181-33C20-YWW

$32.42

2-2

.EMBLEM (BLACK) | FOR QEB,YWW

68181-33C20-019

$24.48

3

.SHIELD,UNDER COWL HEAT,R

94479-14J00

$18.62

4

.SHIELD,UNDER COWL HEAT,R

94479-14J10

$17.20

5

CUSHION

94478-14J00

$5.42

6

SCREW,UNDER COWL,R (5X13) | RH

94476-14J00

$4.11

7

CUSHION

09321-10018

$4.19

8

SCREW

03541-0512A

$1.37

9

CLIP

94479-35F00

$5.14

10-1

COWLING COMP,UN | FOR YSF This part replaces 94480-14J00-4UX.

94480-14J01-4UX

$315.85

10-2

COWLING,UNDER,L (GRAY) | FOR QEB This part replaces 94480-14J00-QEB.

94480-14J01-QEB

$305.08

10-3

COWLING,UNDER,L | FOR BNE This part replaces 94480-14J00-YWW.

94480-14J01-YWW

$301.35

11

.CUSHION,BRACKET NO.1 This part replaces 47161-10FA0.

47161-10FA1

$5.43

12-1

.EMBLEM (WHITE) | FOR 4UX

68181-33C20-YWW

$32.42

12-2

.EMBLEM (BLACK) | FOR QEB,YWW

68181-33C20-019

$24.48

13

.CLAMP

09403-14311

$4.88

14

CUSHION | LH

09320-09016

$1.97

15

BOLT (6X20) | LH

09139-06190

$3.77

16

CUSHION

09321-10018

$4.19

17

SCREW

03541-0512A

$1.37

18

COLOR :

SPECIAL NOTE

Unavailable

18

BNE=YMD(SILVER),YWW(WHITE)

SPECIAL NOTE

Unavailable
