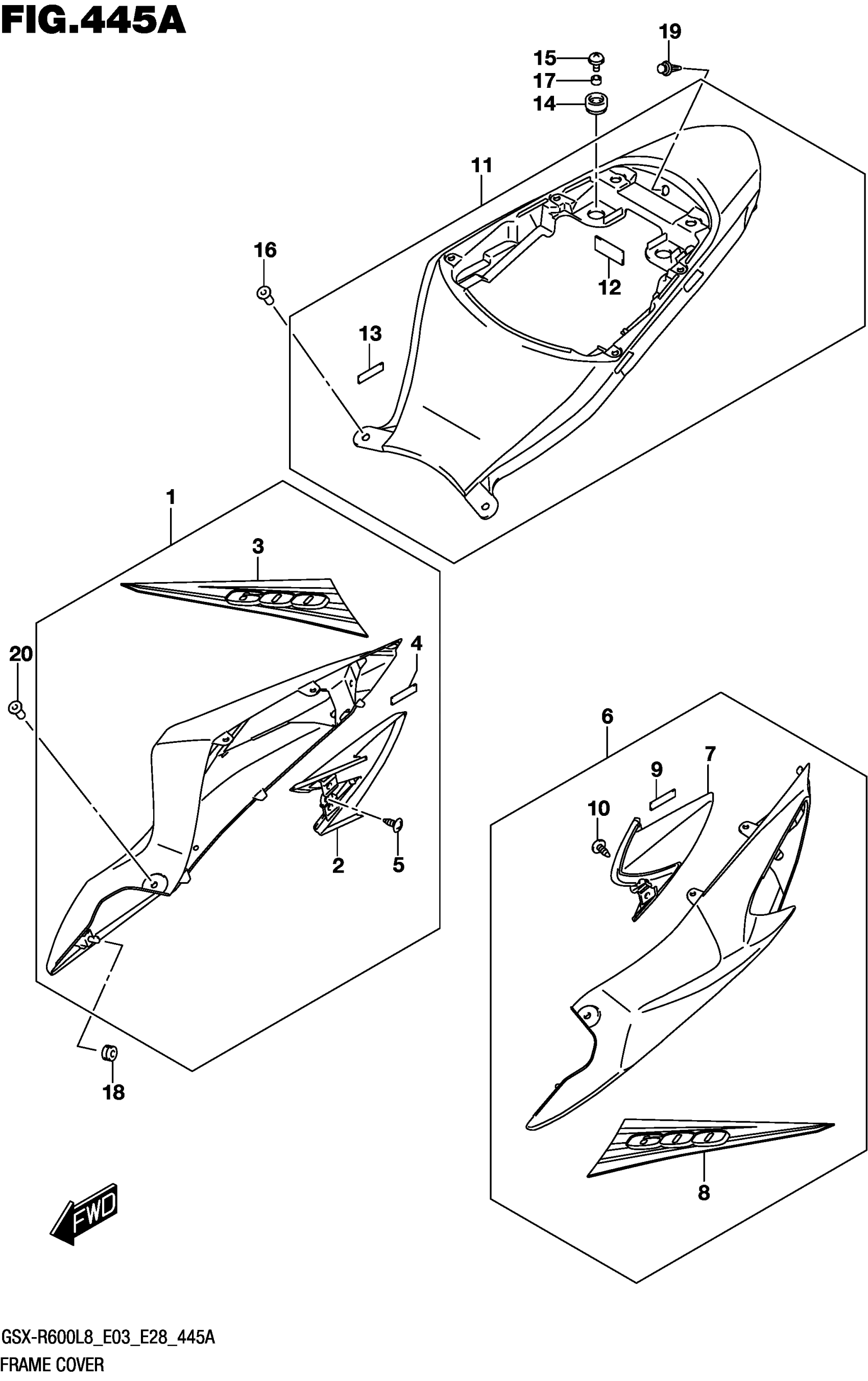

Suzuki GSX-R600L8 (2018) FRAME COVER (YSF) Diagram

#

Description
Price

1

COVER, FRAME RH (BLUE)

47100-14J70-YSF

$136.02

2

COVER,FRAME RR,R

47611-14J00

$17.89

3

.TAPE, FRAME COVER RH | FOR YSF

68135-14J60-BE3

$20.21

3

(BLUE/WHITE)

68135-14J60-BE3

$20.21

4

.TAPE

94443-06G00

$3.11

5

.SCREW

03541-0512A

$1.41

6

COVER, FRAME LH (BLUE)

47200-14J70-YSF

$136.02

7

COVER,FRAME RR,L

47621-14J00

$17.97

8

.TAPE, FRAME COVER LH | FOR YSF

68145-14J60-BE3

$27.27

8

(BLUE/WHITE)

68145-14J60-BE3

$27.27

9

.TAPE

94443-06G00

$3.11

10

.SCREW

03541-0512A

$1.41

11

COVER ASSY,FRAME CTR This part replaces 47300-14J00.

47300-14J10

$92.21

12

.CUSHION

48128-14FA0

$7.30

13

.TAPE

94443-06G00

$3.11

14

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

15

SCREW (6X16)

09136-06056

$2.17

16

NUT

09159-05019

$6.63

17

SPACER (6.5X10X7)

09180-06283

$1.97

18

CUSHION

09320-06504

$4.61

19

CLIP (BLACK)

09409-06314-5PK

$2.80

20

SCREW

02142-1520B

$2.34
