2018 Suzuki GSX-R600L8 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2018 Suzuki GSX-R600L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

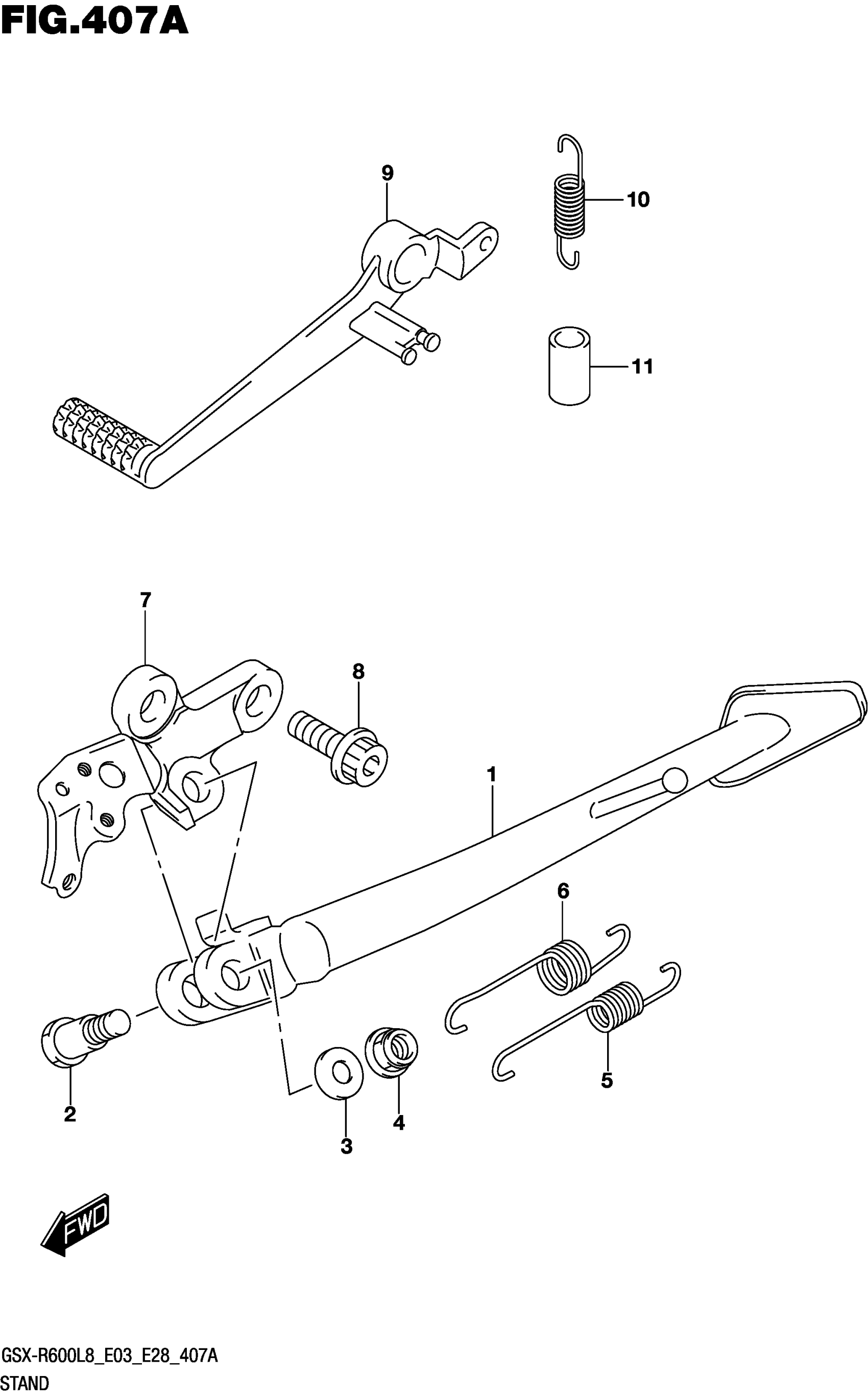

2018 Suzuki GSX-R600L8 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND,PROP

42310-14J00

1

$190.43

In stock

2

BOLT, PROP STAND

42411-47H00

1

$15.70

In stock

3

SHIM (16X28X0.5)

09181-16214

2

$2.92

In stock

4

NUT

09159-10103

1

$3.00

In stock

5

SPRING | INNER

09443-14070

1

$5.33

In stock

6

SPRING | OUTER

09443-19016

1

$5.70

In stock

7

BRACKET,PROP STAND

42330-14J01

1

$219.03

In stock

8

BOLT (10X28)

09106-10064

2

$4.74

In stock

9

PEDAL,BRAKE

43110-41G10

1

$105.99

In stock

10

SPRING

09443-11033

1

$4.37

In stock

11

1

$12.63

In stock
