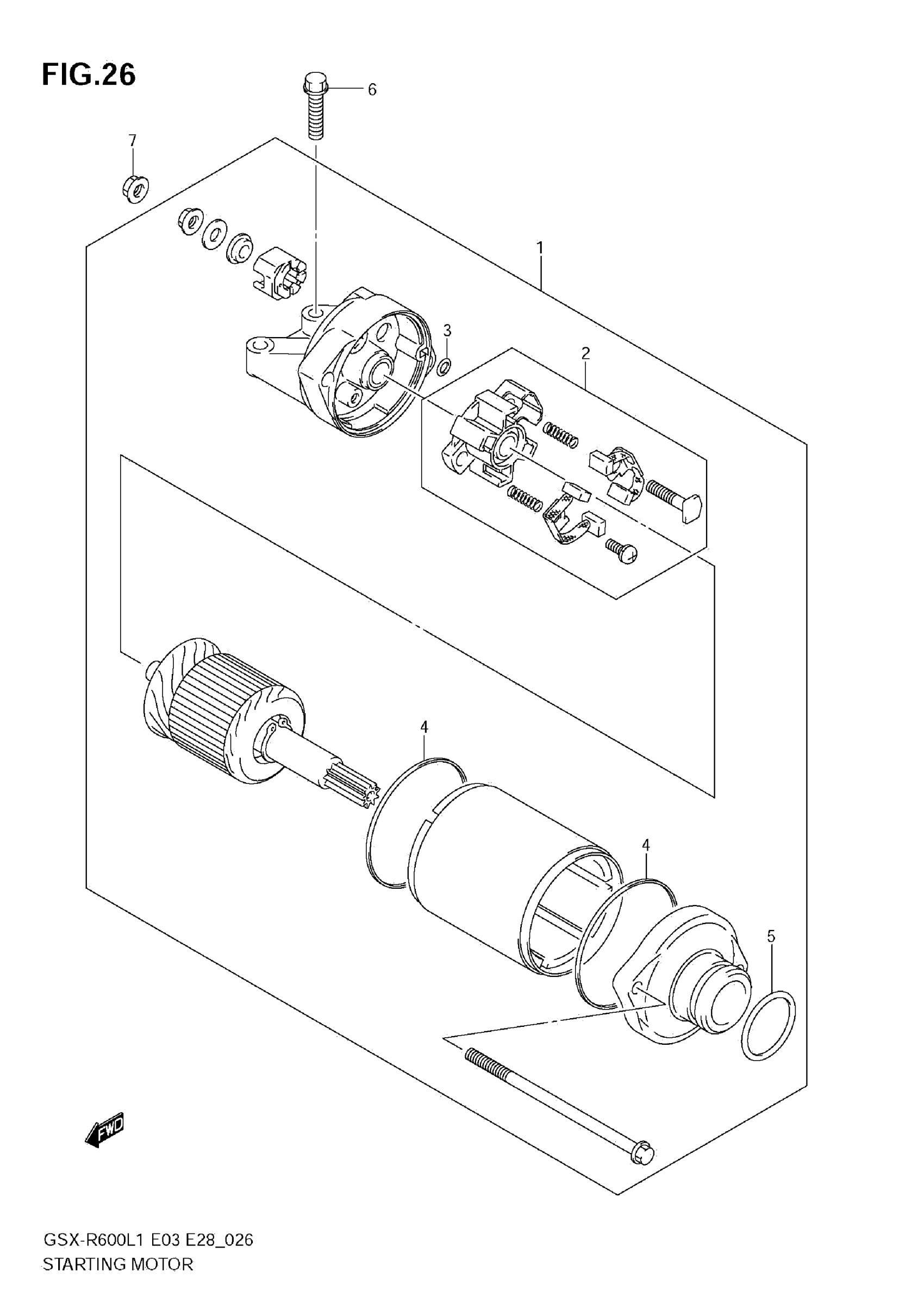

Suzuki GSX-R600L1 (2011) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY,STARTING This part replaces 31100-14J00.

31100-14J10

$650.35

2

BRUSH HOLDER SET

31132-38F10

$54.28

3

O RING

31143-49040

$4.92

4

SQUARE

31264-38F10

$9.50

5

O RING

31156-98E00

$3.83

6

BOLT (6X25)

09103-06212

$2.53

7

NUT

08361-3506A

$1.88
