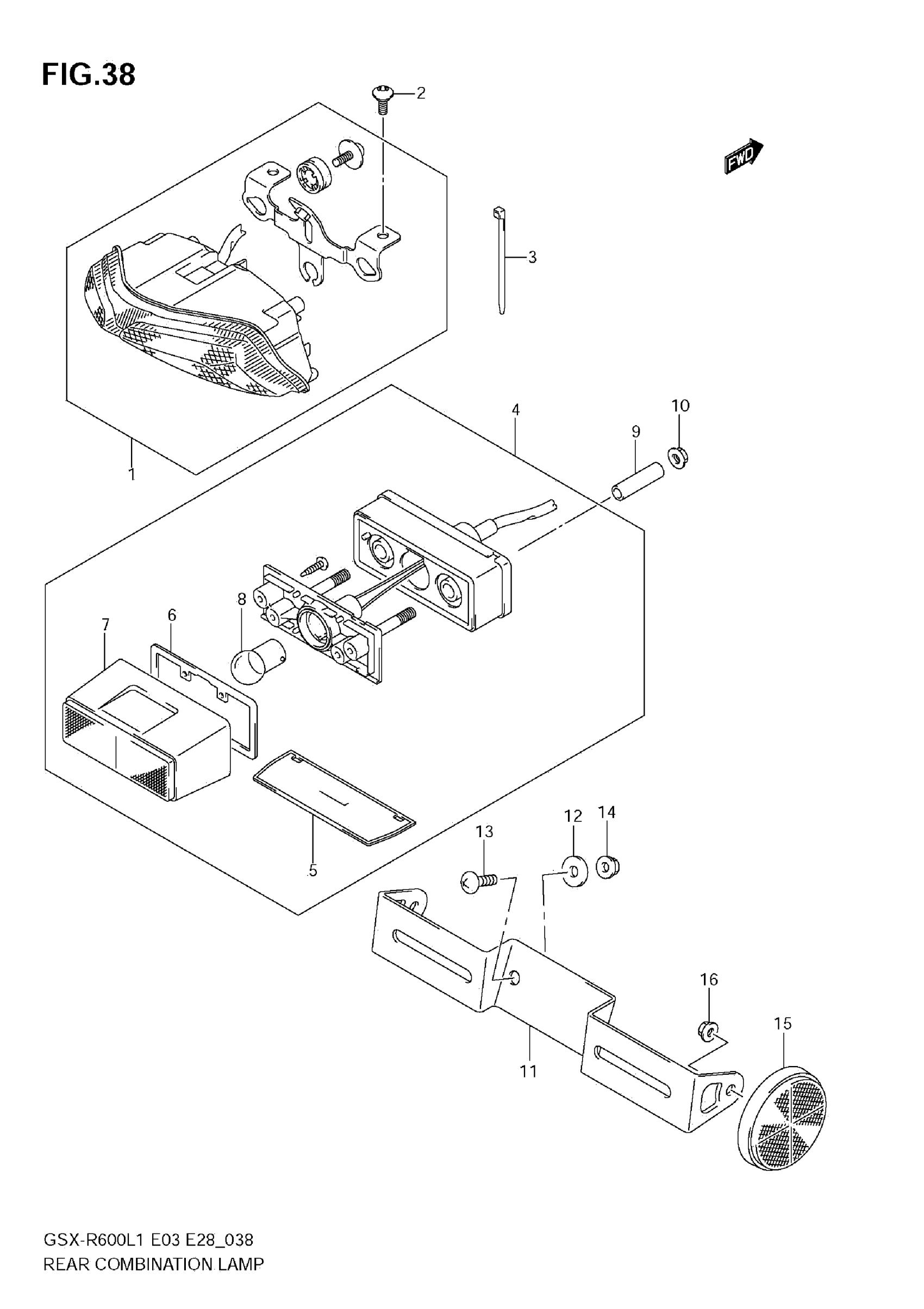

Suzuki GSX-R600L1 (2011) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-14J30

$365.80

2

BOLT (5X13)

09139-05074

$2.58

3

CLAMP (L:100)

09407-10404

$2.71

4

LAMP ASSY,LICENSE This part replaces 35910-41G30.

35910-41G32

$99.83

5

LENS, LICENSE This part replaces 35912-41G00.

35912-41G01

$14.98

6

GASKET

35913-41G00

$16.07

7

COVER

35917-41G00

$39.85

8

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

9

SPACER (6.5X9X34)

09180-06356

$5.10

10

NUT

09159-06096

$3.42

11

BRACKET,LICENSE PLATE

35927-14J30

$17.72

12

WASHER (6.5X20X1.2)

09160-06077

$1.89

13

SCREW

02142-0616A

$1.37

14

NUT

08316-1006A

$2.19

15

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.23

16

NUT

08316-1005A

$2.19
