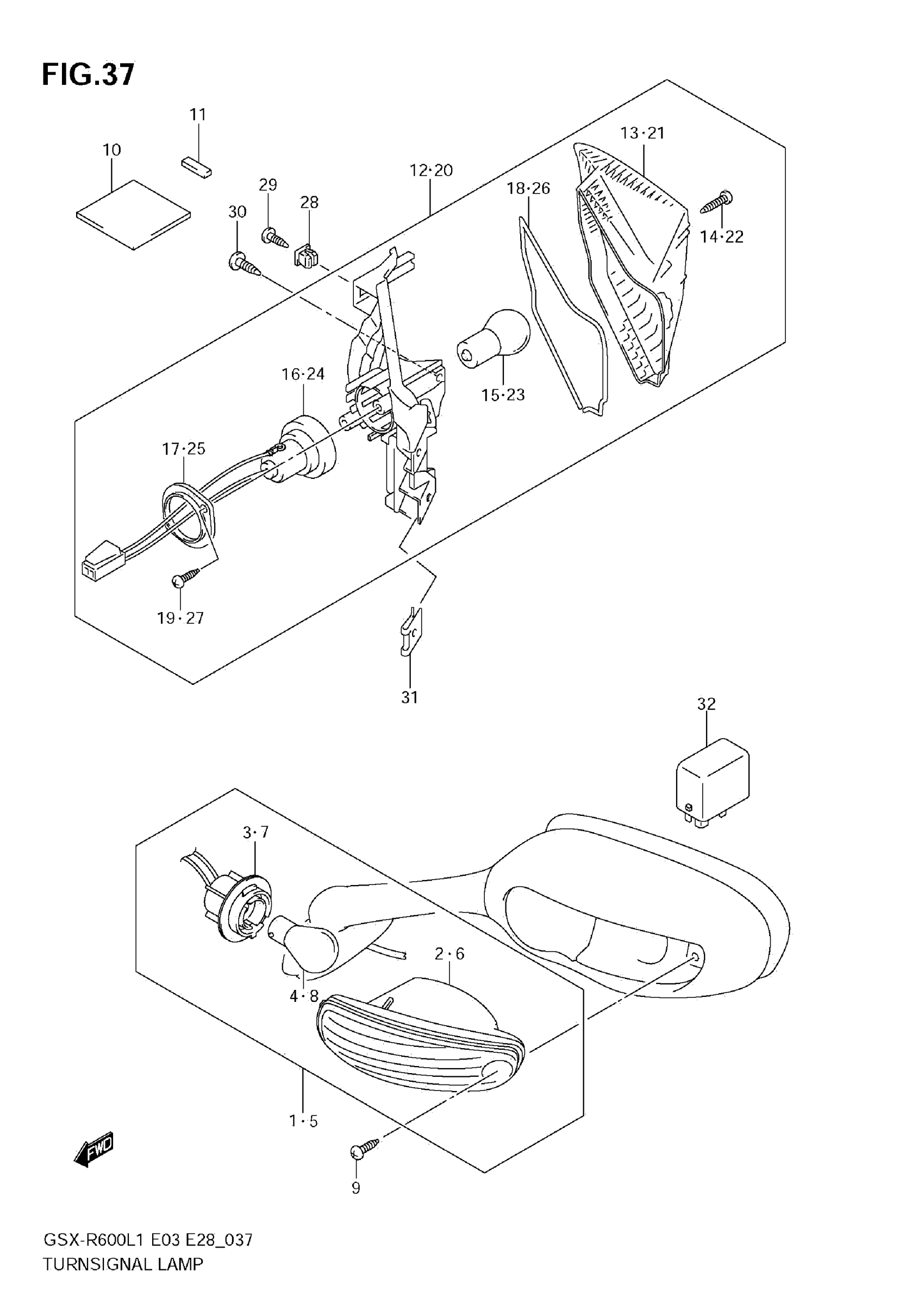

Suzuki GSX-R600L1 (2011) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TURN SIGNAL,R

35601-41G00

$51.81

2

.LAMP UNIT,R

35610-41G00

$50.15

3

.SOCKET,R

35618-10G50

$34.12

4

BULB (12V21W)

09471-12186

$16.18

5

LAMP ASSY,FR TURN SIGNAL,L

35602-41G00

$51.81

6

.LAMP UNIT,L

35630-41G00

$34.90

7

.SOCKET,L

35638-10G50

$32.85

8

BULB (12V21W)

09471-12186

$16.18

9

SCREW (4X20)

09132-04032

$1.98

10

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.80

11

TAPE,FR TURNSIGNAL (5X20X0.4)

94443-21H00

$4.47

12

LAMP ASSY, REAR TURNSIGNAL RH

35603-14J30

$131.38

13

LENS RH

35652-14J30

$41.95

14

SCREW

03211-0416A

$1.43

15

BULB (12V21W)

09471-12186

$16.18

16

.SOCKET & CORD,R

35658-41G00

$36.30

17

PLATE

35716-07A30

$11.18

18

GASKET

35653-47H00

$12.20

19

SCREW

03211-0412A

$0.73

20

LAMP ASSY, REAR TURNSIGNAL LH

35604-14J30

$128.90

21

LENS LH

35672-14J30

$43.98

22

SCREW

03211-0416A

$1.43

23

BULB (12V21W)

09471-12186

$16.18

24

.SOCKET & CORD,L

35678-41G00

$36.30

25

PLATE

35716-07A30

$11.18

26

GASKET

35653-47H00

$12.20

27

SCREW

03211-0412A

$0.73

28

NUT

09148-04021

$1.43

29

SCREW

03541-0412A

$1.37

30

SCREW

03511-0512A

$1.68

31

NUT

09148-05038

$1.97

32

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
