2009 Suzuki GSX-R600 Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2009 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

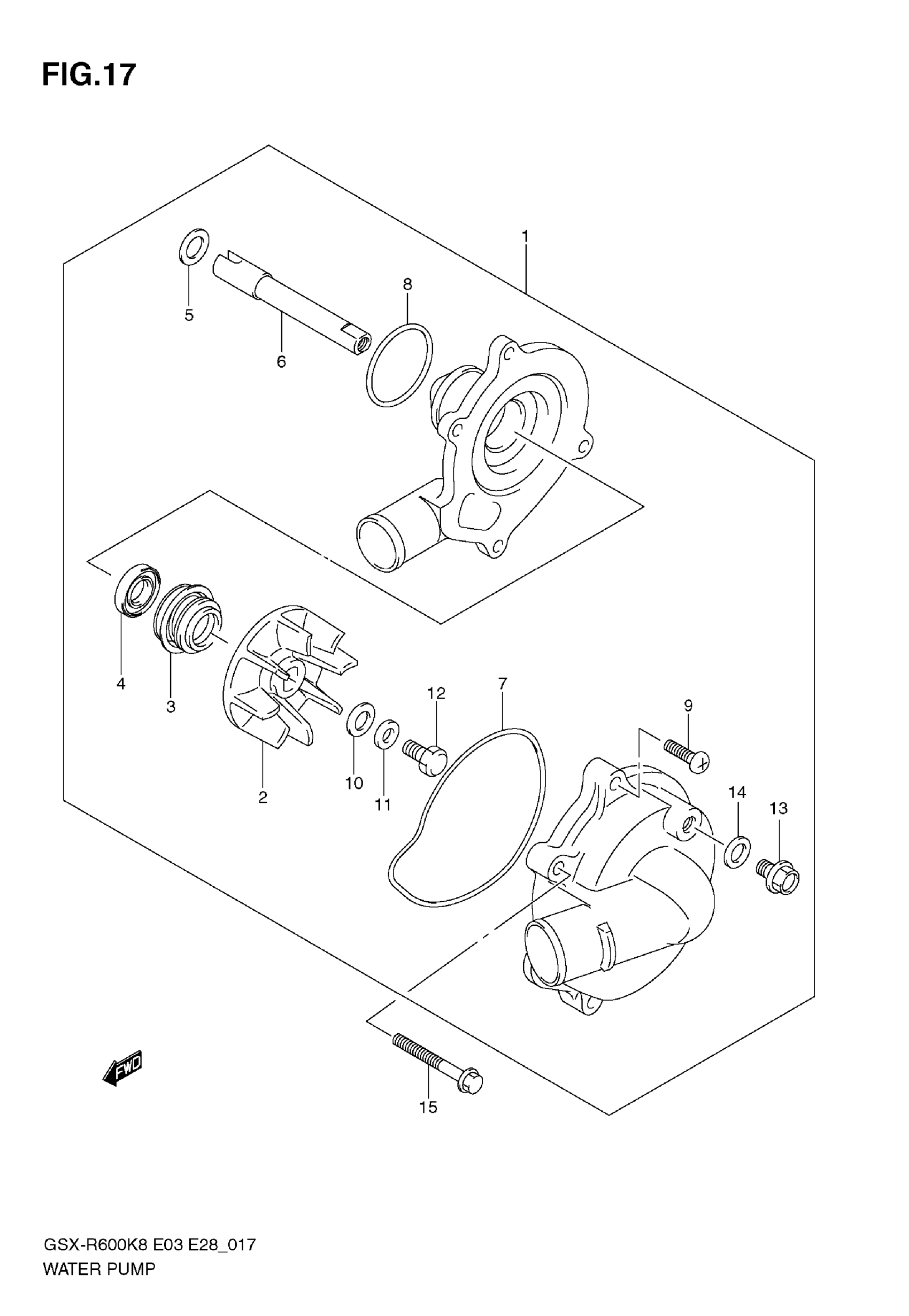

2009 Suzuki GSX-R600 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,WATER | Includes Item(s) 2 - 14 This part replaces 17400-01H10.

17400-01H11

1
Out of stock

2

IMPELLER

17491-01H00

1
Out of stock

3

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

1
Out of stock

4

SEAL, OIL

17461-01H00

1
Out of stock

5

WASHER

17432-07G00

1
Out of stock

6

SHAFT

17511-01H00

1
Out of stock

7

.O-RING This part replaces 17418-33400.

17418-33401

1
Out of stock

8

.O-RING

17435-33400

1
Out of stock

9

SCREW

02112-0616A

2
Out of stock

10

GASKET This part replaces 09168-06016.

09168-06025

1
Out of stock

11

WASHER

09164-06006

1
Out of stock

12

BOLT (6X13)

09100-06099

1
Out of stock

13

.BOLT,DRAIN

17415-20920

1
Out of stock

14

GASKET (8.2X14X1)

09168-08016

1
Out of stock

15

BOLT

01547-0635A

2
Out of stock
