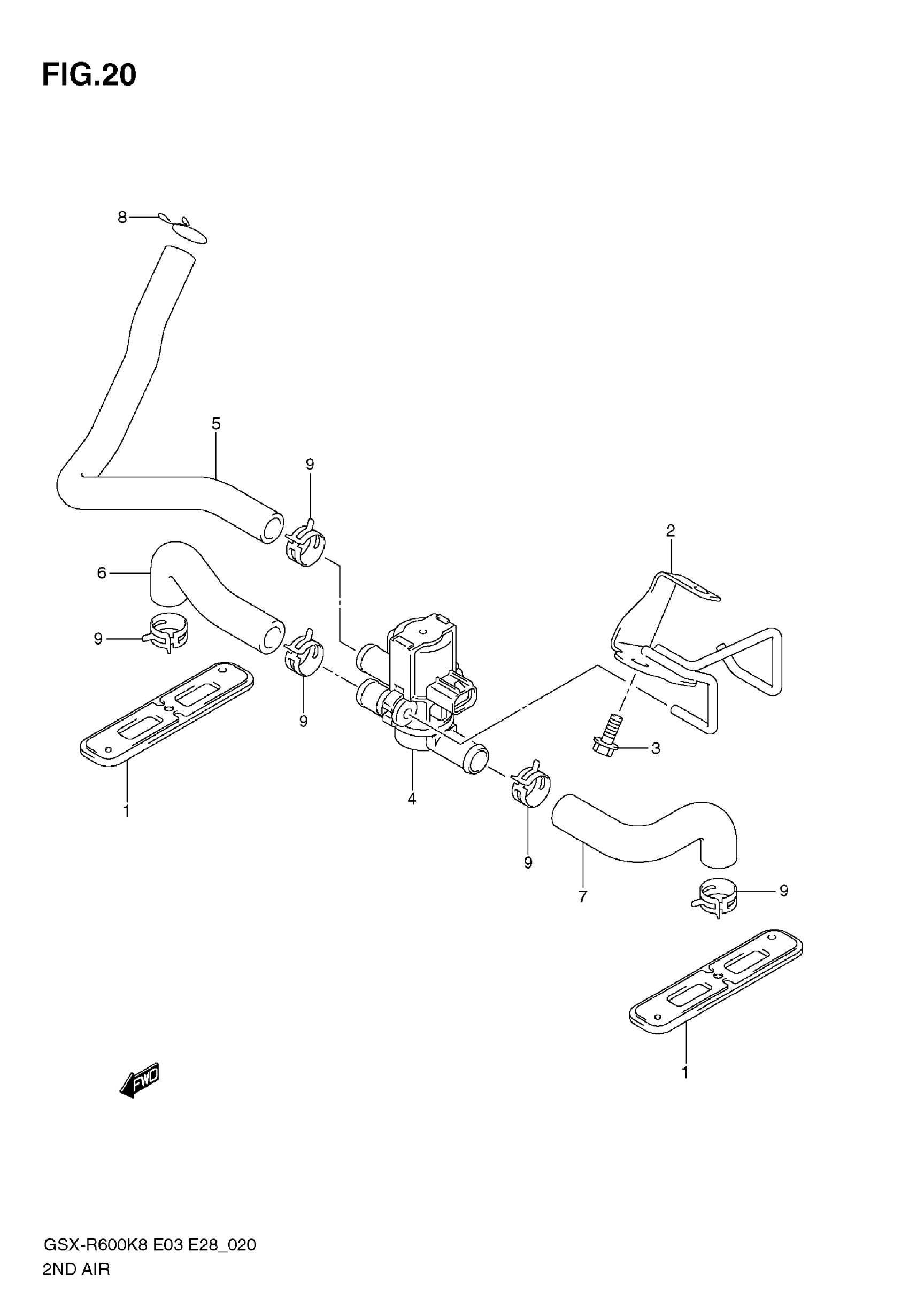

Suzuki GSX-R600 (2009) 2ND AIR Diagram

#

Description

Price

1

VALVE ASSY,2ND AIR REED

18450-01H00

$66.18

2

BRACKET, 2ND AIR VALVE

18610-01H00

Unavailable

3

BOLT

01550-0616A

$1.97

4

VALVE ASSY,AIR CUT This part replaces 18510-29G30.

18510-29G31

$144.57

5

HOSE, 2ND AIR CLEANER

18711-37H00

Unavailable

6

HOSE,2ND AIR VA This part replaces 18461-01H00.

18461-01H01

$13.20

7

HOSE,2ND AIR VA This part replaces 18471-01H00.

18471-01H01

$16.27

8

CLIP

09401-17201

$3.42

9

CLIP

09401-17401

$1.01
