2009 Suzuki GSX-R600 Gasket SET Diagram

← All diagrams

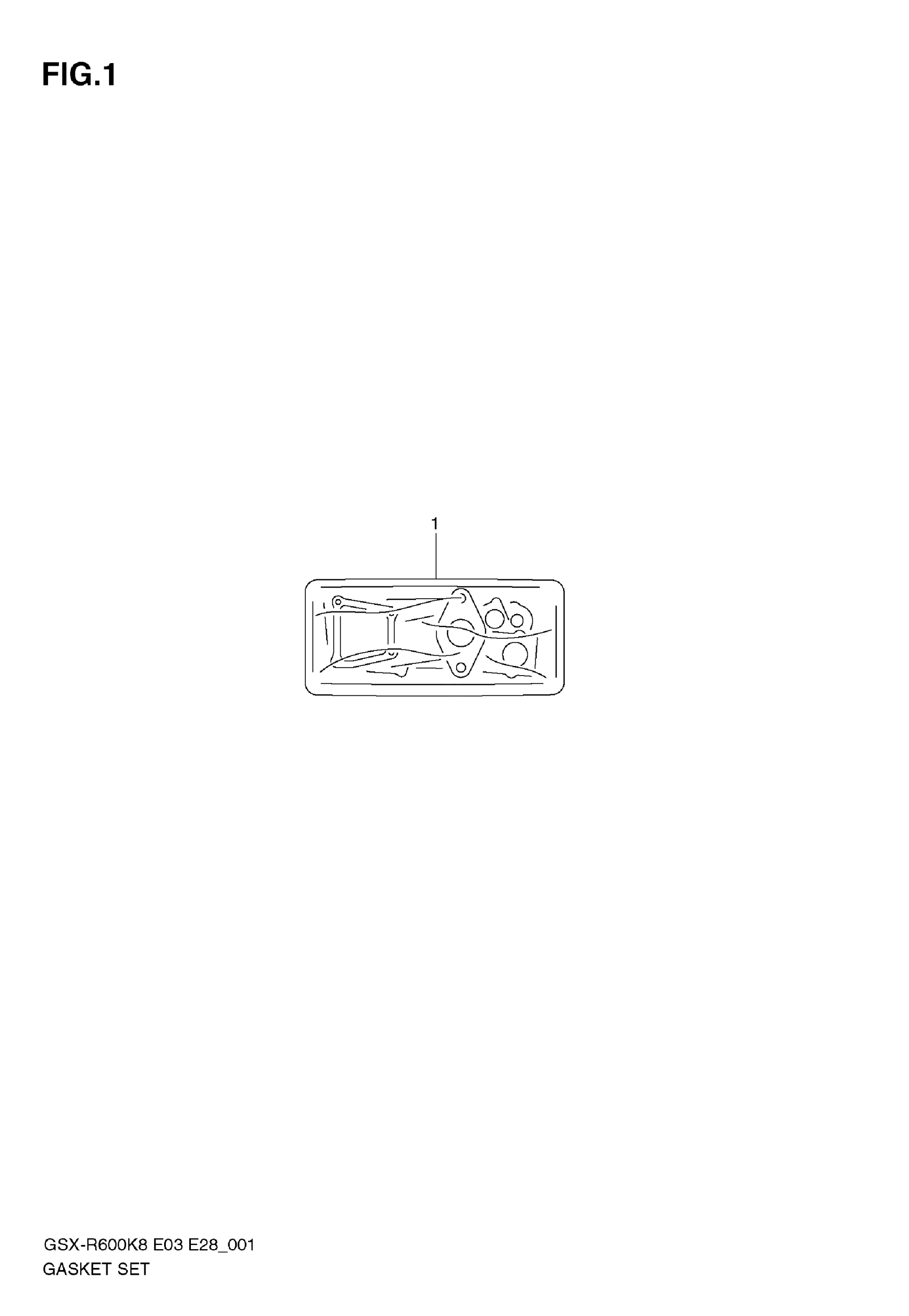

Find the part on the Gasket SET diagram for your 2009 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSX-R600 Gasket SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET SET | OPT; Includes Item(s) 2 - 16 This part replaces 11401-01831.

11401-01832

1
Out of stock

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-37H00

1
Out of stock

3

GASKET, CYLINDER HEAD COVER NO.1 | NOT SHOWN

11173-01H00

1
Out of stock

4

GASKET, CYLINDER HEAD COVER NO.2 | NOT SHOWN

11178-01H00

2
Out of stock

5

WASHER, HEAD COVER | NOT SHOWN

11191-27E00

6
Out of stock

6

GASKET, CLUTCH COVER | NOT SHOWN

11482-01H00

1
Out of stock

7

GASKET, GENERATOR COVER | NOT SHOWN

11483-01H00

1
Out of stock

8

GASKET, BREATHER COVER | NOT SHOWN

11484-01H00

1
Out of stock

9

GASKET, OIL PAN | NOT SHOWN

11489-01H01

1
Out of stock

10

GASKET, TENSIONER ADJUSTER | NOT SHOWN

12837-02H00

1
Out of stock

11

GASKET | NOT SHOWN This part replaces 14181-46E00.

14181-46E10

4
Out of stock

12

O-RING (D:2.4,ID:15.8) | NOT SHOWN

09280-15007

1
Out of stock

13

O RING, OIL FILLER PLUG | NOT SHOWN

09280-17003

1
Out of stock

14

.O-RING (D:2.4,ID:24.7) | NOT SHOWN

09280-25004

1
Out of stock

15

.O-RING (D:3.1,ID:32.7) | NOT SHOWN

09280-33004

1
Out of stock

16

O RING, STARTER GEAR COVER | NOT SHOWN

09280-71008

1
Out of stock
