2009 Suzuki GSX-R600 Seat Diagram

← All diagrams

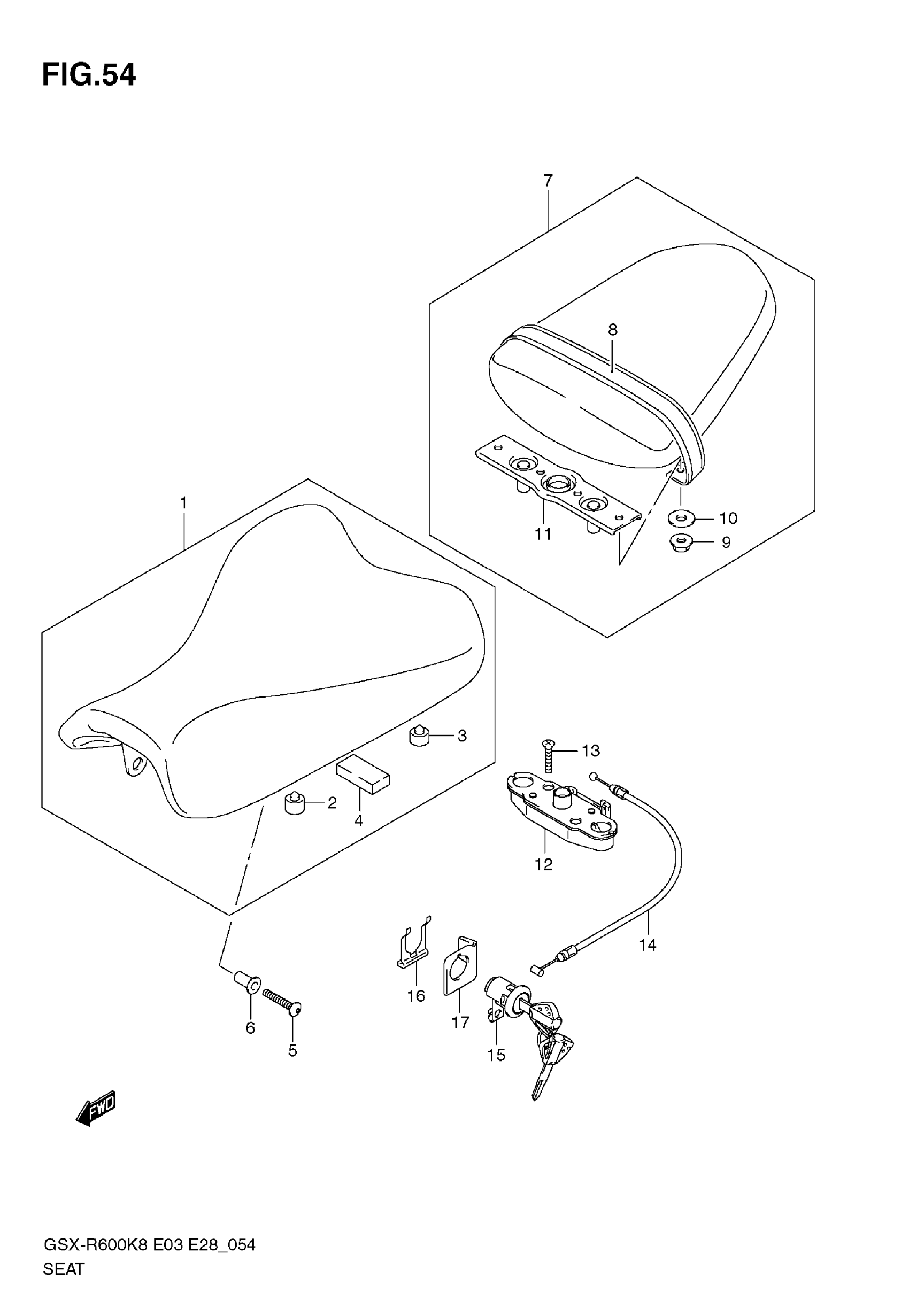

Find the part on the Seat diagram for your 2009 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSX-R600 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY | FOR CRU,EDS,FGH,FGF, YPA,ECE,GLR,019 This part replaces 45100-37H00-6BY.

45100-37H01-6BY

1
Out of stock

1

SEAT ASSY (BLUE) | FOR CWH; Includes Item(s) 2 - 4

45100-37H00-V45

1
Out of stock

2

CUSHION, FRONT

09321-10039

2
Out of stock

3

CUSHION

09321-10011

4
Out of stock

4

CUSHION

45149-37H00

1
Out of stock

5

BOLT, SEAT

09139-06065-XC0

2
Out of stock

6

WASHER, SEAT

09180-06320

2
Out of stock

7

SEAT ASSY,PILLI | FOR CRU,EDS,FGH,FGF, YPA,ECE,GLR,019 This part replaces 45300-37H00-6BY.

45300-37H01-6BY

1
Out of stock

7

SEAT ASSY,PILLI | FOR CWH; Includes Item(s) 8 - 11 This part replaces 45300-37H00-V45.

45300-37H01-V45

1
Out of stock

8

BAND ASSY, SEAT | MODEL K8:FOR CRU,EDS,FGH,FGF

45180-37H00-6BY

1
Out of stock

8

BAND ASSY, SEAT | MODEL K8:FOR CWH

45180-37H00-V45

1
Out of stock

9

NUT

08319-3106A

2
Out of stock

10

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

11

STRIKER,SEAT LO This part replaces 45290-18G00.

45290-18G01

1
Out of stock

12

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

1
Out of stock

13

SCREW, REAR

02122-0630A

2
Out of stock

14

CABLE, SEAT LOCK

45280-13A01

1
Out of stock

15

LOCK SET, SEAT

95700-14810

1
Out of stock

16

PLATE, SEAT LOCK ASSY

45289-11F00

1
Out of stock

17

GUIDE, SEAT LOCK CABLE

45288-14F00

1
Out of stock
