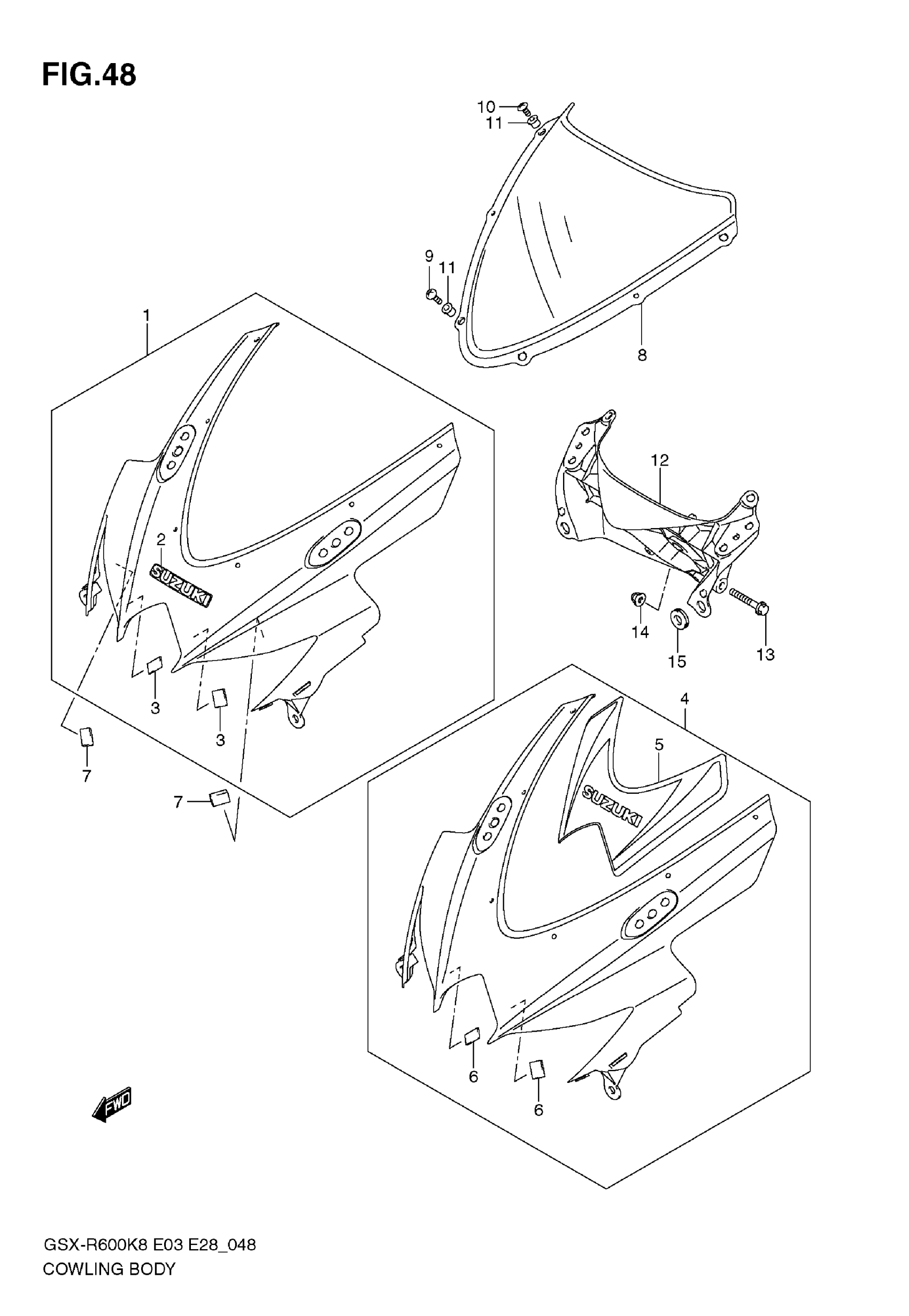

Suzuki GSX-R600 (2009) COWLING BODY (MODEL K8) Diagram

#

Description
Price

1

BODY ASSY,COWLI | FOR CRU This part replaces 94401-37H10-019.

94401-37H11-019

$323.88

1

BODY ASSY,COWLI | FOR EDS This part replaces 94401-37H10-YMF.

94401-37H11-YMF

$339.48

1

BODY ASSY,COWLI | FOR FGH This part replaces 94401-37H10-YME.

94401-37H11-YME

Unavailable

1

BODY ASSY,COWLI | FOR FGF; Includes Item(s) 2 - 3 This part replaces 94401-37H10-YBD.

94401-37H11-YBD

$328.27

2

EMBLEM,"SUZUKI" | FOR 019,YMF,YBD This part replaces 68641-19F00-YU8.

68641-19F01-YU8

$11.20

2

.EMBLEM,"SUZUKI" (BLACK) | FOR YME This part replaces 68641-19F00-019.

68281-24F11-019

$10.71

3

FASTENER

44572-37H00

$9.41

4

BODY ASSY,COWLI | FOR CWH; Includes Item(s) 5 - 6 This part replaces 94401-37H00-YBD.

94401-37H01-YBD

$449.47

5

TAPE,BODY COWL This part replaces 68275-37H00-CVK.

68275-37H01-CVK

$37.30

6

FASTENER

44572-37H00

$9.41

7

CUSHION

92146-37H00

$6.75

8

WINDSCREEN

94611-37H00

$191.88

9

SCREW, FRONT

09125-05133

$2.27

10

SCREW, UPPER

09125-05134

$2.27

11

NUT

09159-05019

$6.63

12

BRACE,COWLING This part replaces 94511-37H00.

94511-37H01

$317.73

13

BOLT

01550-0845A

$2.98

14

NUT

08313-2008A

$2.58

15

CUSHION

09320-08028

$2.82
