2009 Suzuki GSX-R600 Inner Cover Diagram

← All diagrams

Find the part on the Inner Cover diagram for your 2009 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

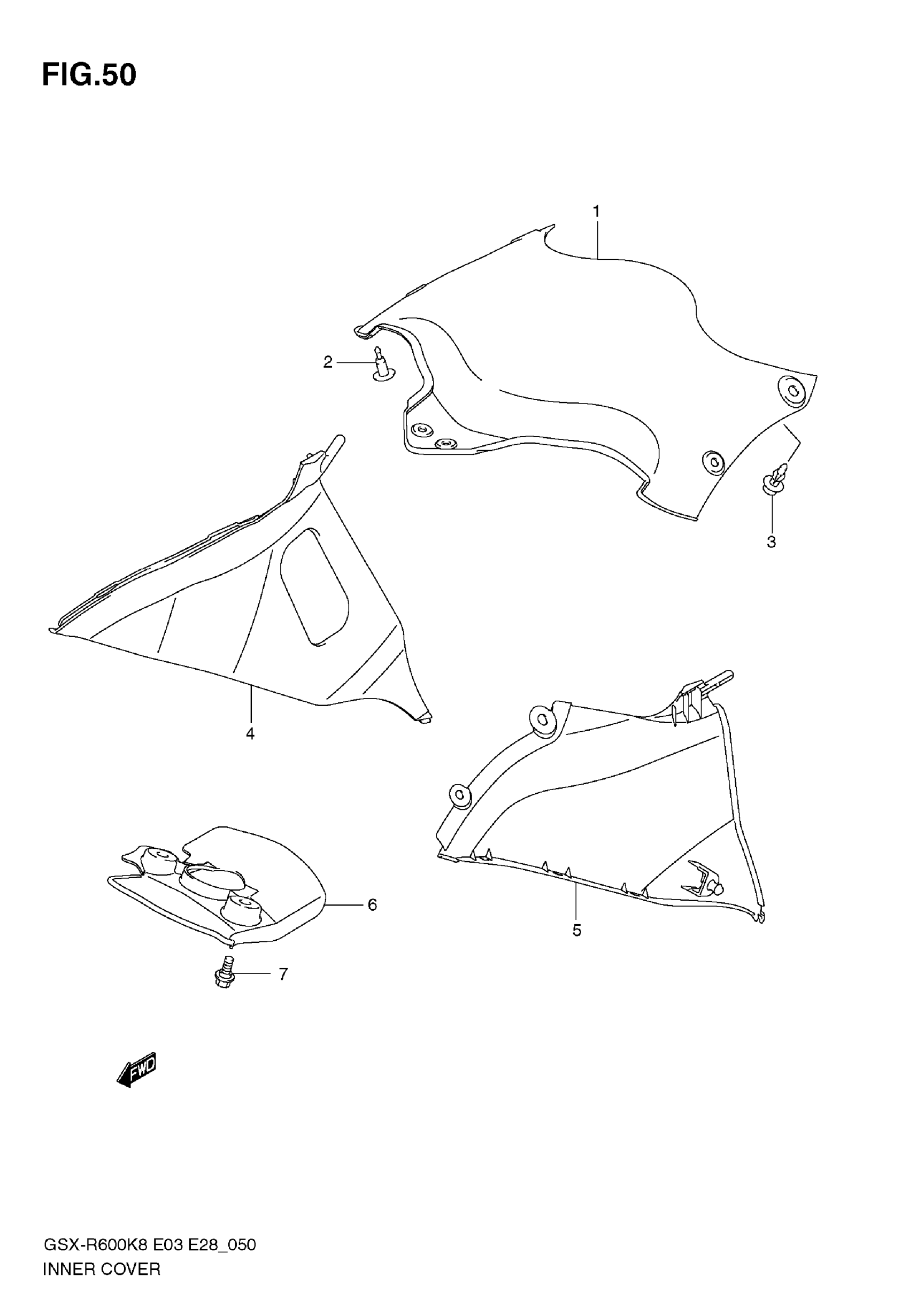

2009 Suzuki GSX-R600 Inner Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, BODY COWL

94419-37H00

1
Out of stock

2

CLIP, FRONT (BLACK)

09409-06314-5PK

4

$2.92

In stock

3

CLIP, REAR (BLACK)

09409-08308-5ES

2

$2.10

In stock

4

COWL, COVER INNER RH

94461-37H00

1

$45.53

In stock

5

COWL, COVER INNER LH

94462-37H00

1

$45.53

In stock

6

COVER,LWR BRACKET

94458-01H00

1
Out of stock

7

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

2
Out of stock
← Front Fender Label →
