2007 Suzuki GSX-R600 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2007 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

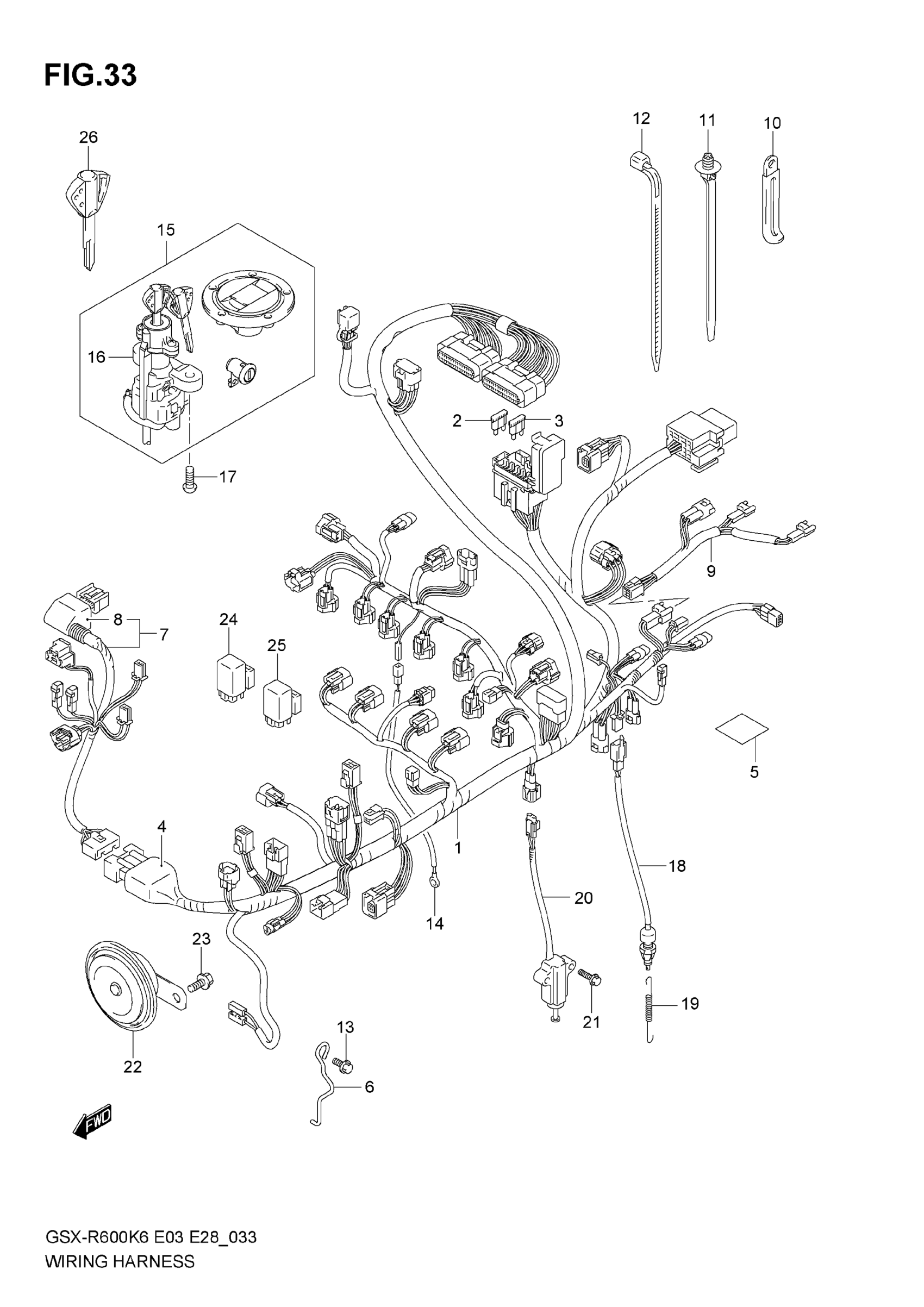

2007 Suzuki GSX-R600 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

FUSE (10A)

09481-10501

4
Out of stock

3

FUSE (15A)

09481-15501

2
Out of stock

4

COVER

36618-18G00

1
Out of stock

5

2

$3.92

In stock

6

GUIDE, WIRING HARNESS

36619-01H00

2

$9.50

In stock

7

1

$263.42

In stock

8

COVER, SPEEDOMETER

36618-41G00

1
Out of stock

9

WIRE, REAR COMB

36855-01H00

1

$69.00

In stock

10

CLAMP (L:45)

09404-06429

4
Out of stock

11

CLAMP (L:170)

09407-17403

3
Out of stock

12

CLAMP (L:125)

09407-14403

3
Out of stock

13

BOLT

01550-0612A

2
Out of stock

14

1

$13.83

In stock

15

LOCK SET This part replaces 37101-40820.

37101-40824

1
Out of stock

16

.LOCK ASSY,STEERING This part replaces 37100-41G10.

37100-41G12

1
Out of stock

17

SCREW

09139-08016

2
Out of stock

18

1

$20.62

In stock

19

SPRING This part replaces 09443-06087-A05.

09443-06087

1
Out of stock

20

1

$74.92

In stock

21

BOLT

01550-0616A

2
Out of stock

22

HORN ASSY

38500-01H00

1
Out of stock

23

BOLT (8X16)

01550-0816A

1
Out of stock

24

RELAY ASSY, FAN MOTOR

38740-24X50

1
Out of stock

25

RELAY ASSY, FUEL PUMP

38740-24X50

1
Out of stock

26

KEY,BLANK (IMMOBI) | OPT This part replaces 37146-41G10.

37146-41G00

1
Out of stock
