2007 Suzuki GSX-R600 Signal Generator Diagram

← All diagrams

Find the part on the Signal Generator diagram for your 2007 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

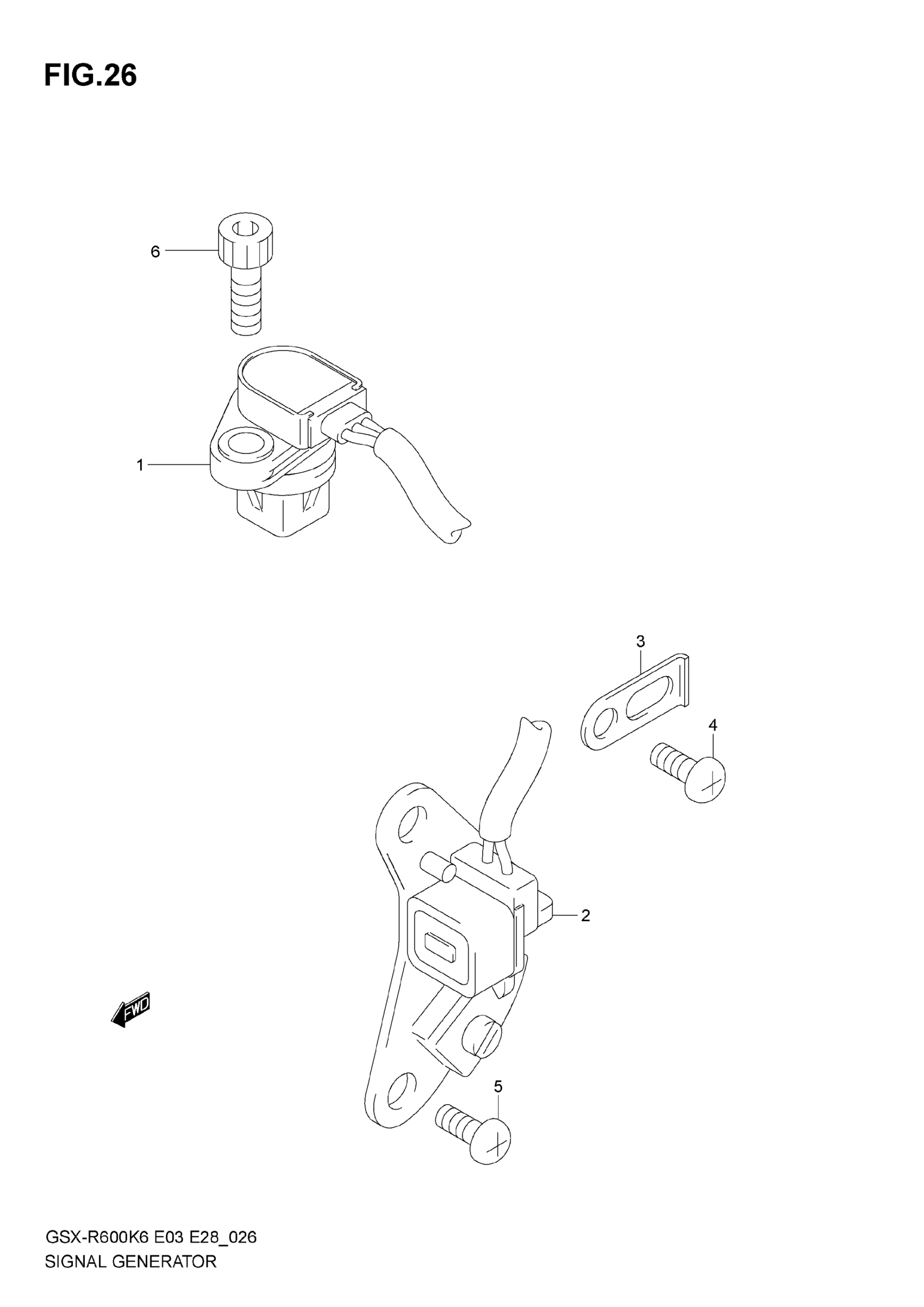

2007 Suzuki GSX-R600 Signal Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SENSOR ASSY,CAM POSITION This part replaces 33220-01H00.

33220-01H01

1
Out of stock

2

1

$276.97

In stock

3

CLAMP, SIGNAL GENERATOR

33115-33E00

1
Out of stock

4

SCREW, CLAMP

02112-0510A

1

$1.49

In stock

5

SCREW, STATOR

02112-0510A

2

$1.49

In stock

6

BOLT This part replaces 07130-0616A.

07130-0616B

1
Out of stock
