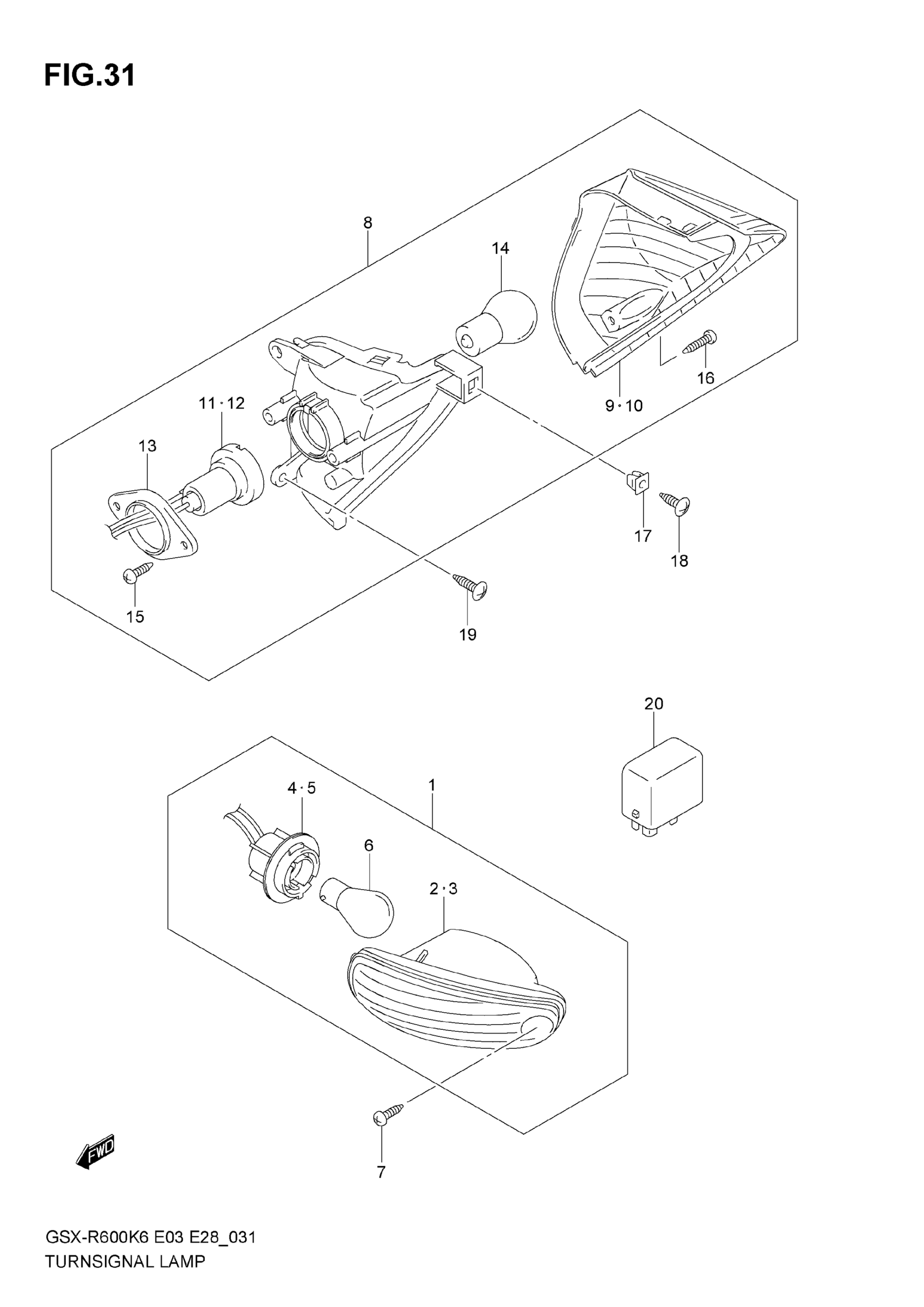

Suzuki GSX-R600 (2007) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TURN SIGNAL,R

35601-41G00

$51.81

1

LAMP ASSY,FR TURN SIGNAL,L | Includes Item(s) 2 - 6

35602-41G00

$51.81

2

.LAMP UNIT,R

35610-41G00

$50.15

3

.LAMP UNIT,L

35630-41G00

$34.90

4

.SOCKET,R

35618-10G50

$34.12

5

.SOCKET,L

35638-10G50

$32.85

6

BULB (12V21W)

09471-12186

$16.18

7

SCREW (4X20)

09132-04032

$1.98

8

LAMP ASSY, REAR, R

35603-41G01

$92.52

8

LAMP ASSY, REAR, L | Includes Item(s) 9 - 16

35604-41G01

$89.50

9

LENS, R

35652-41G00

$31.38

10

LENS, L

35672-41G00

$35.37

11

.SOCKET & CORD,R

35658-41G00

$36.30

12

.SOCKET & CORD,L

35678-41G00

$36.30

13

PLATE, REAR

35716-07A30

$11.18

14

BULB (12V21W)

09471-12186

$16.18

15

SCREW This part replaces 03211-04123.

03211-0412A

$0.73

16

SCREW

03211-0416A

$1.43

17

NUT, REAR TURNSIGNAL

09148-04021

$1.43

18

SCREW, REAR

03541-0412A

$1.37

19

SCREW, REAR

03541-0512A

$1.37

20

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
