2007 Suzuki GSX-R600 Throttle Body Diagram

← All diagrams

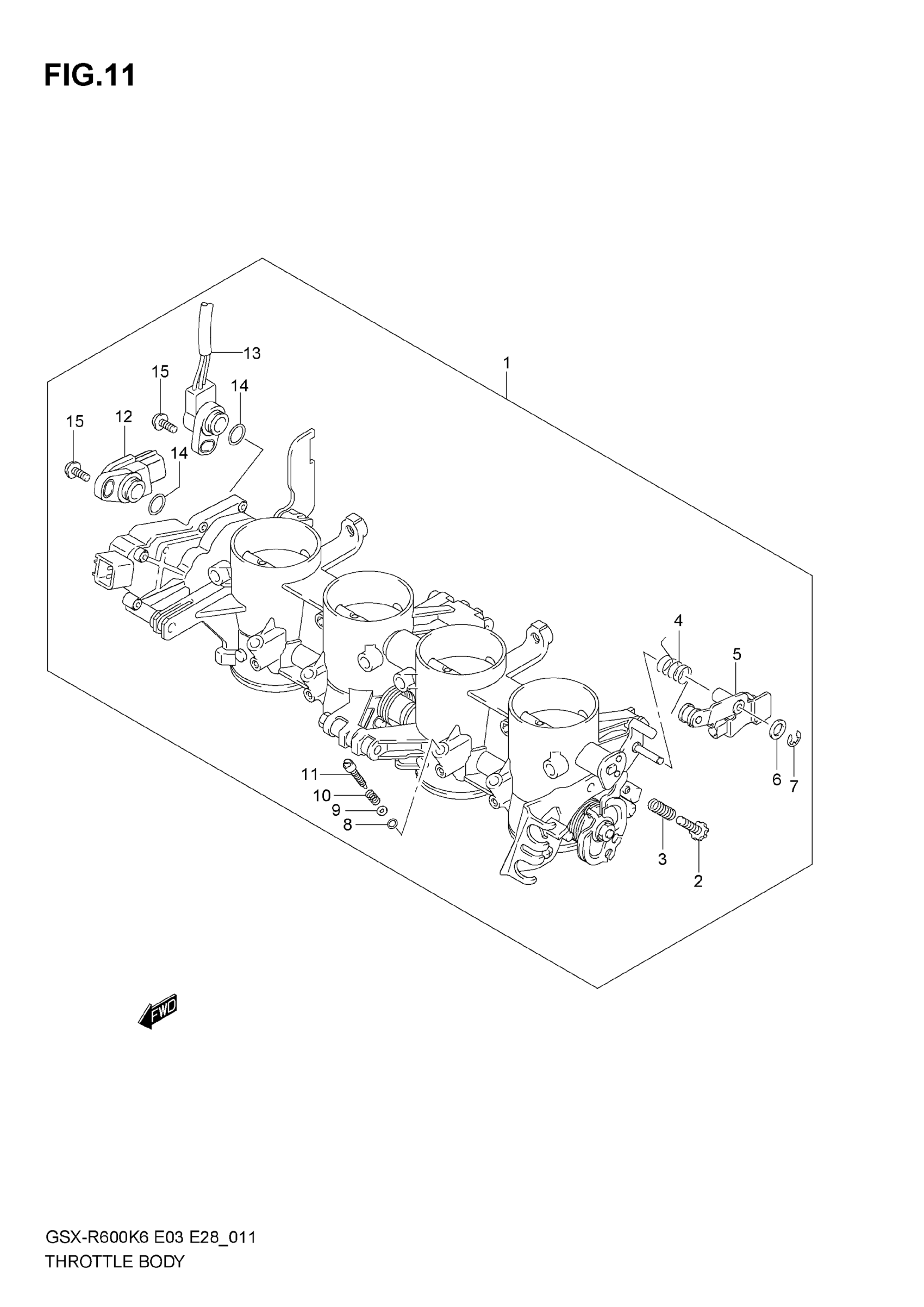

Find the part on the Throttle Body diagram for your 2007 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki GSX-R600 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY,THROT | E3/E28 This part replaces 13405-01H00.

13405-01H02

1
Out of stock

1

BODY ASSY,THROT | E33; Includes Item(s) 2 - 15 This part replaces 13405-01H10.

13405-01H11

1
Out of stock

2

SCREW

13267-20E20

1
Out of stock

3

SPRING

13268-054A0

1
Out of stock

4

TORSION SPRING

13426-29G00

1
Out of stock

5

LEVER ASSY

13420-44G00

1
Out of stock

6

PACKING

13427-29G00

1
Out of stock

7

E RING

13424-29G00

1
Out of stock

8

O-RING This part replaces 13295-29900.

13295-29901

4
Out of stock

9

WASHER

13606-47A00

4
Out of stock

10

SPRING,THROTTLE SCREW

13268-48700

4

$4.33

In stock

11

SCREW

13269-33E00

4
Out of stock

12

SENSOR ASSY

13580-29G00

1
Out of stock

13

SENSOR ASSY, THROTTLE SUB This part replaces 13580-40F30.

13580-40F31

1
Out of stock

14

.O-RING This part replaces 13575-29G00.

13575-29G01

2
Out of stock

15

SCREW

13605-02F00

2
Out of stock
