2007 Suzuki GSX-R600 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2007 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

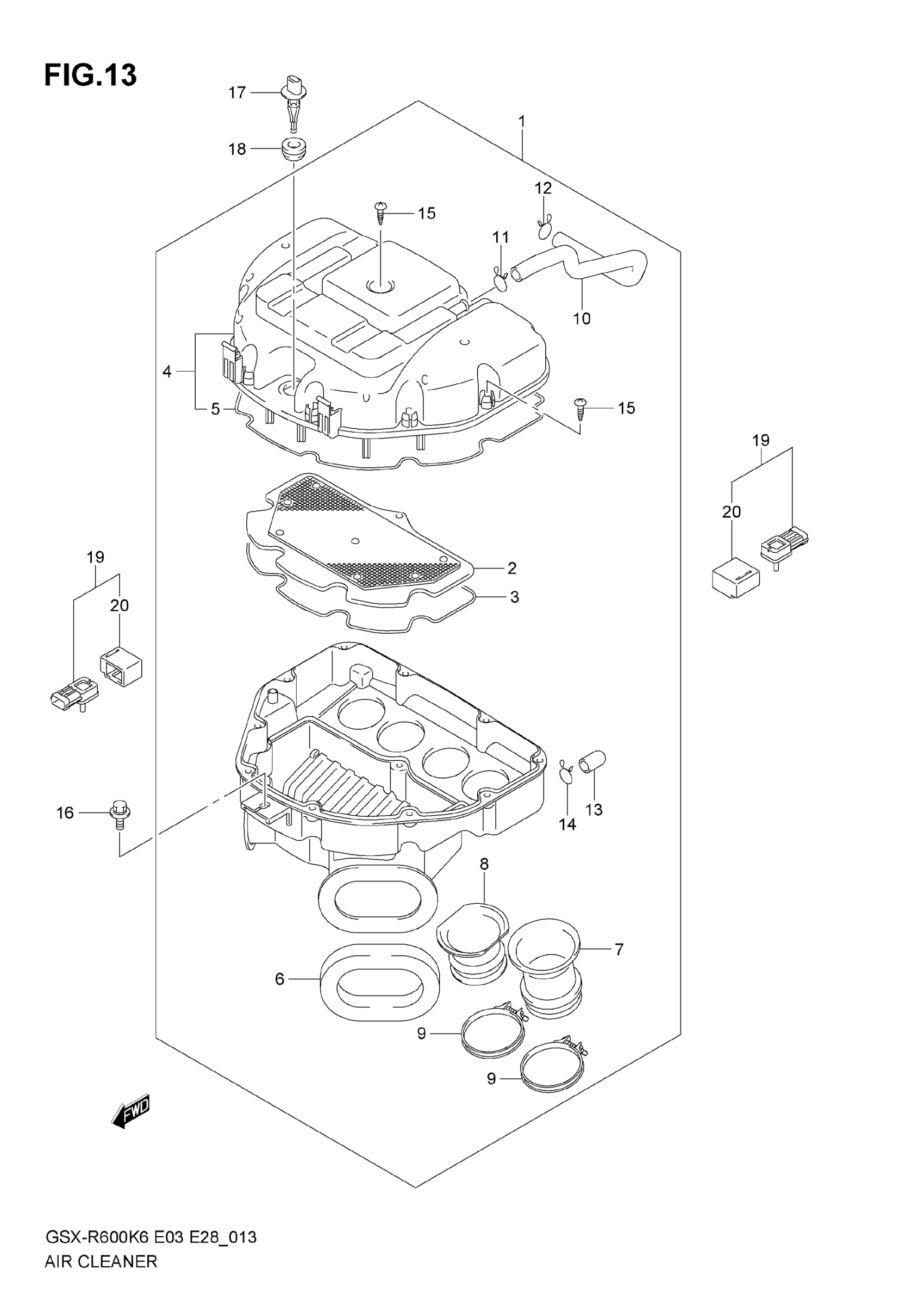

2007 Suzuki GSX-R600 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | MODEL K6 This part replaces 13700-01H00-E00.

13700-01H01

1
Out of stock

1

CLEANER ASSY, AIR | MODEL K7; Includes Item(s) 2 - 15

13700-01H01

1
Out of stock

2

FILTER ASSY

13780-01H00

1

$40.03

In stock

3

GASKET, CASE

13756-01H00

1

$6.55

In stock

4

CAP

13740-01H00

1
Out of stock

5

GASKET, CAP

13746-01H00

1

$8.83

In stock

6

CUSHION, DUCT

13736-01H00

2

$9.75

In stock

9

4

$5.20

In stock

10

1

$22.17

In stock

11

CLIP

09401-14301

1

$2.50

In stock

12

CLIP

09401-16401

1

$3.10

In stock

13

.PLUG

13859-41B10

1

$7.56

In stock

14

CLIP

09401-14301

1

$2.50

In stock

15

.SCREW

13831-35F00

11

$2.64

In stock

16

1

$2.61

In stock

17

SENSOR, AIR TEMPERATURE

13650-52G00

1
Out of stock

18

.GROMMET,AIR TEMP SENSOR This part replaces 13655-77E00.

13655-77E10

1
Out of stock

19

2

$304.30

In stock

20

HOLDER, SENSOR

15625-29G00

2

$14.00

In stock
