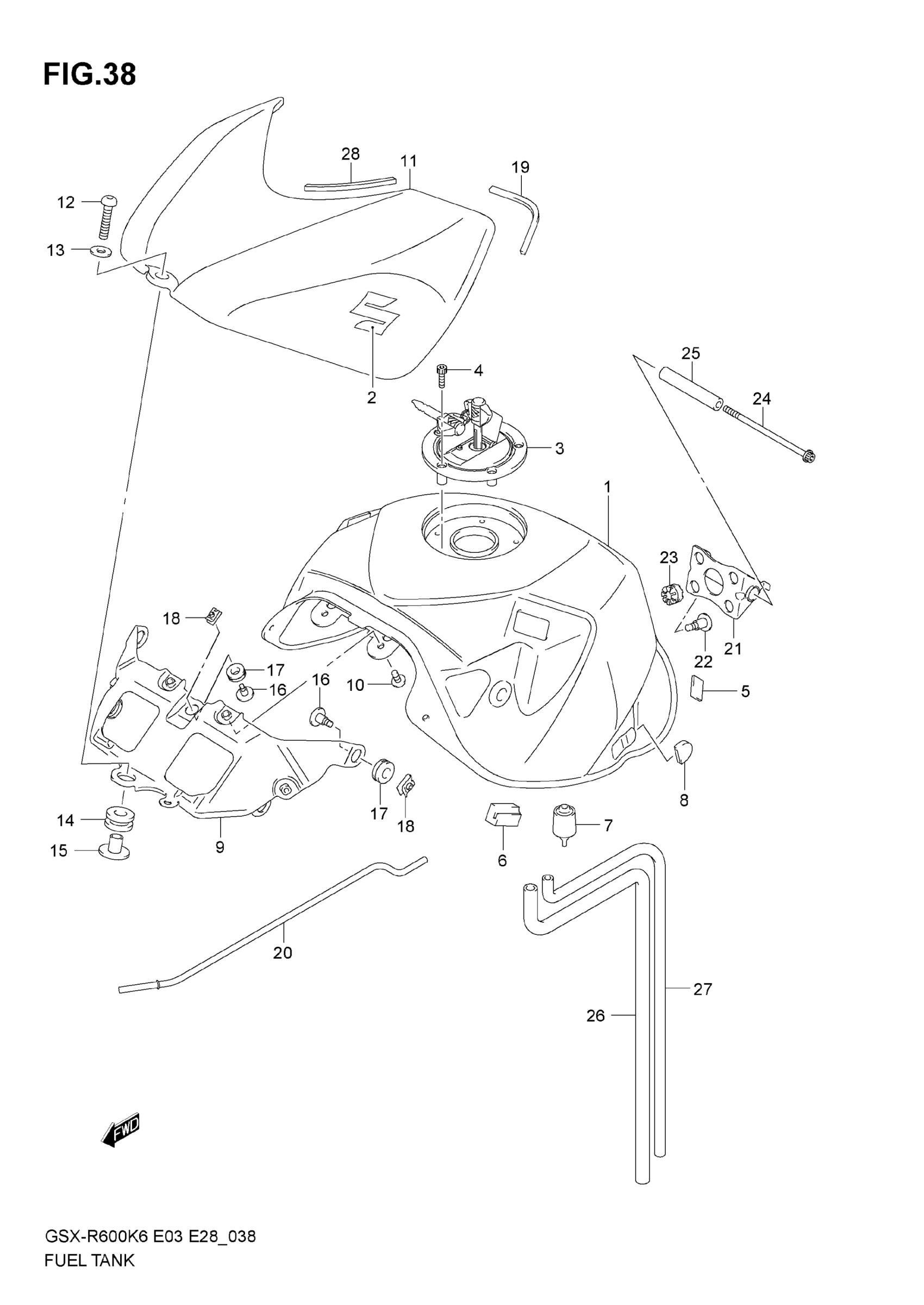

Suzuki GSX-R600 (2007) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL (RED) | E3,E28 FOR BZG,DYJ

44100-01H00-YHH

Unavailable

1

TANK ASSY, FUEL (BLACK) | E3,E28 FOR CAD,CRU

44100-01H00-019

Unavailable

1

TANK ASSY, FUEL (BLUE) | E3,E28 FOR CWH,DYH

44100-01H00-YKY

Unavailable

1

TANK ASSY, FUEL (SILVER) | MODEL K6 E3,E28 FOR CWJ

44100-01H00-YD8

Unavailable

1

TANK ASSY, FUEL (RED) | E33 FOR BZG,DYJ

44100-01H20-YHH

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33 FOR CAD,CRU

44100-01H20-019

Unavailable

1

TANK ASSY,FUEL | E33 FOR CWH,DYH This part replaces 44100-01H20-YKY.

44110-01H20-13L

Unavailable

1

TANK ASSY, FUEL (SILVER) | MODEL K6 E33 FOR CWJ

44100-01H20-YD8

Unavailable

2

EMBLEM

68111-18G20

$29.56

3

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

$108.21

3

CAP SET,FUEL TA | E33 This part replaces 44200-16860.

44200-16862

$270.23

4

BOLT

09106-05017

$2.80

5

FASTENER

44572-13G00

$10.13

6

CUSHION,FUEL TA This part replaces 44541-33E00.

44541-33E01

$8.08

7

CUSHION,FUEL TANK RR

44542-41G00

$7.04

8

CUSHION, SIDE COVER

09329-18001

$1.89

9

BRACKET, FRONT

44520-01H00

Unavailable

10

SCREW, BRACKET

09139-06122

$2.80

11

COVER, TANK FRONT (RED) | FOR BZG,DYJ

44291-01H00-YHH

$395.23

11

COVER, TANK FRONT (BLACK) | FOR CAD,CRU

44291-01H00-019

$387.93

11

COVER, TANK FRONT (BLUE) | FOR CWH,DYH

44291-01H00-YKY

$387.93

11

COVER, TANK FRONT (SILVER) | FOR CWJ

44291-01H00-YD8

Unavailable

12

SCREW, FRONT

09106-08156

$7.16

13

WASHER

09160-08054

$1.43

14

CUSHION This part replaces 09320-12053.

09320-12092

$3.08

15

SPACER This part replaces 09180-08174-A05.

09180-08174

$5.62

16

SCREW, TANK COVER

09139-05078

$3.19

17

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

18

NUT

09148-05052

$3.04

19

CUSHION, TANK COVER NO.1

44277-01H00

$4.87

20

STAY, FUEL TANK

44574-35F00

$13.89

21

BRACKET,FUEL TANK This part replaces 44530-41G00.

44530-41G01

$45.77

22

SCREW (6X22) This part replaces 09139-06132.

09139-06191

$3.69

23

CUSHION

09320-08071

$3.05

24

BOLT, JOINT

09106-06119

$5.21

25

SPACER, JOINT

44561-18G00

$15.52

26

HOSE,TANK WATER This part replaces 44423-41G00.

44423-41G01

$15.84

27

HOSE,TANK BREAT This part replaces 44424-41G00.

44424-41G01

$17.45

28

CUSHION, TANK COVER NO.2

44278-01H00

$4.20
