2007 Suzuki GSX-R600 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2007 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

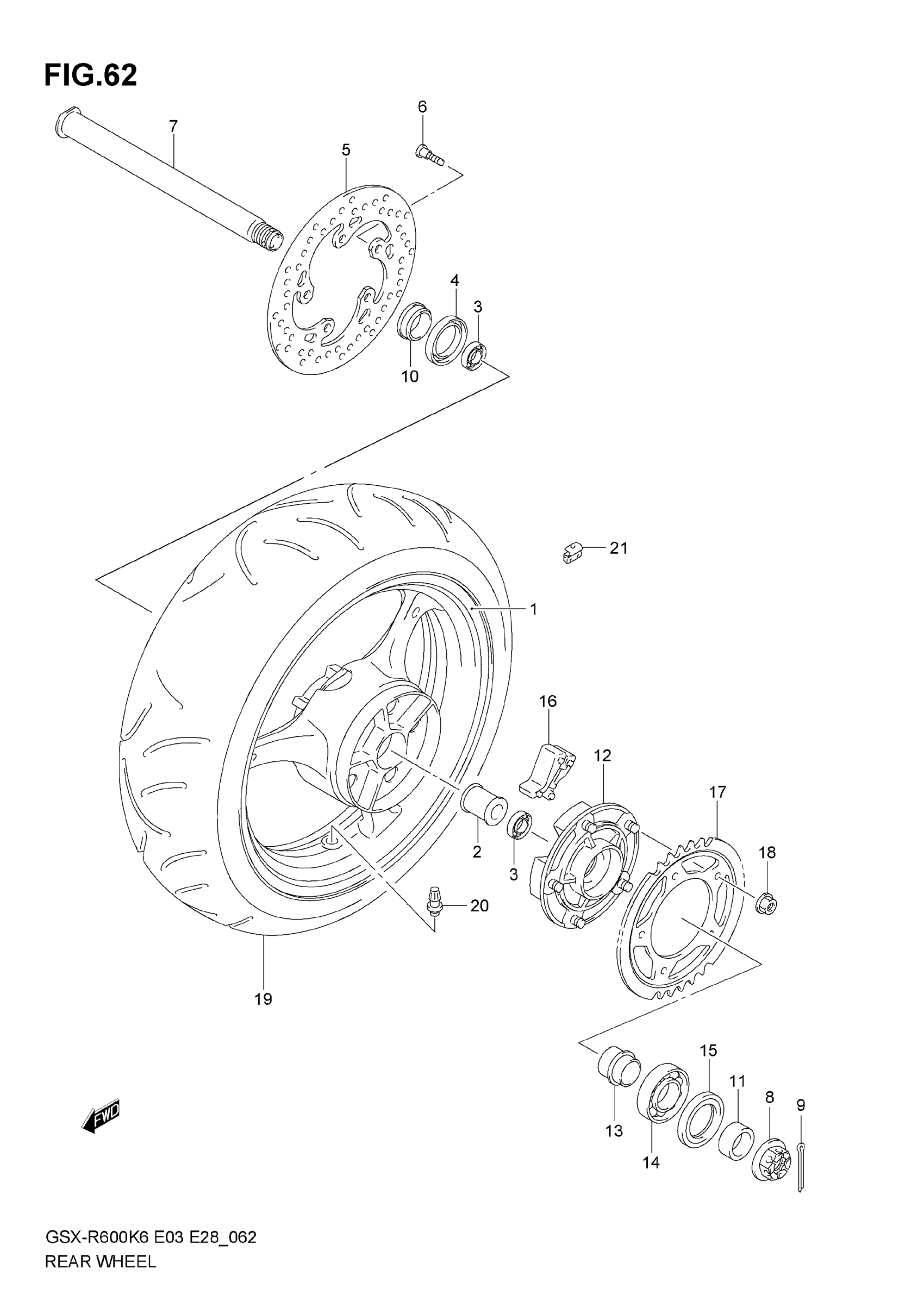

2007 Suzuki GSX-R600 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,509.01

In stock

1

WHEEL, REAR (17M/CXMT5.50) (BLUE) | FOR CWH

64111-01H00-YLY

1
Out of stock

2

SPACER, HUB BEARING

64731-01H00

1

$69.90

In stock

3

BEARING This part replaces 09262-28043.

09262-28063

2
Out of stock

4

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

1
Out of stock

5

DISC,RR BRAKE

69211-18G00

1
Out of stock

6

BOLT

09106-08160

5
Out of stock

7

AXLE, REAR This part replaces 64711-49G10-A05.

64711-49G10

1
Out of stock

8

1

$23.29

In stock

9

COTTER PIN

04111-4035A

1
Out of stock

10

SPACER,REAR AXLE,R This part replaces 64741-35F00.

64741-35F10

1
Out of stock

11

SPACER, AXLE LH

64751-35F00

1

$22.85

In stock

13

RETAINER, SPROCKET DRUM This part replaces 64733-35F00-A05.

64733-35F00

1
Out of stock

14

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

1
Out of stock

15

SEAL (39X65X7)

09285-39001

1
Out of stock

16

ABSORBER, HUB SHOCK

64651-44G00

5

$18.20

In stock

18

NUT

08319-3110A

5
Out of stock

19

TIRE, REAR, 180/55 ZR17M/C (73W)(BRIDGESTONE) | BT014 R RADIAL N

65110-01H00

1
Out of stock

20

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

21

1

$6.57

In stock

21

1

$4.02

In stock

21

1

$4.69

In stock
