2007 Suzuki GSX-R600 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2007 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

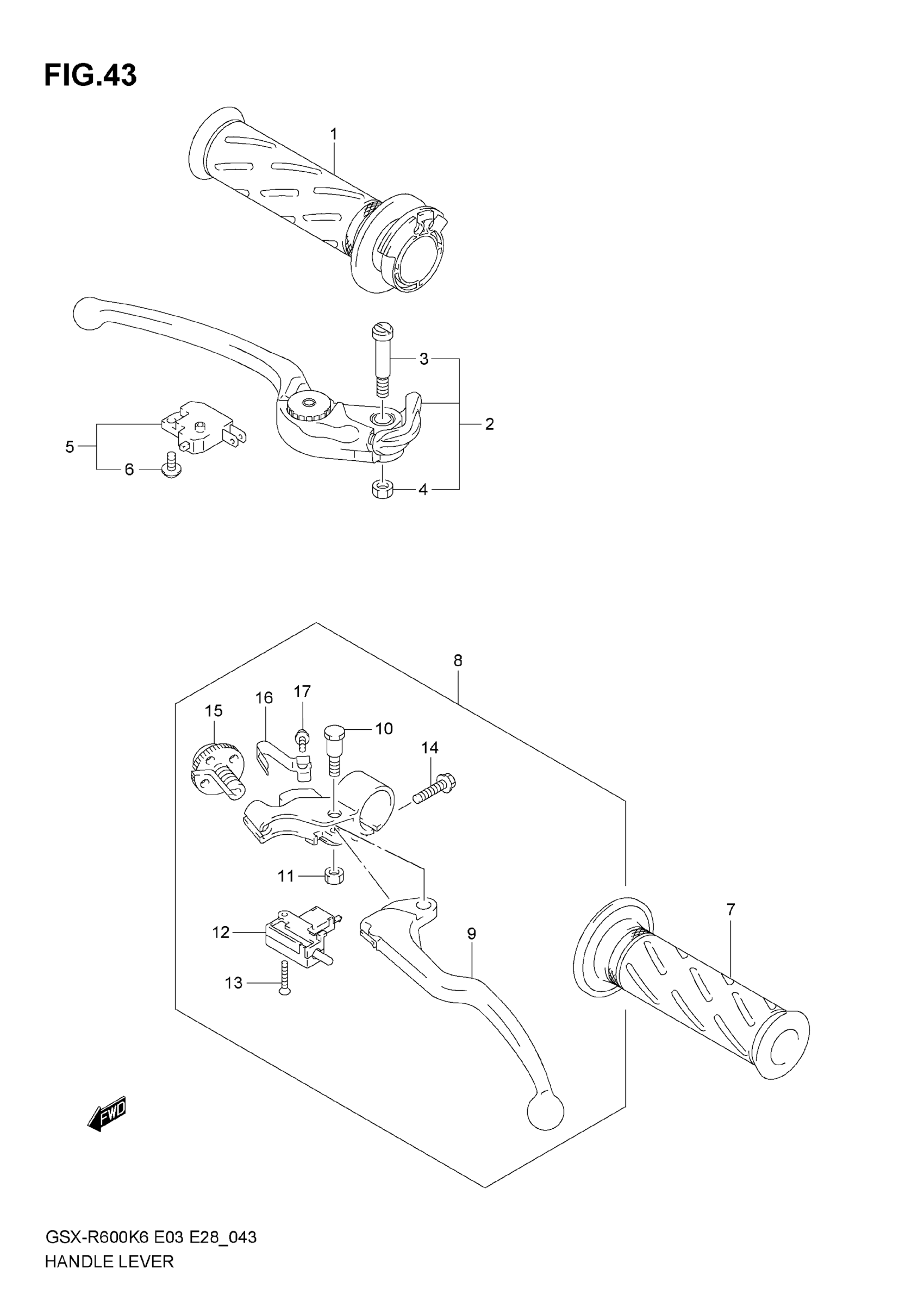

2007 Suzuki GSX-R600 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE (BLACK) This part replaces 57110-29G00.

57110-29G02-291

1
Out of stock

2

LEVER ASSY, BRAKE | Includes Item(s) 3 - 4 This part replaces 57300-29G00.

57300-29G01

1
Out of stock

3

BOLT, PIVOT

57431-29G00

1
Out of stock

4

NUT,LEVER PIVOT

57433-09F00

1
Out of stock

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

1
Out of stock

6

SCREW

57465-17C00

1
Out of stock

7

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

1
Out of stock

8

LEVER ASSY,CLUT | Includes Item(s) 9 - 17 This part replaces 57500-41G10.

57500-41G11

1
Out of stock

9

LEVER, CLUTCH

57621-41G00

1
Out of stock

10

BOLT

57431-41G00

1
Out of stock

11

.NUT This part replaces 08319-21063.

08319-2106B

1
Out of stock

12

.SWITCH,CLUTCH

57560-05A00

1
Out of stock

13

SCREW This part replaces 02122-03208.

02122-0320A

1
Out of stock

14

..BOLT This part replaces 01547-06203.

01547-0620B

1
Out of stock

15

NUT, CABLE ADJUSTER

57641-33E21

1
Out of stock

16

SPRING

57644-33E00

1
Out of stock

17

SCREW, SPRING

57642-33E00

1
Out of stock
