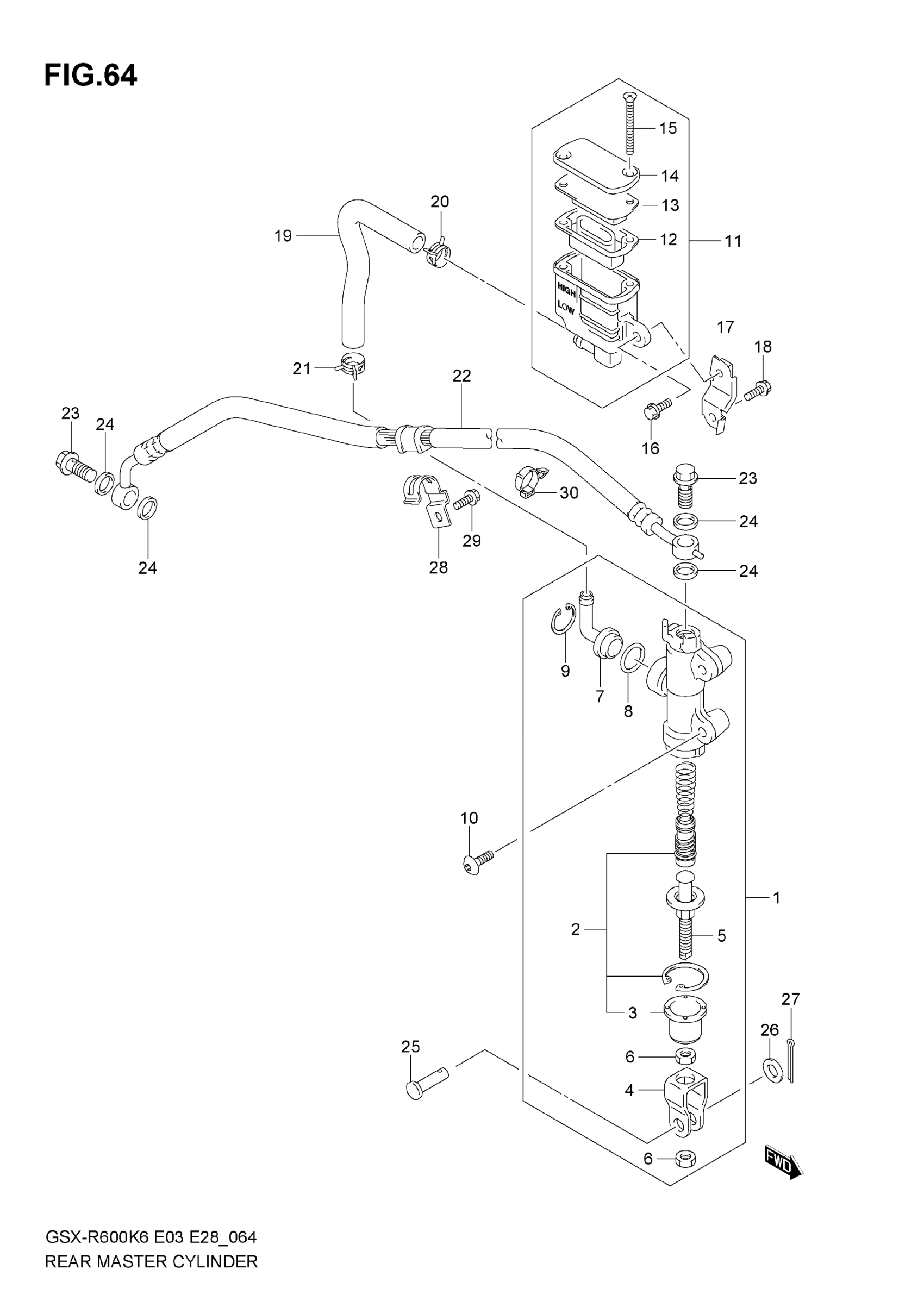

Suzuki GSX-R600 (2007) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 8

69600-01H00

$335.50

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$24.34

3

.BOOT

69691-00A00

$5.00

4

YOKE

69692-27A30

$13.02

5

ROD, PUSH

69670-48B00

$35.80

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-00B20

$6.42

8

O RING

69686-34200

$2.80

9

CIRCLIP

69674-00B20

$3.73

10

BOLT

09139-06125

$2.80

11

TANK ASSY,RESERVOIR | Includes Item(s) 12 - 15 This part replaces 69740-01H00.

69740-18K00

$25.72

12

DIAPHRAGM

69667-01H00

$7.12

13

PLATE, DIAPHRAGM

69668-01H00

$6.75

14

CAP

69669-01H00

Unavailable

15

SCREW

69689-01H00

$5.02

16

BOLT, RESERVOIR TANK

01547-0612A

$2.01

17

BRACKET, RR RESERVOIR TANK

69750-01H00

$13.30

18

BOLT, BRACKET

01547-0612A

$2.01

19

HOSE, RESERVOIR TANK

69730-01H00

Unavailable

20

CLIP This part replaces 09401-12404-C02.

09401-12404

$2.37

21

CLIP This part replaces 09401-15407-A05.

09401-15407

$3.08

22

HOSE This part replaces 69480-01H00.

69480-01H01

$110.50

23

UNION This part replaces 09360-10040-A08.

09360-10062

$5.81

24

WASHER (10X15X1.5)

09161-10009

$1.83

25

PIN (6X18.2) This part replaces 09200-06037-A05.

09200-06068

$3.71

26

WASHER

08322-0106A

$1.83

27

PIN, COTTER

04111-2015A

$1.22

28

CLAMP, RR BRAKE HOSE

69268-01H00

$12.82

29

BOLT

01547-0612A

$2.01

30

GUIDE, RR BRAKE HOSE

09403-17306

$2.64
