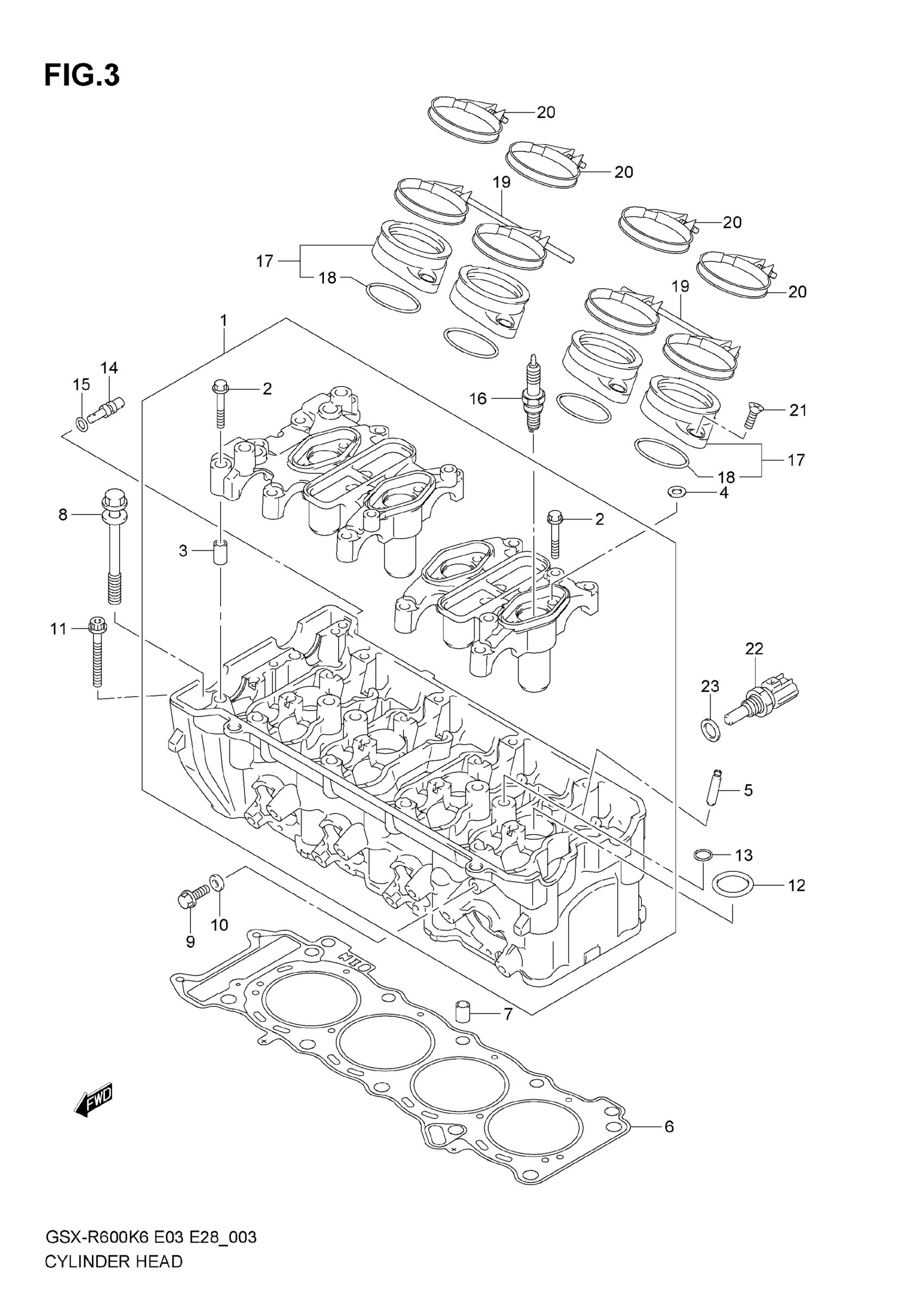

Suzuki GSX-R600 (2007) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 3

11100-01H00

Unavailable

2

BOLT

09103-06266

$2.13

3

PIN

09206-08007

$2.62

4

WASHER

09168-06018

$1.70

5

GUIDE, VALVE (OS 0.5) | OPT

11115-29G70

$30.95

6

GASKET, CYLINDER HEAD

11141-01H00

$70.67

7

PIN

04211-11169

$1.77

8

BOLT (10X95)

11117-29G00

$8.18

9

BOLT, OIL GALLERY

09103-06222

$2.28

10

GASKET

09168-06023

$2.01

11

BOLT, CYLINDER HEAD

07120-0650A

$2.90

12

O-RING

11179-81402

$3.79

13

O RING

09280-11001

$1.99

14

JET, OIL

09493-80005

$17.57

15

O RING

09280-04004

$1.76

16

PLUG SPARK (CR9E)

09482-00458

$5.75

16

SPARK PLUG (DENSO,U27ESR-N)

09482-00459

$5.58

16

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$5.99

16

SPARK PLUG (NGK,CR10E) | OPT

09482-00460

$5.75

16

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

$5.58

16

SPARK PLUG (DENSO,U31ESR-N) | OPT

09482-00461

$11.56

17

PIPE ASSY,INTAK | Includes Item(s) 18 This part replaces 13101-01H00.

13101-01H01

$54.37

18

O RING (D:2.40,ID:41.7)

09280-42003

$7.80

19

CLAMP,INTAKE PI | MODEL K6 This part replaces 13170-01H00-E00.

13170-01H00

$33.67

20

CLAMP | MODEL K7 This part replaces 09402-56208.

09402-56901

$4.84

21

BOLT (6X18.4) This part replaces 09120-06007-A05.

09120-06007

$2.90

22

SENSOR, WATER TEMPERATURE

13650-10G00

$79.85

23

GASKET

09168-12017

$1.97
