2007 Suzuki GSX-R600 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2007 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

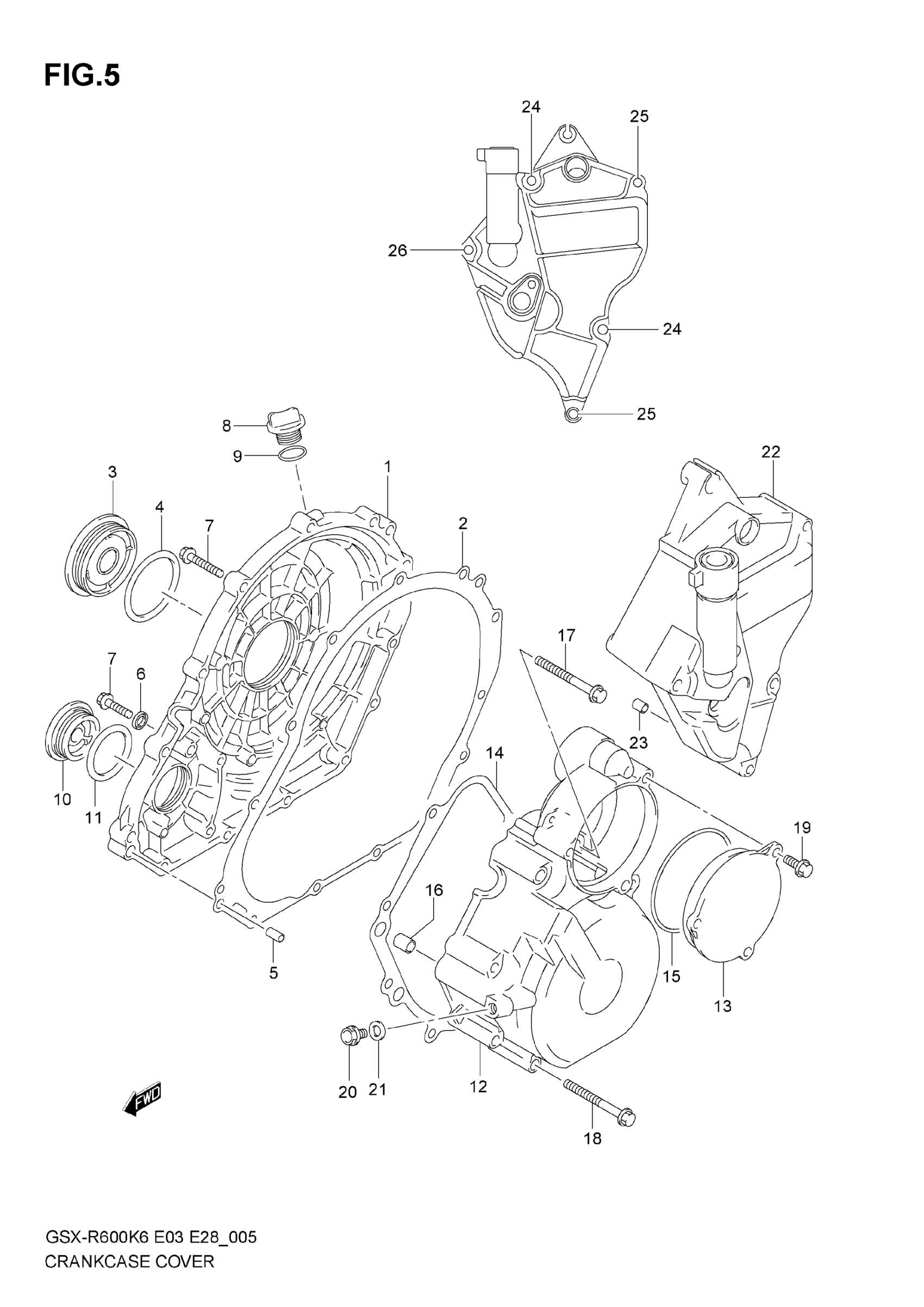

2007 Suzuki GSX-R600 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-01H00

1
Out of stock

2

GASKET, CLUTCH COVER

11482-01H00

1
Out of stock

3

CAP,CLUTCH RELEASE ADJUST

11342-41G10

1
Out of stock

4

O RING (D:2.4,ID:52.6)

09280-54001

1
Out of stock

5

PIN

04211-09189

2

$1.77

In stock

6

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

7

BOLT

09103-06213

13

$2.63

In stock

8

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

9

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

10

PLUG, SHAFT HOLE

09259-36021

1

$13.37

In stock

11

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

12

COVER,GENERATOR This part replaces 11351-01H00.

11351-01H02

1
Out of stock

13

CAP,STARTER IDLE GEAR

11352-01H00

1
Out of stock

14

GASKET

11483-01H00

1
Out of stock

15

O RING

09280-71008

1
Out of stock

16

PIN

04211-09149

1
Out of stock

17

BOLT

09103-06212

1
Out of stock

18

BOLT

09103-06238

7

$2.85

In stock

19

BOLT

09103-06274

3

$2.18

In stock

20

PLUG, OIL GALLERY

09103-06222

1
Out of stock

21

GASKET

09168-06018

1
Out of stock

22

COVER,ENG SPROCKET

11361-01H00

1
Out of stock

23

PIN

04211-09129

2
Out of stock

24

BOLT (6X45)

09103-06224

2
Out of stock

25

BOLT (6X65)

09103-06239

2
Out of stock

26

BOLT (6X75)

09103-06257

1
Out of stock
