2007 Suzuki GSX-R600 CAM Chain Diagram

← All diagrams

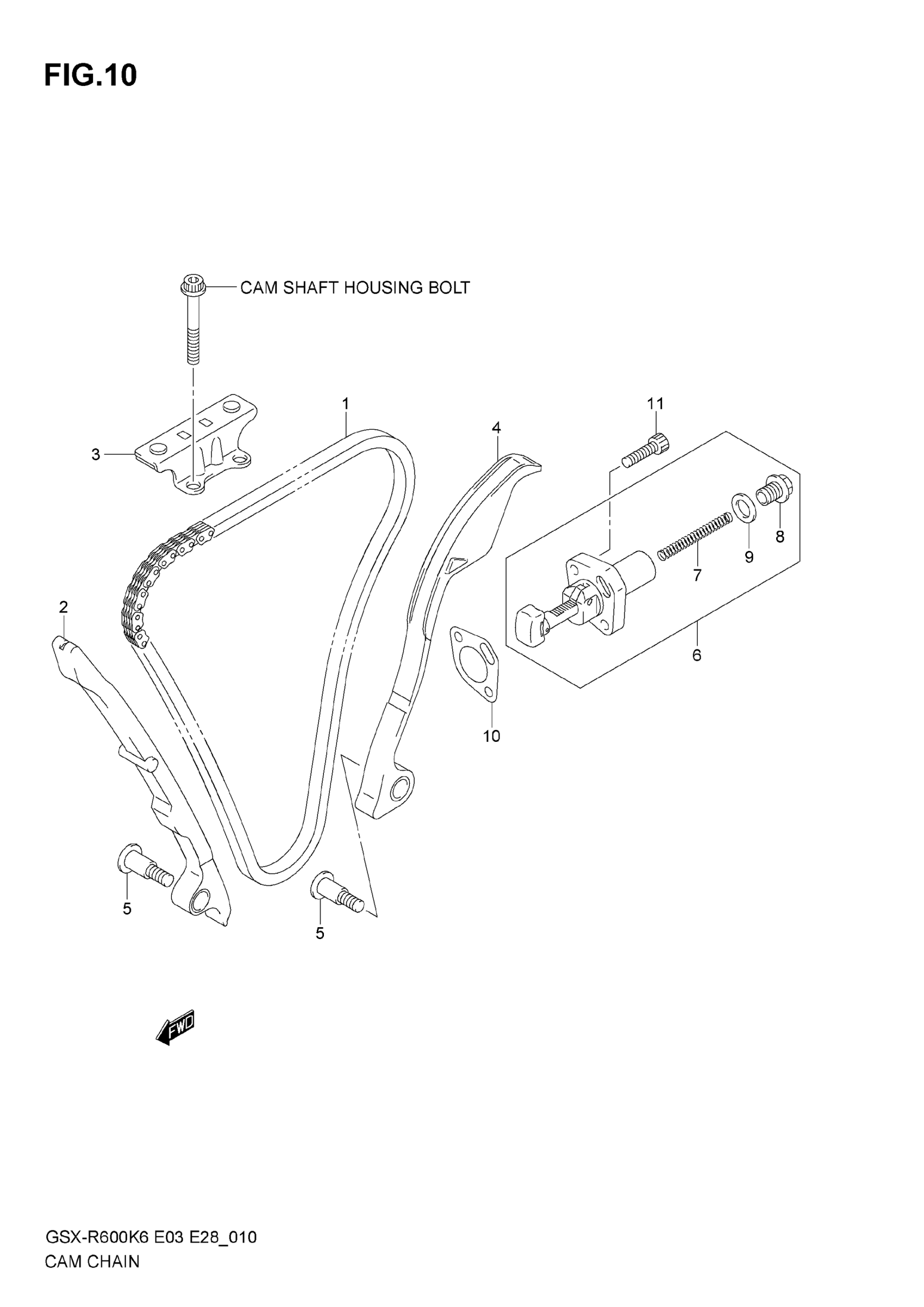

Find the part on the CAM Chain diagram for your 2007 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki GSX-R600 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAMSHAFT DRIVE

12760-39F00

1
Out of stock

2

GUIDE,CAM CHAIN This part replaces 12771-01H00.

12771-01H01

1
Out of stock

3

GUIDE,CAM CHAIN NO.2

12782-29G00

1
Out of stock

4

TENSIONER,CAM C This part replaces 12811-01H00.

12811-01H01

1
Out of stock

5

BOLT This part replaces 12812-31G00-A05.

12812-31G00

2
Out of stock

6

ADJUSTER ASSY, TENSIONER | Includes Item(s) 7 - 9

12830-44G00

1
Out of stock

7

SPRING

12831-39F00

1
Out of stock

8

PLUG

12833-05A00

1
Out of stock

9

GASKET

12837-24F10

1
Out of stock

10

GASKET, ADJUSTER

12837-18G00

1
Out of stock

11

BOLT (6X25)

07130-0625A

2
Out of stock
CAM Shaft - Valve →
