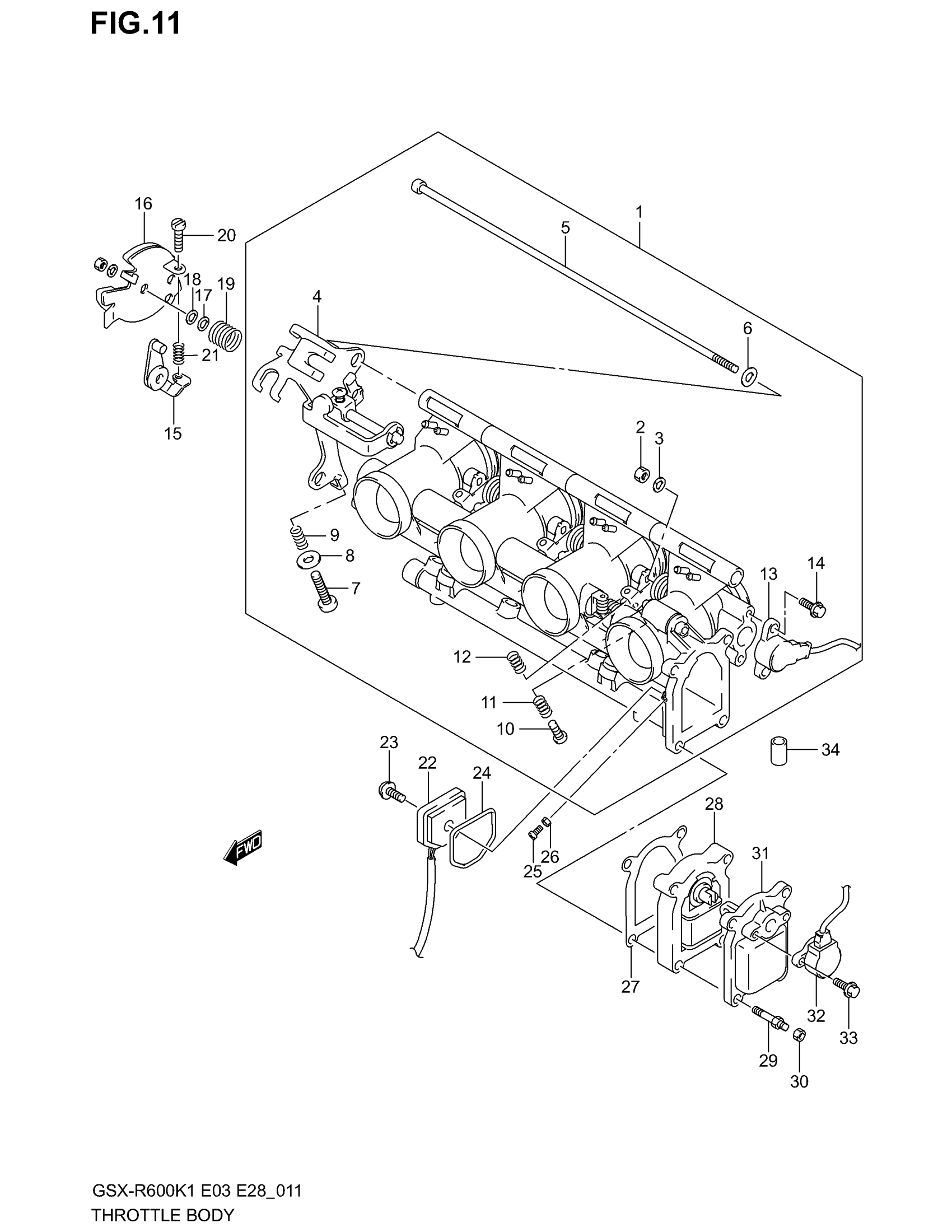

Find the part on the Throttle Body diagram for your 2003 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki GSX-R600 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

13405-39F01

1
Out of stock

1

THROTTLE BODY ASSY | E33; Includes Item(s) 2 - 14

13405-39F11

1
Out of stock

2

NUT

13586-13626

5
Out of stock

3

LOCK WASHER

13614-39F00

5
Out of stock

4

BRACKET ASSY

13620-39F00

1
Out of stock

5

BOLT

13613-33E00

2
Out of stock

6

WASHER

13615-39F00

2
Out of stock

7

ADJUST SCREW

13267-20E20

1
Out of stock

8

PACKING

13386-09410

1
Out of stock

9

SPRING

13375-60A00

1
Out of stock

10

SCREW

13267-44B00

4
Out of stock

11

SPRING

13271-44B00

4
Out of stock

12

SPRING

13268-96111

4
Out of stock

13

SENSOR ASSY This part replaces 13580-26F00.

13580-26F01

1
Out of stock

14

SCREW

13605-39F00

2
Out of stock

15

LEVER

13413-39F00

1
Out of stock

16

THROTTLE LEVER ASSY

13540-39F00

1
Out of stock

17

WASHER

13332-39F00

1
Out of stock

18

WASHER

13615-39F10

1
Out of stock

19

SPRING

13573-39F00

1
Out of stock

20

SCREW This part replaces 02112-04203.

02112-0420A

1
Out of stock

21

SPRING

13601-60AT0

1
Out of stock

22

HARNESS ASSY

13477-39F00

1
Out of stock

23

SCREW This part replaces 02112-34163.

02112-3416B

1
Out of stock

24

SEAL

13673-39F20

1
Out of stock

25

SCREW

13605-39F10

1
Out of stock

26

NUT

13607-39F10

1
Out of stock

27

GASKET

13673-39F10

1
Out of stock

28

YOKE ASSY

13472-39F00

1
Out of stock

29

BOLT

13613-39F00

4
Out of stock

30

NUT

13607-39F00

4
Out of stock

31

COVER ASSY

13311-39F00

1
Out of stock

32

SENSOR ASSY This part replaces 13580-39F00.

13580-39F01

1
Out of stock

33

SCREW

13605-39F00

2
Out of stock

34

HOSE

13683-39F10

1
Out of stock
