2003 Suzuki GSX-R600 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2003 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

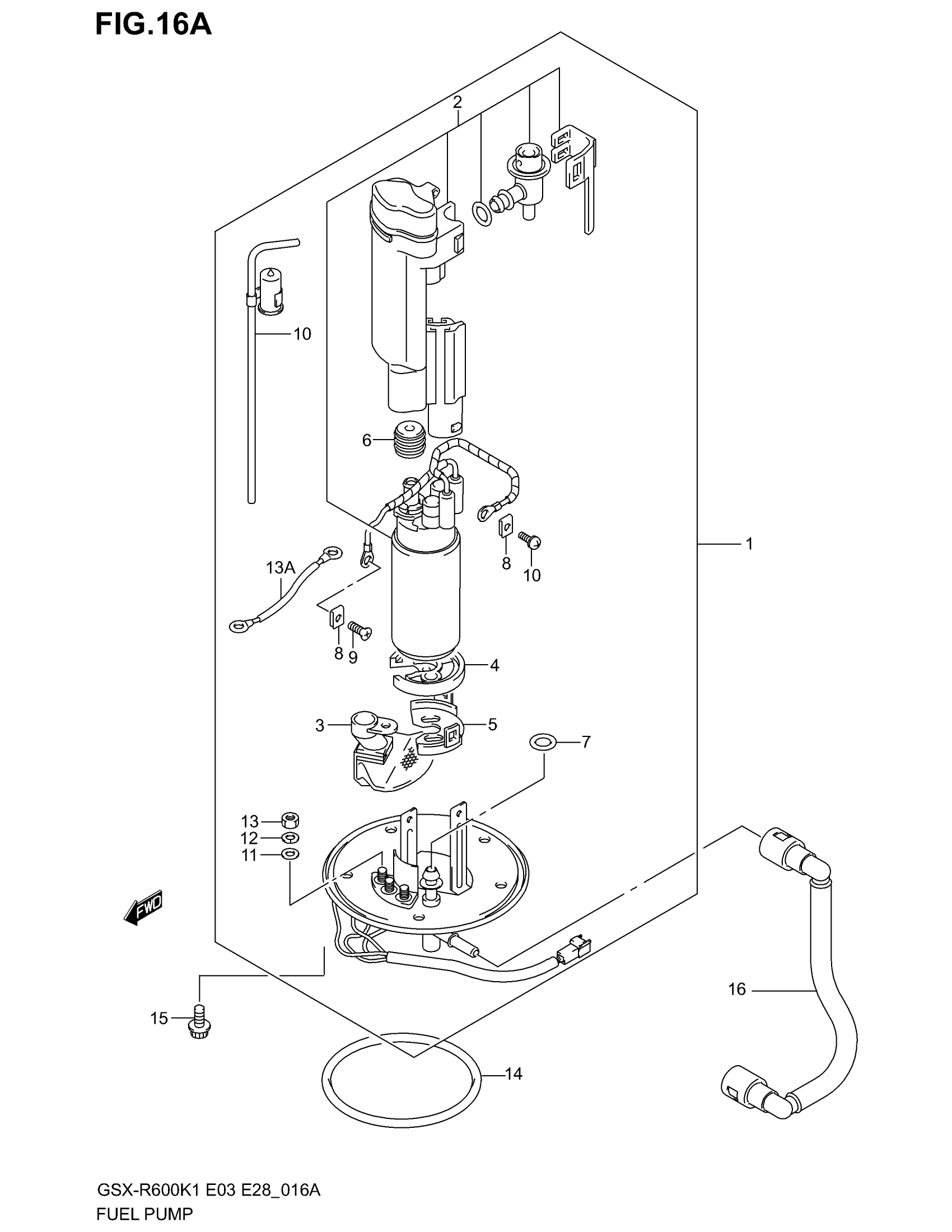

2003 Suzuki GSX-R600 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, FUEL | Includes Item(s) 2 - 13A

15100-35F10

1
Out of stock

2

FILTER ASSY, FUEL

15410-42F00

1
Out of stock

3

STRAINER, FUEL PUMP

15420-35F01

1
Out of stock

4

CUSHION, FUEL PUMP

15111-35F00

1
Out of stock

5

HOLDER, FUEL PUMP

15112-42F00

1
Out of stock

6

BUSH, FUEL PUMP

15114-35F00

1
Out of stock

7

O RING

15113-35F00

1
Out of stock

8

NUT

15115-35F00

2
Out of stock

9

SCREW

15116-35F10

2
Out of stock

10

THERMISTOR

15170-35F10

1
Out of stock

11

WASHER

15171-35F00

3
Out of stock

12

SPRING WASHER

15172-35F00

3
Out of stock

13

NUT

15173-35F00

3
Out of stock

13A

WIRE

15119-35F10

1
Out of stock

14

O-RING

15201-35F00

1
Out of stock

15

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

5
Out of stock

16

HOSE, FUEL

15810-35F00

1
Out of stock
