2003 Suzuki GSX-R600 AIR Cleaner Diagram

← All diagrams

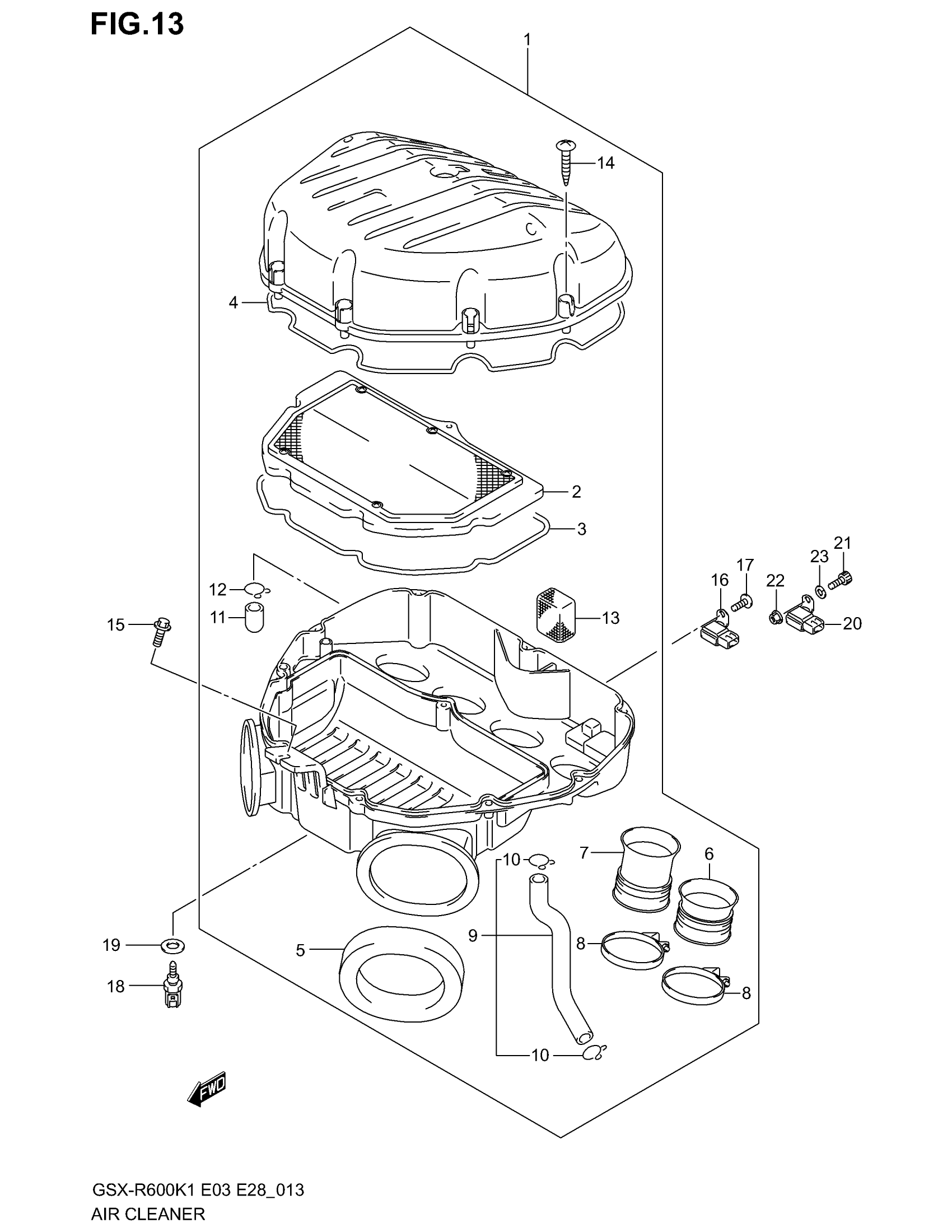

Find the part on the AIR Cleaner diagram for your 2003 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki GSX-R600 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 14

13700-39F00

1
Out of stock

2

FILTER ASSY

13780-35F00

1
Out of stock

3

GASKET, CASE

13756-35F00

1
Out of stock

4

GASKET, CAP

13746-35F00

1
Out of stock

5

.CUSHION, DUCT This part replaces 13736-24F01.

13736-01H00

2
Out of stock

6

TUBE, OUTLET,LH/RH

13881-39F00

2
Out of stock

7

TUBE, OUTLET,ML/MR

13882-39F00

2
Out of stock

8

CLAMP

09402-52208

4
Out of stock

9

TUBE, BREATHER This part replaces 13850-39F00.

13850-39F01

1
Out of stock

10

CLIP

09401-14301

2
Out of stock

11

.PLUG

13859-41B10

1
Out of stock

12

CLIP

09401-14301

1
Out of stock

13

FILTER, BREATHER

13788-24F00

1
Out of stock

14

.SCREW

13831-35F00

10
Out of stock

15

BOLT

09116-06130

1
Out of stock

16

SENSOR, BOOST | (IAPS)

15620-35F00

1
Out of stock

17

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

1
Out of stock

18

SENSOR, AIR TEMPERATURE | (IATS)

13650-61B00

1
Out of stock

19

GASKET

09168-12017

1
Out of stock

20

SENSOR, AIR PRESSURE | (APS)

15620-35F00

1
Out of stock

21

BOLT This part replaces 07130-06163.

07130-0616B

1
Out of stock

22

NUT This part replaces 08319-31063.

08319-3106A

1
Out of stock

23

WASHER

09160-06077

1
Out of stock
