2003 Suzuki GSX-R600 Starting Motor Diagram

← All diagrams

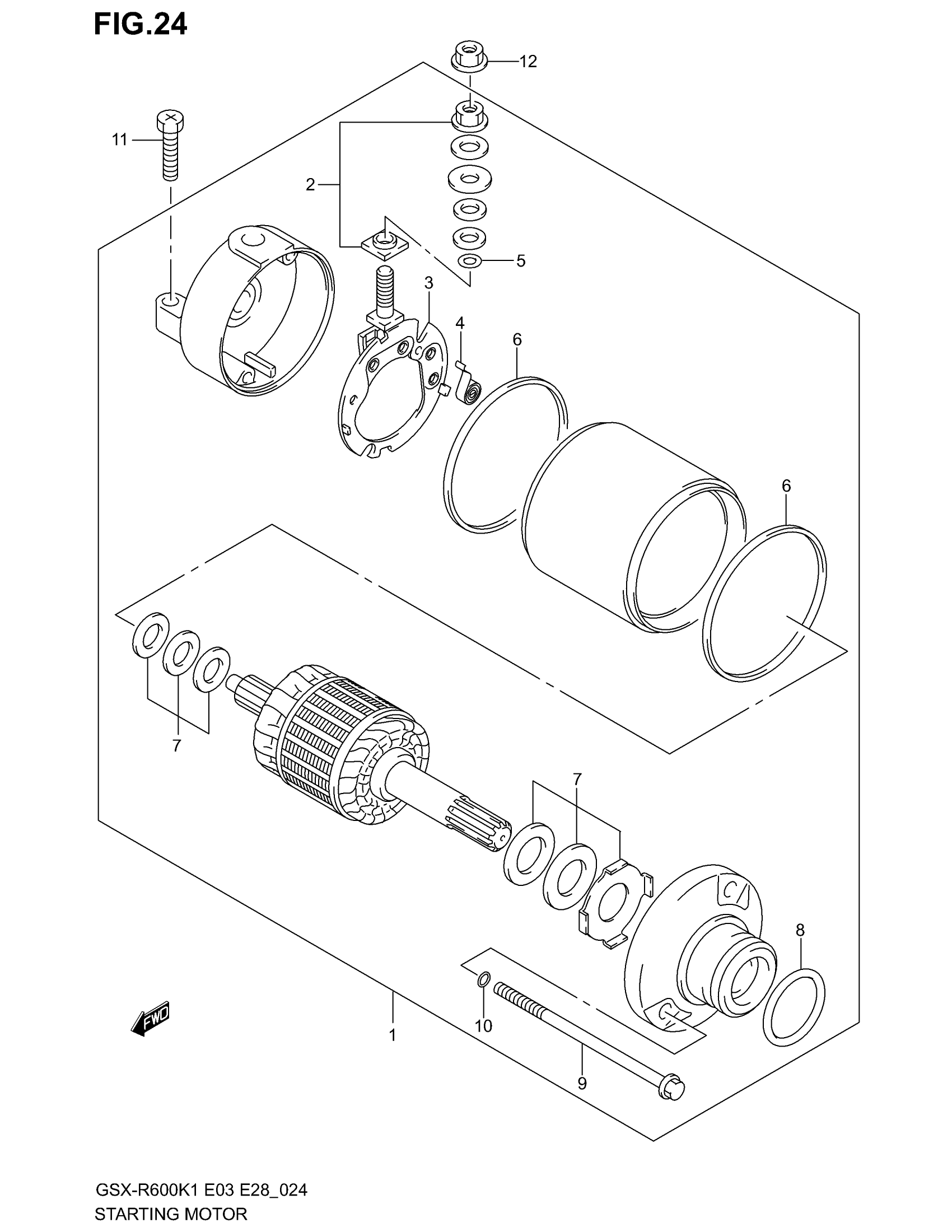

Find the part on the Starting Motor diagram for your 2003 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki GSX-R600 Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY,STAR | Includes Item(s) 2 - 10 This part replaces 31100-35F00.

31100-35F90

1
Out of stock

2

BRUSH TERMINAL SET

31130-13E00

1
Out of stock

3

BRUSH HOLDER SET

31132-33E00

1

$75.70

In stock

4

SPRING, BRUSH

31135-31300

2
Out of stock

5

O RING

31143-49040

1
Out of stock

6

O RING

31264-13E00

2
Out of stock

7

WASHER SET

31170-19B10

1
Out of stock

8

2

$2.16

In stock

9

BOLT

31280-13E00

2
Out of stock

10

O RING

31156-13E00

2
Out of stock

11

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

2
Out of stock

12

NUT This part replaces 08361-35068.

08361-3506A

1
Out of stock
