2003 Suzuki GSX-R600 Signal Generator Diagram

← All diagrams

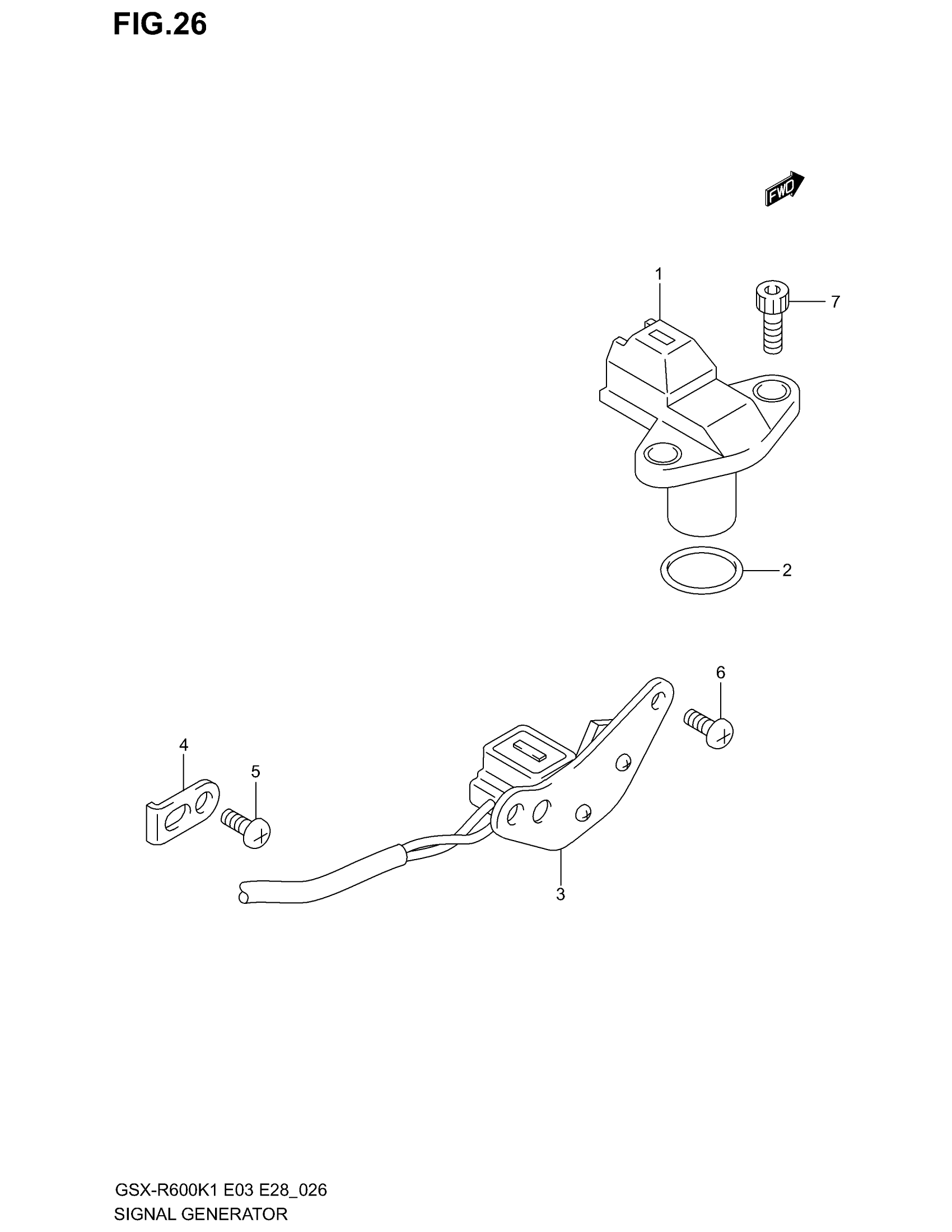

Find the part on the Signal Generator diagram for your 2003 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki GSX-R600 Signal Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SENSOR ASSY, CAM POSITION | MODEL K1

32160-02F00

1
Out of stock

1

SENSOR ASSY, CAM POSITION | MODEL K2/K3; Includes Item(s) 2

32160-02F10

1
Out of stock

2

PACKING

32161-02F00

1
Out of stock

3

STATOR,SIGNAL GENERATOR This part replaces 33110-35F00.

33110-35F01

1
Out of stock

4

CLAMP, SIGNAL GENERATOR

33115-33E00

1
Out of stock

5

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

1
Out of stock

6

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

2
Out of stock

7

BOLT This part replaces 07130-06163.

07130-0616B

2
Out of stock
